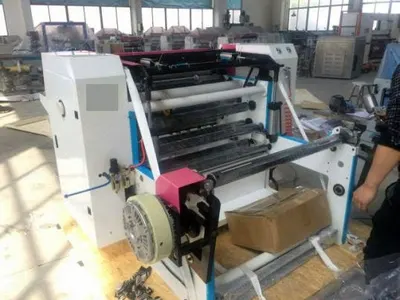

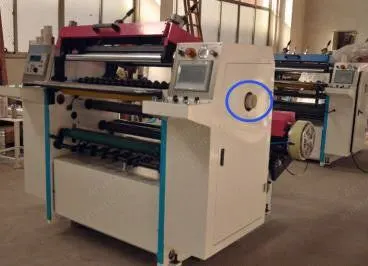

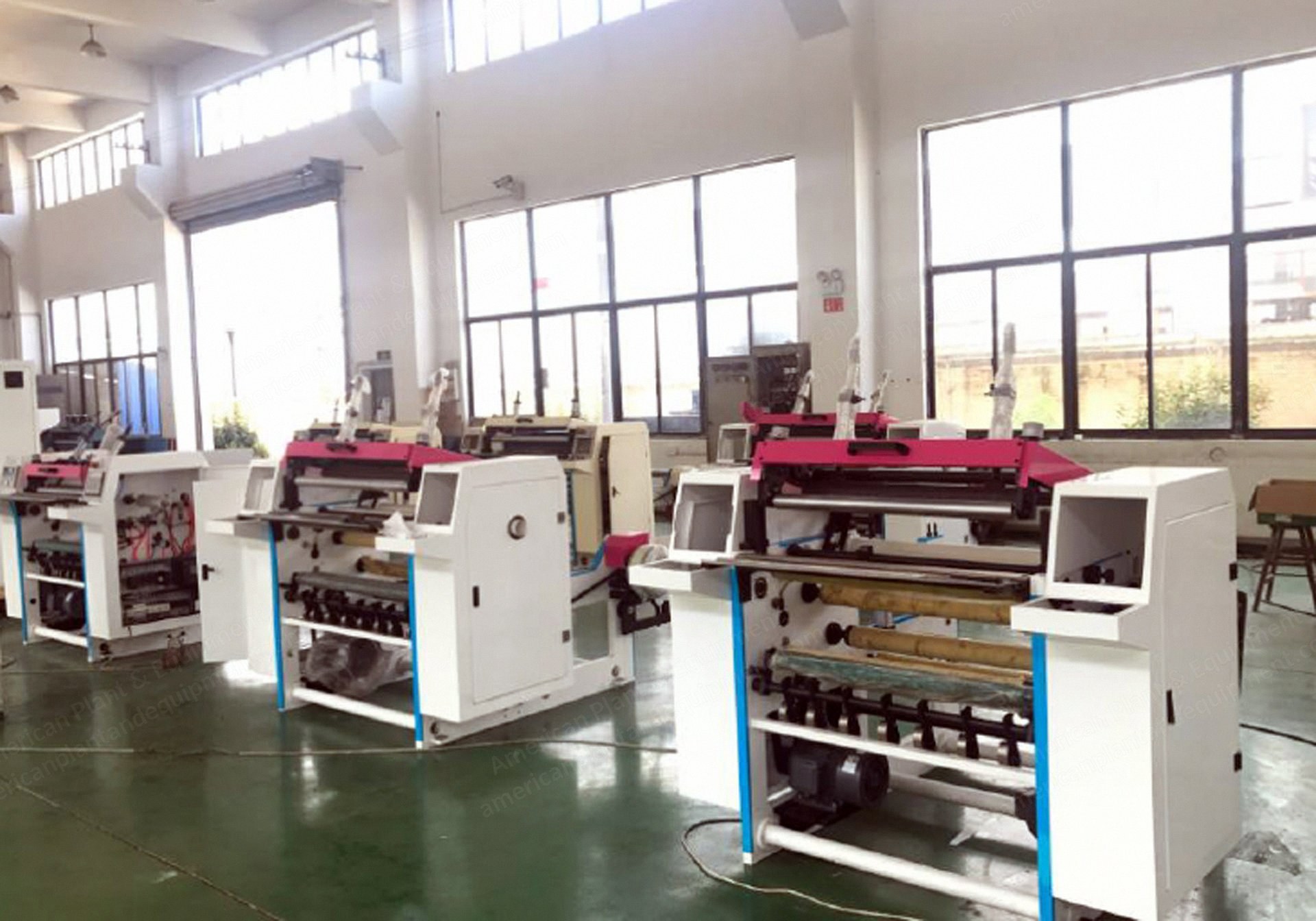

NovaStar, SR231, Thermal Paper Slitter and Rewinder, 700mm Max Web Width, 110 m/min, Siemens PLC (New)

NovaStar, SR231, Thermal Paper Slitter and Rewinder, 700mm Max Web Width, 110 m/min, Siemens PLC

Description

  1. Overview
  2. Technical Specifications
    1. Max. parent web width: 700 mm
    2. Max. parent web diameter: 1000 mm
    3. Max. rewinding diameter: 160 mm
    4. Min. slit width: 25 mm
    5. Max. machine speed: 110 m/min
    6. Unwinding shaft: 3” air expanding shaft
    7. Rewinding shaft: 0.5”, 1”, 1.5”, 2” are available (or as request)
    8. Voltage: three-phase four-wire, 480 V, 60 Hz
    9. Power: 2.9 kW
    10. Weight: 1100 kg
    11. Overall dimensions (L x W x H): 1900 x 1900 x 1500 mm
  3. Main Features
    1. Machine adopts Siemens PLC control system and touch screen; all parameters are displayed on the monitor, and it will automatically work.
    2. The main motor adopts Siemens inverter motor and frequency inverter control.
    3. Machine adopts automatic lift-up loading system, controlled by a separated motor from Taiwan.
    4. All transmission rollers have been dynamic/static balance treated.
    5. Machine adopts red line marking system, printing red line at the end of paper rolls.
    6. Machine adopts round blades to slit; it is equipped with automatic wasting materials edge trimming system.
    7. It adopts auto tucker to adjust the paper material loose or tight easily.
    8. It adopts automatic tension control controller to keep constant tension.
    9. It adopts auto meter counter; when it reaches the setup length, the machine stops and alarms automatically.
    10. It can avoid overlap problem after paper reels are finished.
    11. It is equipped with emergency switch.
  4. Configuration
    1. Computer system: PLC + HMI, 1 set, Siemens from Germany
    2. Main motor: 1 set, Siemens from Germany
    3. Air pressure valve: 1 set, SMC from Japan
    4. Cylinder: 2 pieces, AirTAC from Taiwan
    5. Air expanding shaft: 1 piece
    6. Magnetic brake: 1 set, from Taiwan
    7. Low voltage electrical switch: Chint
    8. Relay: Omron from Japan
  5. Application Material
  6. Unwinding Section
    1. 3” (76 mm) air expanding shaft
    2. Automatic lift-up loading system
    3. RE brake from Italy
    4. Chain link automatic lift-up loading system
    5. Two set sensor
    6. Guide and slide AMT from Taiwan
  7. Slitting Section
    1. Disc cutter assembly adopts the cam self-locking
    2. Cutter with adjustable and moveable blade base
    3. Meter counter
  8. Rewinding Section
    1. 0.5”, 1”, 1.5”, 2” are available
    2. Pressure roller
    3. Auto tucker
  9. Controlling Section
    1. Siemens PLC and HMI from Germany
    2. All parameters are displayed on the monitor
  10. Tension Control Section
    1. Automatic tension controller system to control constant tension
  11. Trimmed Waste

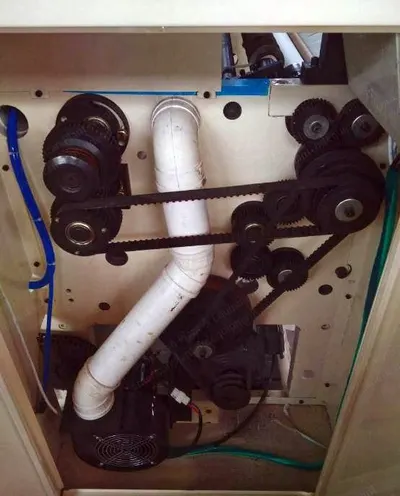

    1. Edge waste blower with expulsion tube
