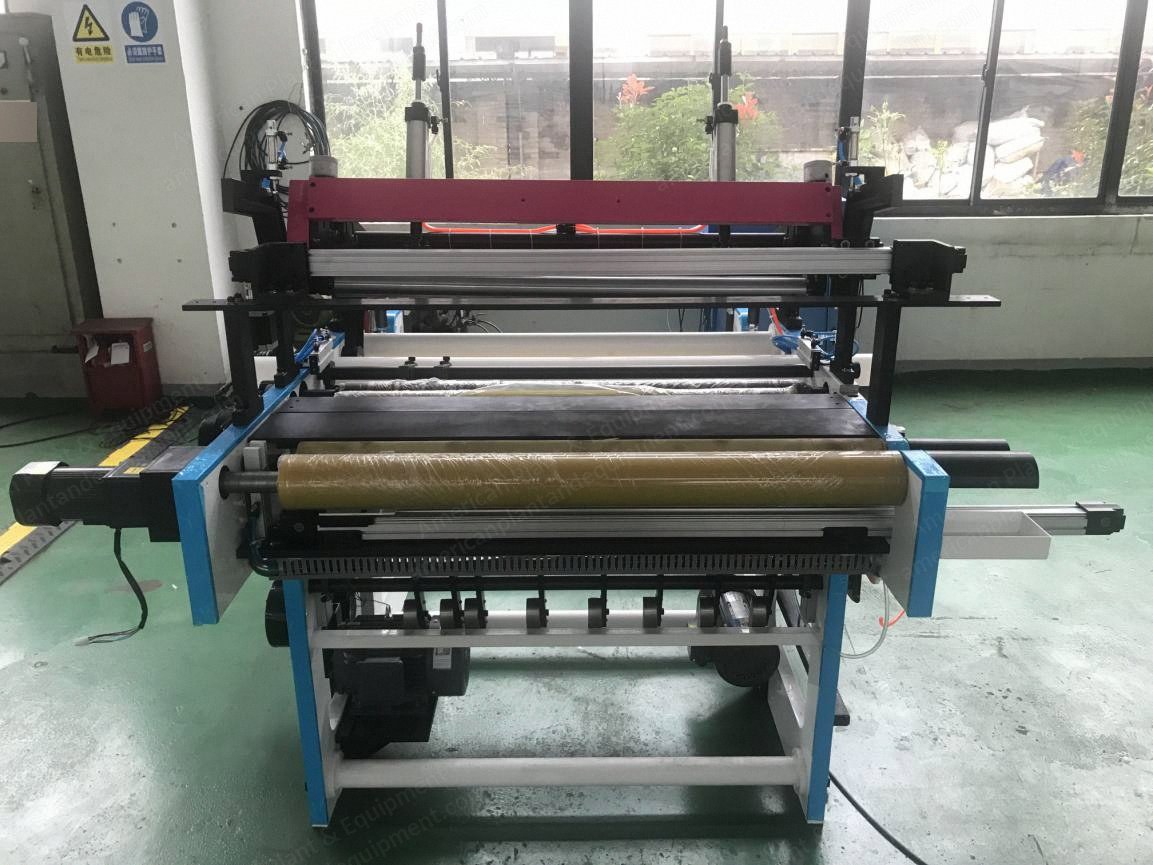

NovaStar, SR232, Thermal Paper Slitting & Packing Machine, 900mm Web Width, 300m/min (New)

NovaStar, SR232, Thermal Paper Slitting & Packing Machine, 900mm Web Width, 300m/min

Description

  1. Overview
  2. Specifications
    1. Max. parent web width: 900 mm
    2. Max. parent web diameter: 1000 mm
    3. Max. rewinding diameter: 160 mm
    4. Min. slit width: 25 mm
    5. Max. machine speed: 300 m/min
    6. Unwinding shaft: 3” air expanding shaft
    7. Rewinding shaft: 0.5”, 1” are available (or as request)
    8. Voltage: three-phase four-wire, 480 V, 60 Hz
    9. Torque: 50 N.m
    10. Power: 20 kW
    11. Weight: 2100 kg
    12. Overall dimensions (L*W*H): 5212 x 2025 x 1680 mm
  3. Main Features
    1. Machine has Siemens PLC control system and touch screen; all parameters are displayed on the monitor, and it will automatically work.
    2. The main motor has Siemens inverter motor and frequency inverter control.
    3. Machine adopts automatic glue and cutting device.
    4. Machine has automatic lift-up loading system, using separate cylinder control locking the shaft.
    5. All transmission rollers have been dynamic/static balance treated.
    6. Machine has red line marking system, printing red line at the end of paper rolls.
    7. Machine has round blades to slit; it is equipped with automatic wasting materials edge trimming system.
    8. It has auto tucker, adjust the paper material loose or tight easily.
    9. It has automatic tension control controller to keep constant tension.
    10. It has auto meter counter; when it reaches the set-up length, the machine stops and alarms automatically.
    11. It can avoid overlap problem after paper reels are finished.
    12. It is equipped with emergency switch.
  4. Configuration
    1. Computer system: PLC + HMI, 1 set, Siemens from Germany
    2. Main motor: 1 set, Siemens from Germany
    3. Air pressure valve: 1 set, SMC from Japan
    4. Cylinder: 2 pieces, AirTAC from Taiwan
    5. Air expanding shaft: 1 piece
    6. Magnetic brake: 1 set, from Taiwan
    7. Low voltage electrical switch: Chint
    8. Relay: Omron from Japan
  5. Application Material

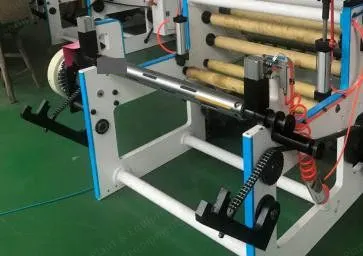

  6. Unwinding Section
    1. 3” (76 mm) air expanding shaft
    2. Chain link automatic lift-up loading system
    3. Cylinder locking the unwinding shaft
    4. RE brake from Italy
    5. Two set sensor
    6. Guide and slide AMT from Taiwan
  7. Slitting Section
    1. Disc cutter assembly adopts the cam self-locking
    2. Cutter with adjustable and moveable blade base
    3. Meter counter
  8. Rewinding Section
    1. 0.5”, 1”, 1.5”, 2” are available
    2. Pressure roller
    3. Auto tucker
  9. Controlling Section
    1. Siemens PLC and HMI from Germany
    2. All parameters are displayed on the monitor
  10. Tension Control Section
    1. Automatic tension controller system to control constant tension
  11. Trimmed Waste
    1. Edge waste blower with expulsion tube
  12. Red Line Mark System
    1. Marking red line
