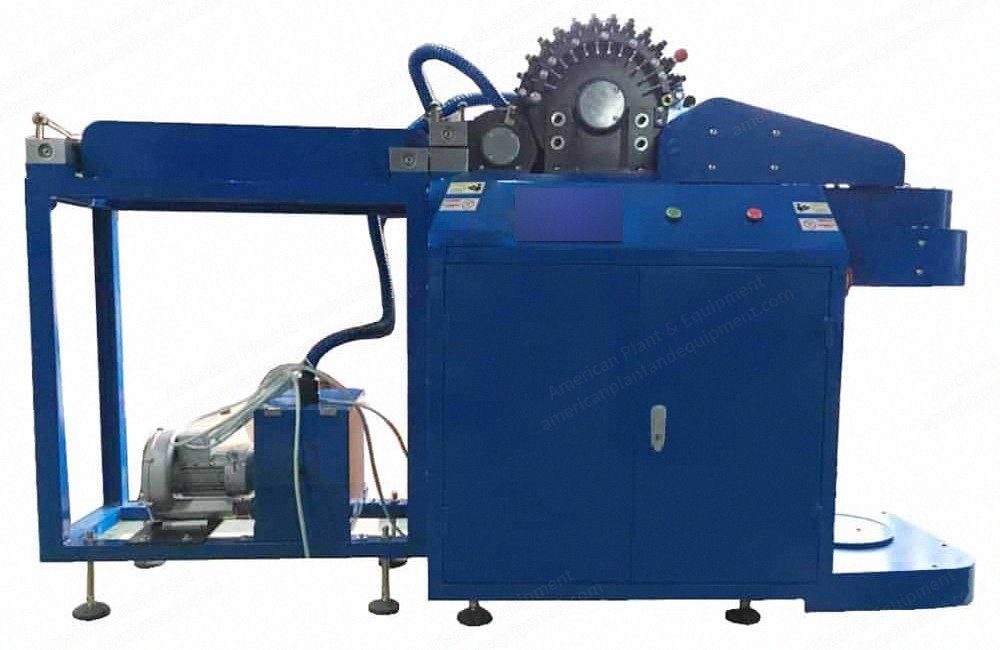

Mini carding machine is used to comb loose fiber cleaned and opened through the previous opener to produce sliver in lab.
It mainly consists of cotton feeding, carding, stripping and coiling and bottom material collecting devices.
The main function of the cotton feeding and the licker-in section is to feed the cotton layer into the machine, hold the cotton layer, and remove impurities and short fibers.
The fibers that had been preliminarily combed by the licker-in roll are further carefully combed between the cover plates and cylinder to remove some finer impurities and short fibers.
Doffer condenses the combed fibers into a fiber layer.
Uniform and mix effects are achieved during the carding and coagulation process.
The function of the stripping device is to strip the fiber layer condensed on the surface of the doffer to make the cotton web.
The function of the coiling device is to take the sliver output from the stripping rollers, pull it through small pressure rollers, press it tightly, and then pass through the coiler to the can.
Specifications
Width: 260 mm
Length of suitable fiber: 22 to 42 mm
Feed volume: about 0.25-0.6 kg per hour
Feed roller diameter: Φ57 mm
Speed: 0.281-0.478 rpm
Diameter of doffer: Φ160 mm
Speed of doffer: 260.4-885.4 rpm
Diameter of cylinder: Φ300 mm
Speed of cylinder: 500 to 850 rpm
Number of cover plates: 12
Can size: Φ250 x 550 mm
Power supply: AC 220 V 50 Hz, 1200 W
Dimension: 2100 × 800 × 1300 mm (L×W×H)
Package dimension: 2200 × 900 × 1550 mm (L×W×H)
Weight: 500 kg
Control
Touch screen + PLC
High-efficiency imported frequency converter, PLC and touch screen
Use touch screen as man-machine interface, digitally select test parameters, such as cylinder and doffer speed, output speed and feeding speed conveniently and show machine run state on the touch screen
Features
Mini-type design, easy to clean, set and maintain
