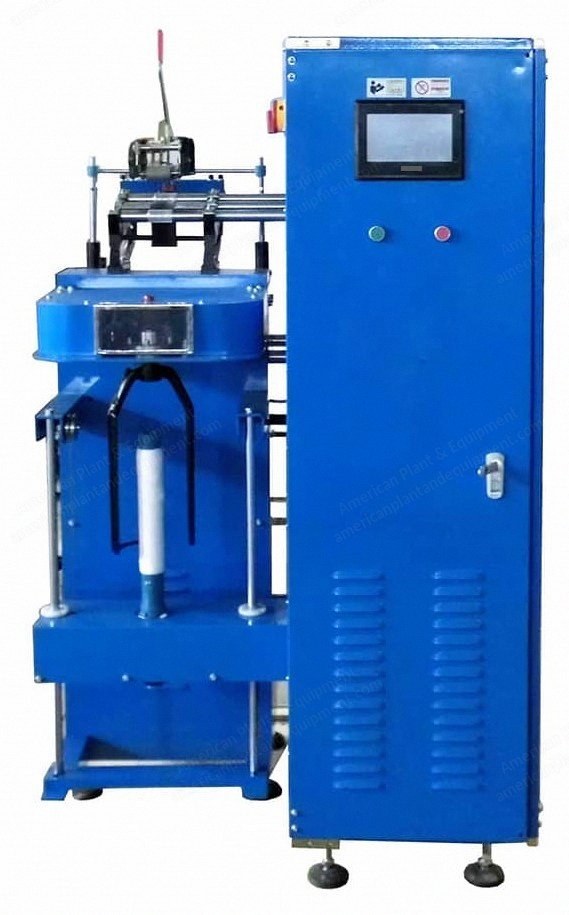

Lab roving frame is the ideal equipment for teaching and researching as it accurately simulates actual production conditions and produce roving of consistently high quality.
The loose fiber strand or fiber assembly and the assembly of single yarn and monofilament are drafted and twisted to make them certain structure and form, possessing certain physical-mechanical properties and apparent structure, in order to adapt to the processing and storage of the next process.
Specifications
Control method: touch screen + PLC
Spindle number: 2
Suitable fiber length: 22 to 42 mm
Draft multiple: approx. 2 to 50
Twist range: 50 to 250 twist/m
Rotation speed of flyer: 600 rpm
Roller size: Φ28/25/28 mm
Output: approx. 0.25-1 kg/h
Power: 1.0 kW
Power supply: AC 220 V 50 Hz
Dimension: 1000 × 800 × 1600 mm (L×W×H)
Features
Use touch screen as man-machine interface, digitally set test parameters, such as rotation speed of spindle, draft ratio, twist direction (S/Z), etc., conveniently and show machine run state on the touch screen.
The winding layer is presettable, the machine thus stops automatically when the preset layer is completed.
The bobbins can be installed or removed easily.
Mini-type design, easy to clean and maintain.
