NovaStar, TL157, Lab Melt Spinning Machine, 400C Max Temp, 125 to 750 Denier
Scroll to zoom
100%
Description
Overview
Rotary winding system with roller (drive ratio: 2:1)
Adjustable speed: 0 to 2800 r/min
Wrapping post capacity: 120 mm width
Maximum diameter of post: 320 mm
Denier range: 125 to 750
Specifications
Total power: 3 kW
High precision temperature sensor with controlling accuracy ±0.5 °C
Highest heating temperature: 400 °C
Outside dimension: 600 × 600 × 1500 mm (L × W × H)

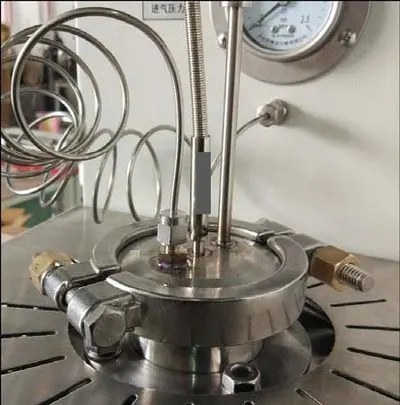

Heating and Extrusion Process
The polymer is heated and melted by a three-stage cast copper heating ring, and the gas is compressed to protect the gas continuously and quantitatively.
It is extruded evenly from the capillary pores of the spinneret and becomes a liquid stream, then forming the primary fiber under the condensation of air.
Features
With a see-through organic glass door, convenient for observation.
The feed cylinder is made of thickened 316 stainless steel, making heating more uniform.
The temperature of material is monitored in real time, with highest heating temperature up to 400 °C and accurate controlling accuracy of ±0.5 °C.
Extensible structure, can add melt pump, mixing function, etc.
