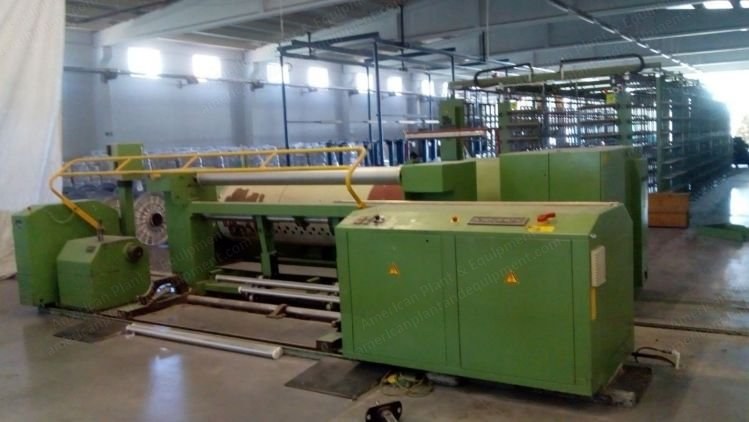

Karl Mayer, Erg-O-Matic, 1998, Sectional Warping Machine, Working Width 2200mm, Max Beam Flanges 1000mm, Warp Creel Type H, 704 Ends

Karl Mayer, Erg-O-Matic, 1998, Sectional Warping Machine, Working Width 2200mm, Max Beam Flanges 1000mm, Warp Creel Type H, 704 Ends

Description

  1. Overview
    1. Brand: Karl Mayer
    2. Type: Erg-O-Matic
    3. Category: Warping machines
    4. Year: 1998
  2. Specifications
    1. Working width: 2200 mm
    2. Max. beam flanges: 1000 mm
    3. Hydraulic disk brake system fitted on the warping drum

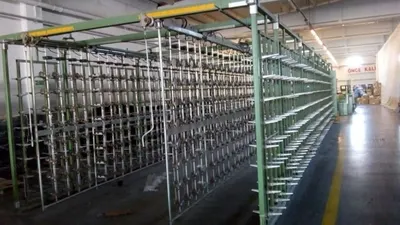

    4. Warp creel type H
    5. 704 ends
    6. Vertical pitch 280 x horizontal pitch 280
    7. Tensioner KFD-air
    8. Auto stop motion
