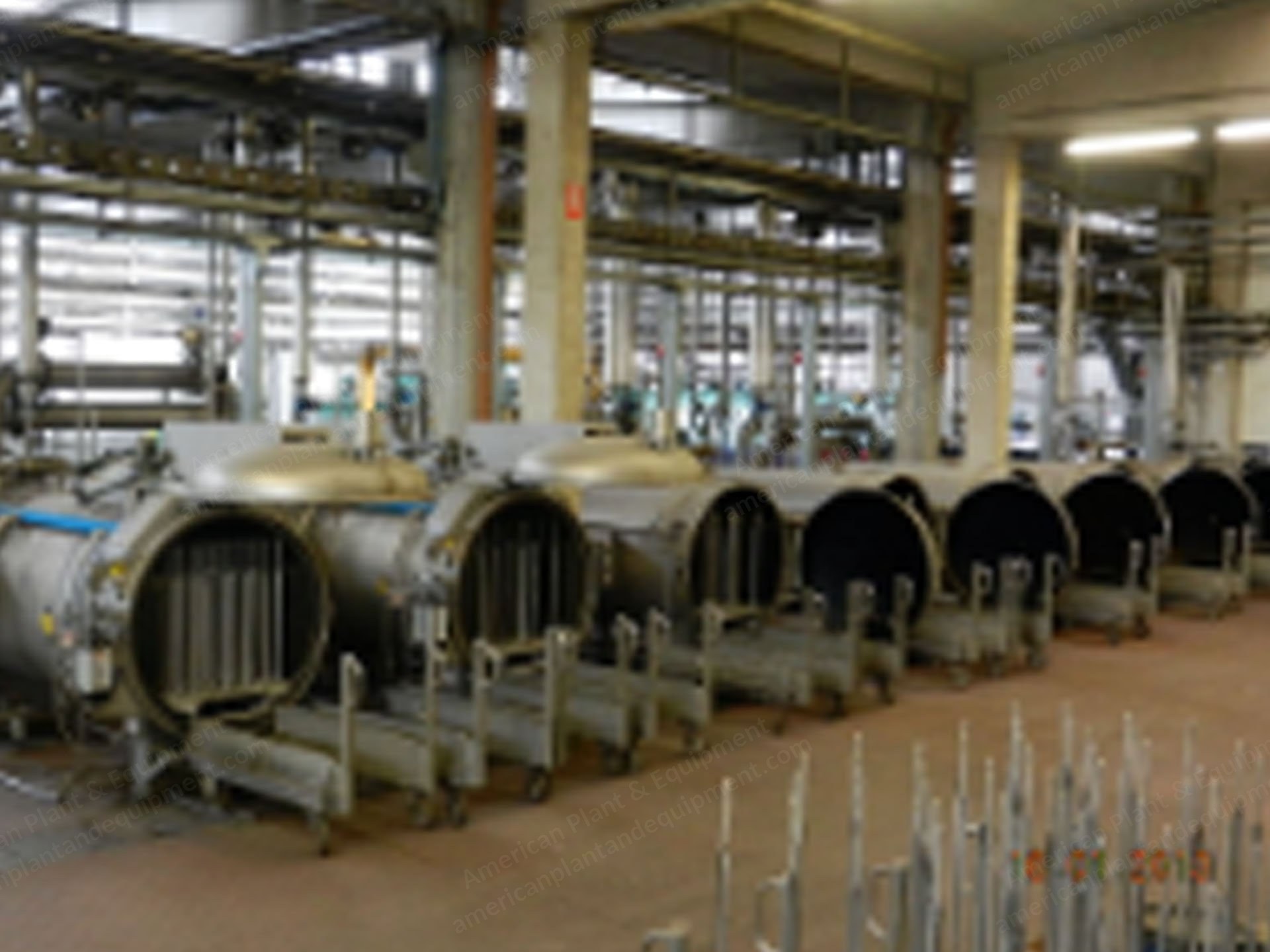

Flainox, Complete Yarn Dyeing Plant, 1988 to 2003, 10 to 18 Tons/Day Capacity, Horizontal Pressurized Machines

Flainox, Complete Yarn Dyeing Plant, 1988 to 2003, 10 to 18 Tons/Day Capacity, Horizontal Pressurized Machines

Description

  1. Overview

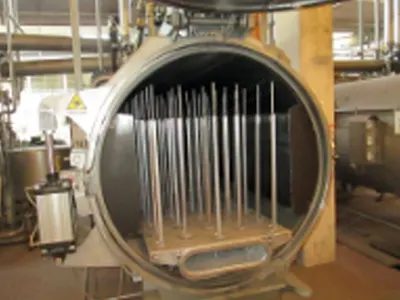

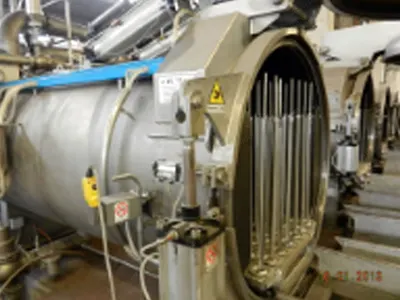

    1. Composed with horizontal pressurized machines for bleaching/dyeing of packages.
    2. Machines 3/4, 5/6, and 7/8 can work matched and dye 1200 kgs.
    3. Plant equipped with 53 trucks.
  2. Capacity
    1. Approximately 15 ton/day for polyester.
    2. Approximately 10 ton/day for cotton.
    3. Approximately 18 ton/day for acrylic.
  3. Circulation Pumps
    1. Pumps controlled by inverter.
    2. Bi-directional turbo-propeller axial pumps, reversible.
    3. Changing direction automatically with that of the motor, therefore does not require a reversing valve.
    4. Completely constructed in stainless steel AISI 316/L.
  4. Flainox Atr/Or/Ht Machines
    1. Item 001: Flainox ATR/OR/HT 100 kgs, year 1994.
    2. Item 002: Flainox ATR/OR/HT 250 kgs, year 1988.
    3. Item 003: Flainox ATR/OR/HT 600 kgs, year 1988.
    4. Item 004: Flainox ATR/OR/HT 600 kgs, year 1988.
    5. Item 005: Flainox ATR/OR/HT 600 kgs, year 1994.
    6. Item 006: Flainox ATR/OR/HT 600 kgs, year 1994.
    7. Item 007: Flainox ATR/OR/HT 600 kgs, year 2001.
    8. Item 008: Flainox ATR/OR/HT 600 kgs, year 2001.
  5. Other Machines

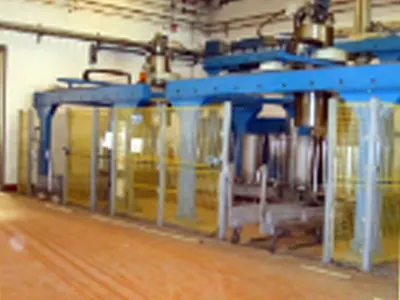

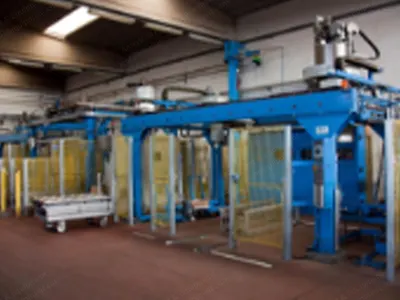

    1. Item 009: Load cone robot Galvanin RBT CRG, year 1991.
    2. Item 010: Automatic hydroextractor Dettin DT40, year 2002.
    3. Item 011: Automatic hydroextractor Galvanin RBT CSR, year 2002.
    4. Item 012: Dryer Dettin AR22.75, year 2003.
    5. Item 013: Dryer Dettin AR22.75, year 2003.
