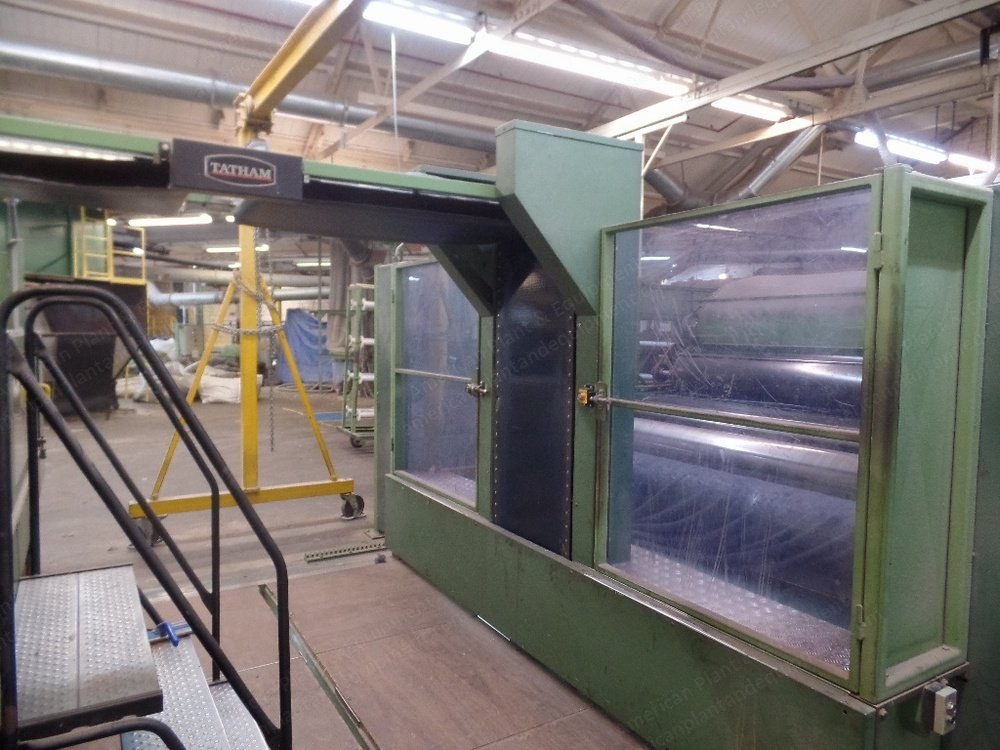

Tatham, Model 903, 1997, Intermediate Feed, 3000mm Working Width, Pull-Away Centre Draw

Tatham, Model 903, 1997, Intermediate Feed, 3000mm Working Width, Pull-Away Centre Draw

Description

  1. Overview
    1. Suitable for a 3000 mm woollen card supplied new in 1997
    2. Pull-away centre draw model 903
    3. Overhead arrangement with two transilon creepers
  2. Specifications
    1. Delivers the web from peralta via one short horizontal lattice with conveyors 400 mm wide
    2. Two pairs of upright lattices
    3. Split overhead arrangement to the special cross feed with conveyors 600 mm wide
    4. All parts supported on suitable framing mounted on slide rails for moving assembly away from peralta or scribbler card
    5. Photocell or sonic beam detection system positioned on top of machine to monitor or identify broken sliver prior to entry into the cross feed arrangement
    6. Cross feed model 803 utilising transilon lattice for plaiting the sliver onto the feed lattice of the finisher card
    7. Traverse width easily adjustable
    8. Conveyor widths 600 mm
  3. Condition
    1. Perspex guard door to side of cross feed to be hinged and provide easy access for sliver layering
    2. Photocell or sonic beam detection system positioned on top of machine to monitor or identify broken sliver prior to entry into the cross feed arrangement
