Broomwade, 6510-08, 1996, 6000F Compressor with Atlas Copco FD 560 Air Dryer and Air Tank, 8 Bar, 193.3 kW, Oil Free

Broomwade, 6510-08, 1996, 6000F Compressor with Atlas Copco FD 560 Air Dryer and Air Tank, 8 Bar, 193.3 kW, Oil Free

Description

  1. Overview
    1. Item 001: Broomwade 6000f compressor

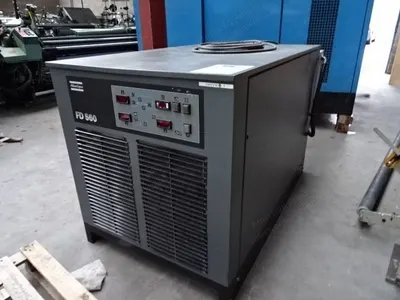

    2. Item 002: Atlas Copco Fd 560 air dryer

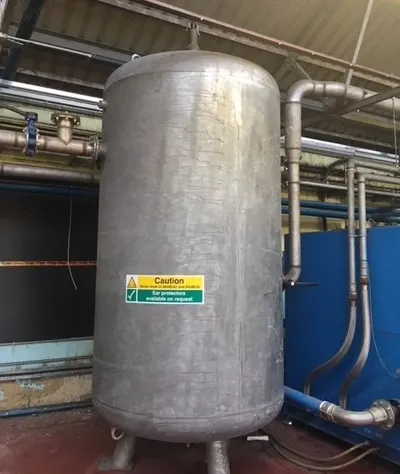

    3. Item 003: Atlas Copco air tank
  2. Compressor Specifications
    1. Manufacturer: Broomwade / Atlas Copco
    2. Model: 6510-08
    3. Year: 1996
    4. Max pressure: 8 bar
    5. Power: 193.3 kW
    6. Motor rpm: 2940
    7. Oil free
    8. Voltage: 415 V
    9. Sure scan panel
    10. Dimensions: 2600 x 2000 x 1850 mm
  3. Air Dryer Specifications
    1. Manufacturer: Atlas Copco
    2. Model: Fd 560
    3. Type: F0 560
    4. Year: 2004
    5. Compressed air max: 4.5 bar
    6. Temperature max: 60 °C, temperature min: 0 °C
    7. Ambient max: 50 °C
    8. Pressure max high: 29 bar, pressure max low: 26 bar
    9. Dimensions: 1750 x 920 x 1020 mm
    10. Imop electric box
  4. Air Tank Specifications
    1. Manufacturer: Lohenner GmbH
    2. Pressure max: 11 bar, pressure min: 0 bar
    3. Temperature max: 50 °C, temperature min: -10 °C
    4. Dimensions: diameter 1800 mm x height 4000 mm
