Two fat melters feed into a stainless steel jacketed fat tank of approximately 1250 litres.
A chocolate powder infeed hopper feeds into a screw elevator, then into a 1000 litre jacketed stainless steel pre-mixing tank with an agitator motor on top.
Both the fat tank and pre-mixer are connected to a pumping system that feeds from the pre-mixer into the ball mill.
After the ball mill, the processed chocolate is fed into another jacketed mixing vessel to keep the smooth chocolate turning over.
From the mixing vessel, chocolate is pumped into two 1250 litre jacketed stainless steel holding vessels, each with agitators.
These holding vessels feed two Neilsen enrobers.
List Of Machinery
Two fat melting vessels.
One stainless steel jacketed fat tank, approximately 1250 litres.

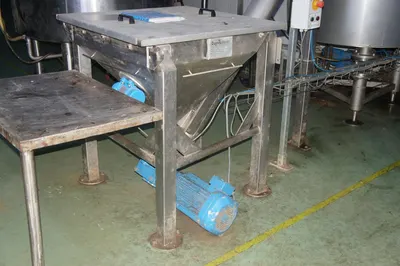

One floor standing chocolate paste/powder hopper with lid, connected to a screw raiser conveyor.

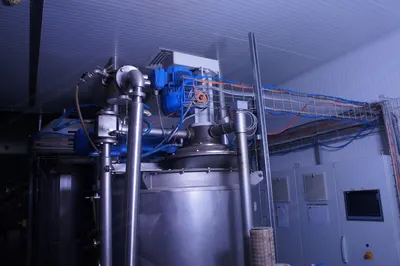

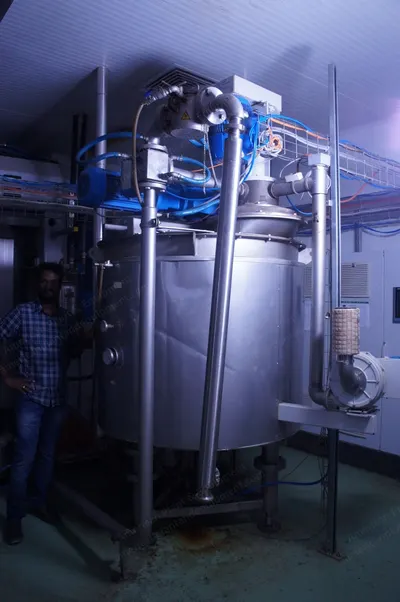

One stainless steel chocolate pre-mixer, approximately 1000 litres capacity, with heavy motor atop.

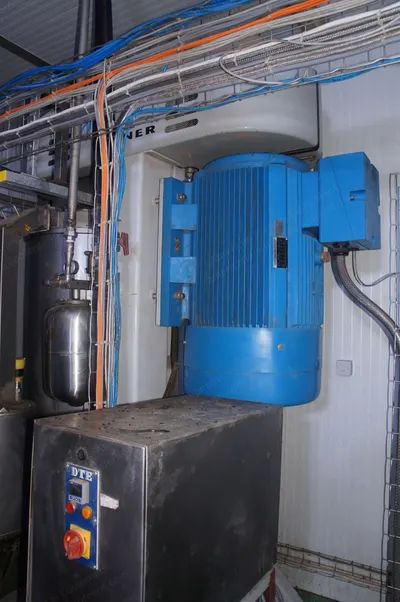

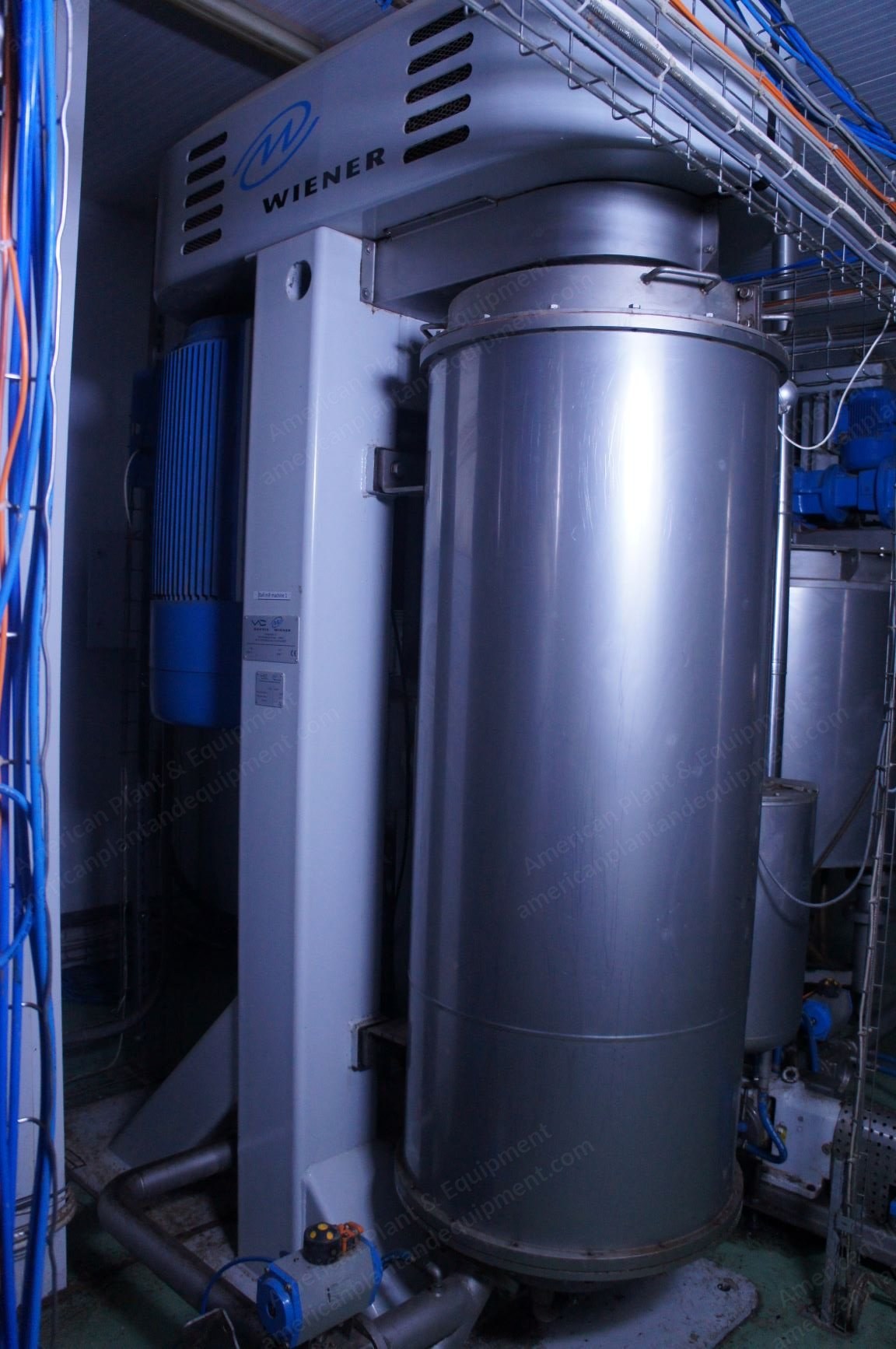

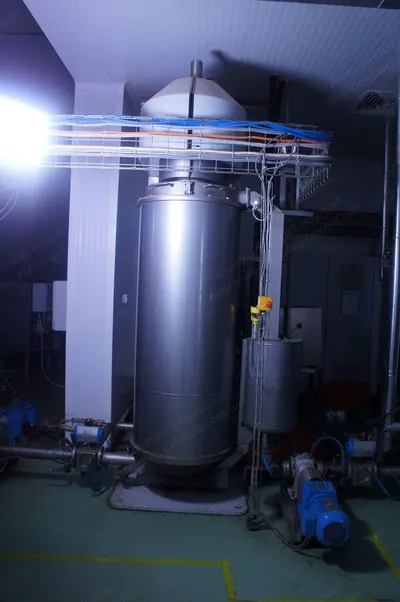

Duyvis Werner Wiecon 50 ball mill for compounds, spreads and fillings.

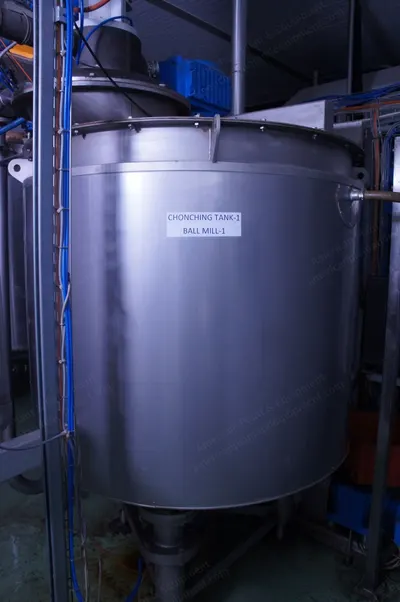

One stainless steel jacketed holding tank/pre-mixer, approximately 1000 litres capacity.

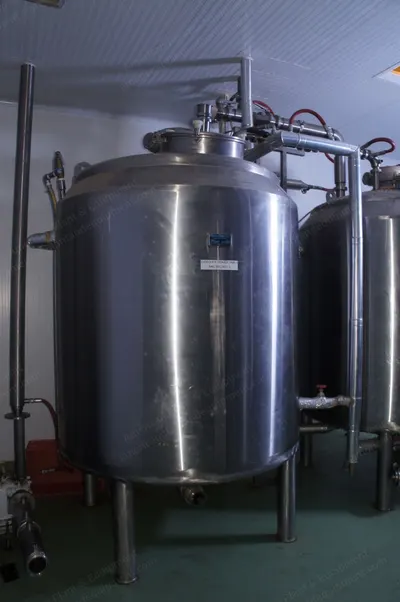

Two stainless steel jacketed holding tanks with inspection lids on top.

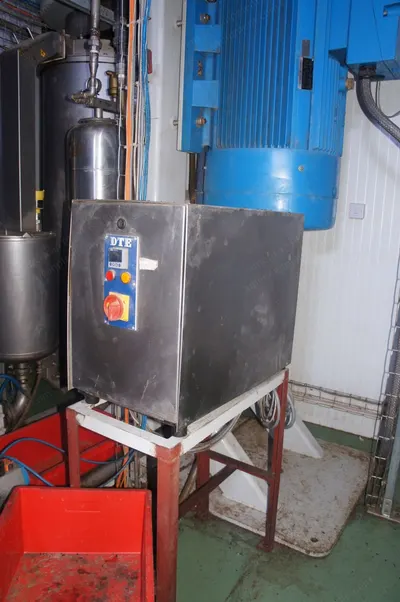

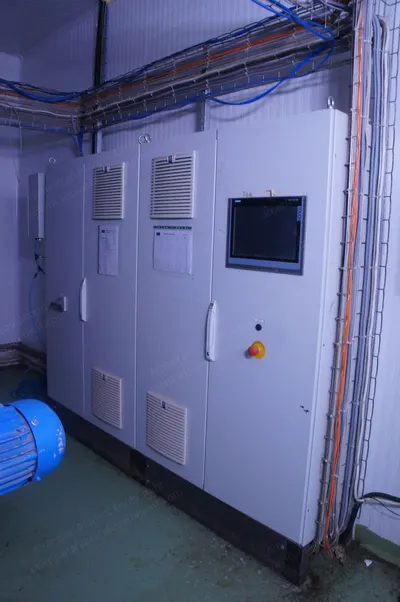

One electronic control panel.

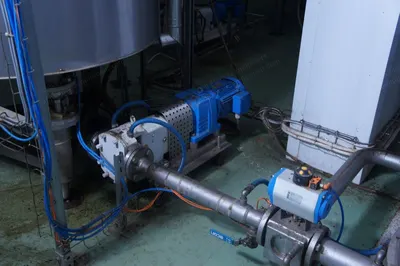

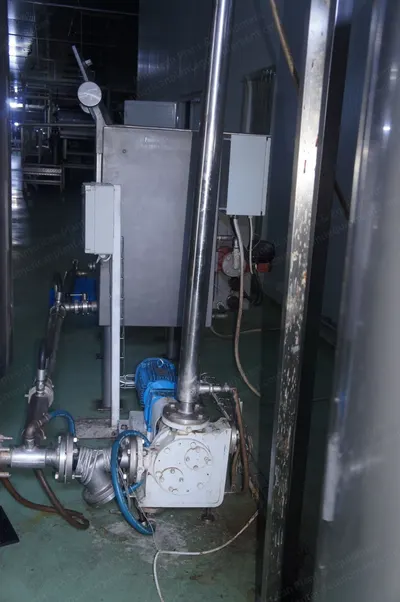

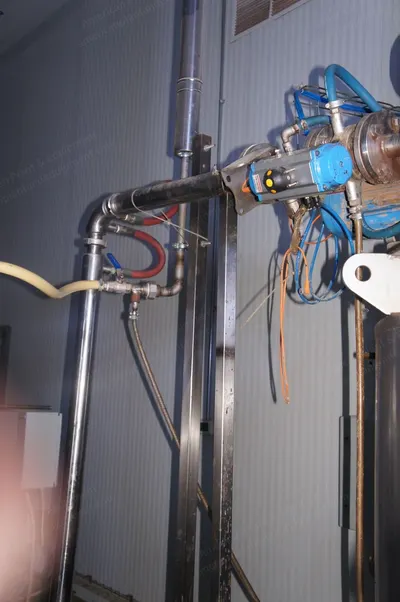

All interconnecting stainless steel pipework and pumps are included with the package.
