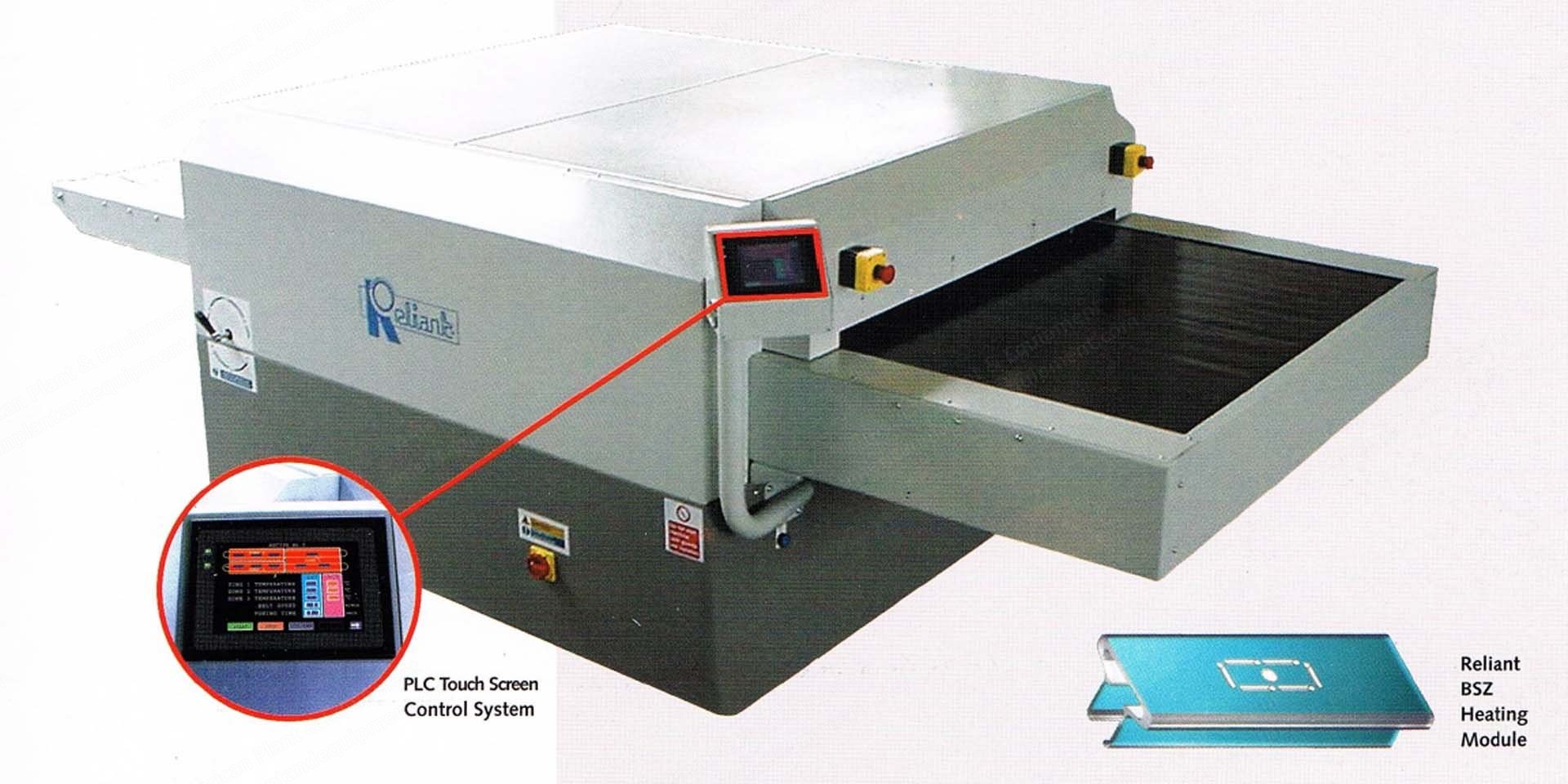

Reliant, Excel II 160, Fusing Press, 1600mm Operational Width, 30.6-40.8 kW, 3540x2357x1200mm (New)

Reliant, Excel II 160, Fusing Press, 1600mm Operational Width, 30.6-40.8 kW, 3540x2357x1200mm

Description

  1. Overview
    1. Excel II160 continuous straight through conveyor press
    2. Operational width: 1600 mm
    3. 1700 mm long heat tunnel
    4. Low temperature fusing capability
  2. Specifications
    1. Electrical supply: 4000 V 3 ph+n - 220 V, 3 ph voltage +/-10%
    2. 50/60 Hz frequency
    3. Number of heater modules: 9-12-9-12
    4. Heating modules per zone: 4-4-4-4
    5. Total heating power: 30.6-40.8-30.6-40.8 kW
    6. Current consumption: 49-64-77-102 amps
    7. Number of heating zones: 3
    8. Temperature range: 0-200 °C
    9. Belt speed: 3-15 m/min
    10. Fusing time: 7-34 seconds
    11. Air supply pressure: 6 bar
    12. Dimensions: 3540 x 2357 x 1200 mm (l x w x h)
    13. Weight: 1500-1550 kg
  3. Condition and Features
    1. Fitted with top and bottom heating modules configured in tri-zonal pattern
    2. Controlled by individual pid programmable digital thermostats
    3. Provided with ergonomically designed touch sensitive low-profile control screen including self-diagnostic monitoring and job memory recall systems
    4. Supplied with reliant “syncro-trak” conveyor belt tracking system for extended belt life
  4. Included
    1. Load on conveyor and polyester mesh off-load cooling conveyor
