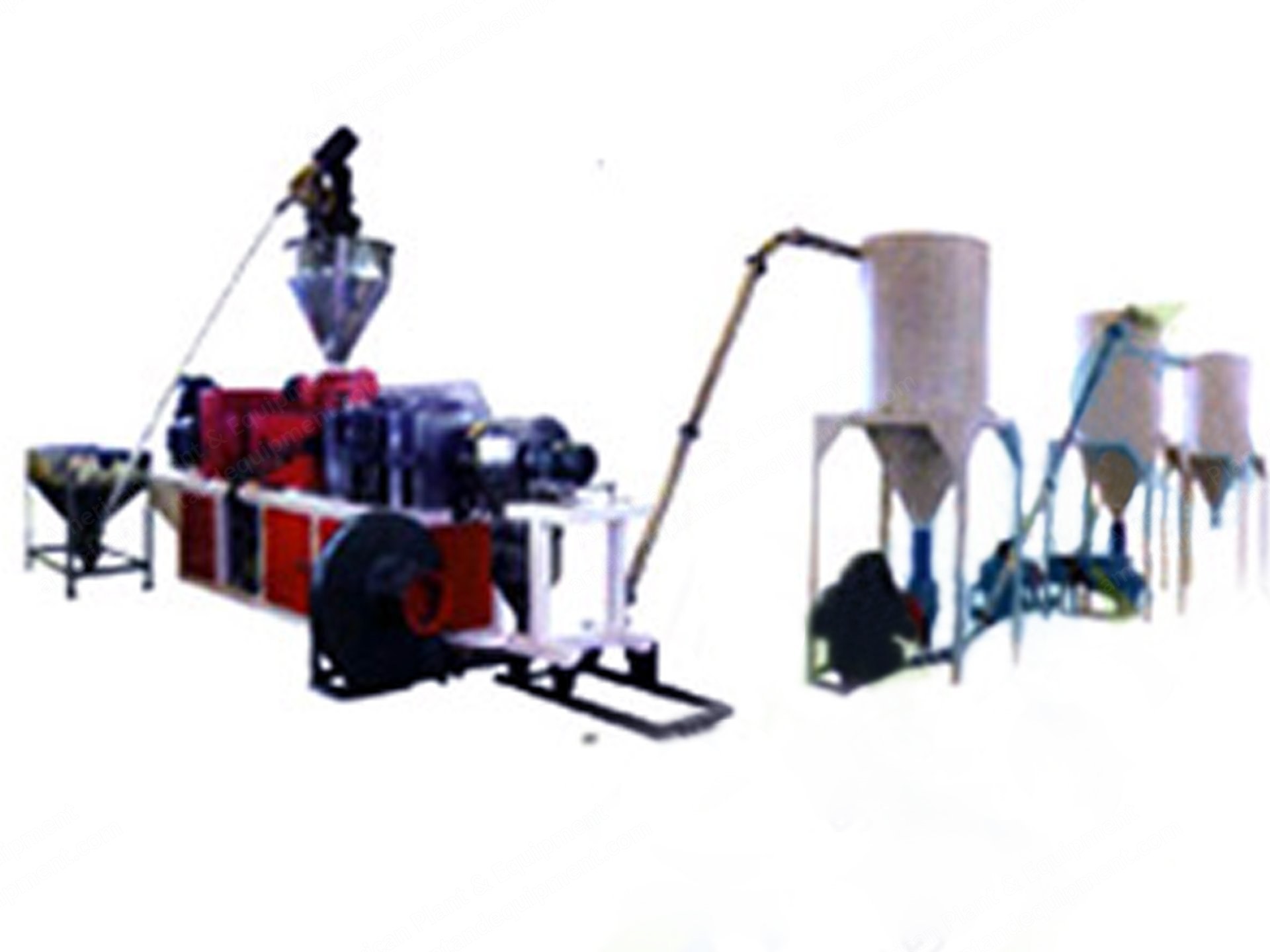

Hindustan Plastics, KEM 80/156, Conical Twin Screw Extruder, Capacity 300 to 325 kg/hr, 55 kW (New)

Hindustan Plastics, KEM 80/156, Conical Twin Screw Extruder, Capacity 300 to 325 kg/hr, 55 kW

Description

  1. Overview
    1. Pvc compounding line that provides maximum output.
    2. Available in different specifications and models.
    3. Developed using high grade steel.
    4. Gives optimum performance during compounding process.
    5. Range includes compounding line, pvc compounding line and industrial compounding lines.
    6. Pvc compounding line that is fabricated using high grade steel.
    7. Available in various models such as kem 51/105, kem 65/132, kem 80/156, hpmc 90, hpmc 100, hpmc 120.
    8. Range has maximum plasticizing capacity.
    9. Soft / rigid pvc compounding line.
    10. Maximum plasticizing capacity of 400 kg/hr.
    11. Maximum output of 300 to 325 kg/hr.
  2. Specifications
    1. Conical twin screw extruder models: kem 51/105, kem 65/132, kem 80/156.
    2. Kem 51/105: max plasticizing capacity 160 kg/hr, max output 180-200 kg/hr, main drive 18.5 kw, barrel heating 12 kw, die heating 3 kw, screw speed variation 1-37 rpm.
    3. Kem 65/132: max plasticizing capacity 275 kg/hr, max output 250-275 kg/hr, main drive 37 kw, barrel heating 25 kw, die heating 4 kw, screw speed variation 1-37 rpm.
    4. Kem 80/156: max plasticizing capacity 400 kg/hr, max output 350-375 kg/hr, main drive 55 kw, barrel heating 35 kw, die heating 5 kw, screw speed variation 1-37 rpm.
    5. Single screw extruder models: hpmc 90, hpmc 100, hpmc 120.
    6. Hpmc 90: max plasticizing capacity 120 kg/hr, max output 120 kg/hr, main drive 22.5 kw, barrel heating 12 kw, die heating 3 kw, screw speed variation 20-50 rpm.
    7. Hpmc 100: max plasticizing capacity 150 kg/hr, max output 150 kg/hr, main drive 22.5 kw, barrel heating 15 kw, die heating 3 kw, screw speed variation 20-50 rpm.
    8. Hpmc 120: max plasticizing capacity 225 kg/hr, max output 225 kg/hr, main drive 37 kw, barrel heating 20 kw, die heating 3 kw, screw speed variation 20-40 rpm.
  3. Condition
    1. Fabricated using high grade steel.
    2. Provides optimum performance during compounding process.
  4. Included
    1. Pvc compounding line.
    2. Soft / rigid pvc compounding line.
    1. Not specified.
