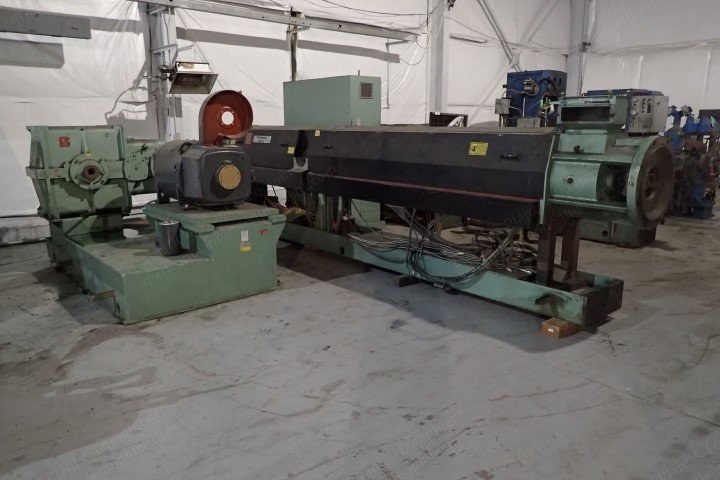

Davis-Standard, 60IN60TPIH, 1998, 6" Screw Diameter, 34:1 L/D, 400 HP

Davis-Standard, 60IN60TPIH, 1998, 6" Screw Diameter, 34:1 L/D, 400 HP

Description

  1. Overview

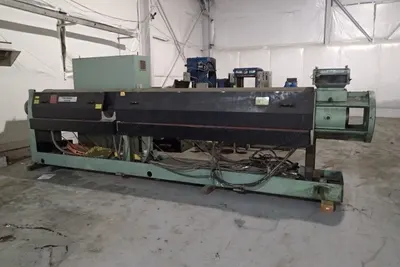

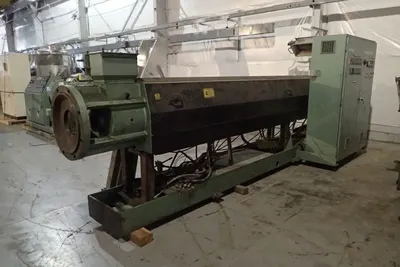

    1. 6" Davis Standard extruder
    2. Model 60in60tpih
    3. Year 1998
  2. Specifications
    1. Length to diameter ratio: 34
    2. Manufacturer: Davis-Standard
    3. Model: 60in60tpih
    4. Motor hp: 400
    5. Screw diameter: 6 in
    6. 34:1 L/D
    7. Vented barrel
    8. Jacketed feed section
    9. 400 hp DC motor with SCR
    10. 17.21:1 gearbox ratio
    11. Gearbox rated up to 528 hp
    12. 1.5 service factor
  3. Heating And Cooling
    1. Electrically heated
    2. Water cooled (missing manifold, pump, reservoir and heat exchanger)
  4. Controls

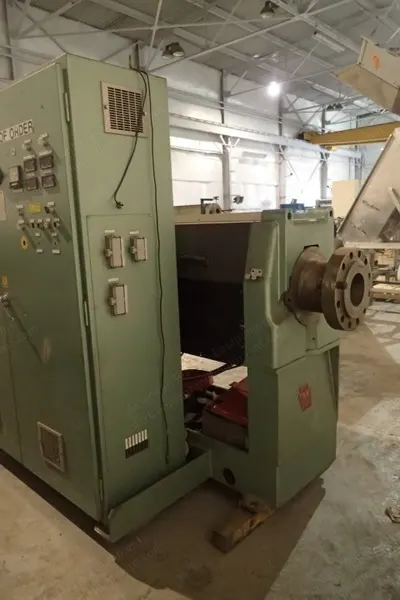

    1. On board control panel with (7) barrel zones
    2. (7) additional zones
