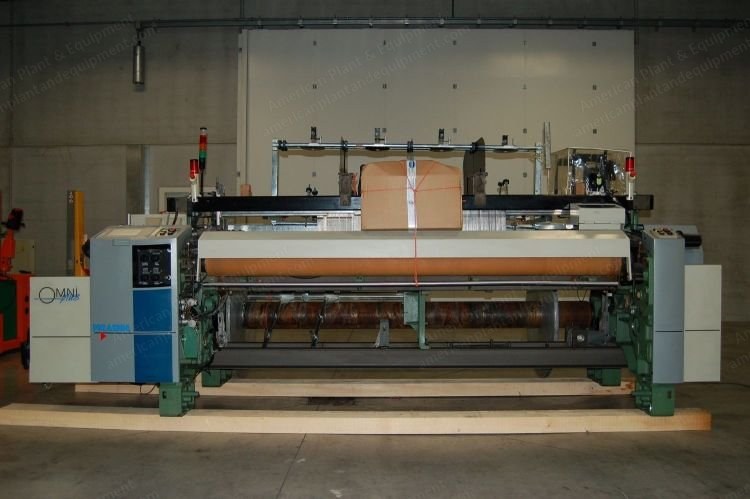

Picanol, Omniplus-F-4-P-250, 2000, Air Jet Weaving Loom, 2500mm Working Width, 4 Colors, Staubli 1661 Cam Motion

Picanol, Omniplus-F-4-P-250, 2000, Air Jet Weaving Loom, 2500mm Working Width, 4 Colors, Staubli 1661 Cam Motion

Description

  1. Overview
    1. Picanol Omniplus-F-4-P-250 air jet loom
    2. Brand: Picanol
    3. Type: Omniplus-F-4-P-250
    4. Year: 2000
    5. Working width: 2500 mm
    6. 4 colors installed
  2. Specifications

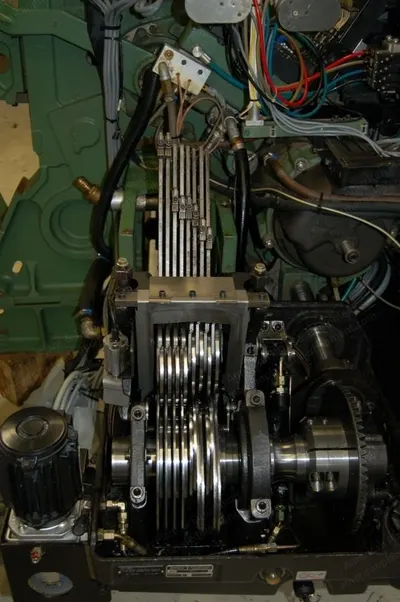

    1. Eccentrics Staubli type 1661 with 8 levers installed (full)
    2. Each equipped with: sumo motor, elo, etu, pra, 4 pft
    3. 4 weft accumulators Picanol type 1131plus
    4. 1 weft stand
    5. 1 creel for 4 bobbins
    6. Double warp tension roll diameter 120 mm with easing motion right and left
    7. Kasuga warp detection
    8. 4 heald frames drc2 13" type j
    9. 5000 heddles
    10. Leno-device right and left
    11. Elsy right
    12. Electrical waste cutter right
    13. 1 warp beam Ø 1000 mm q2
    14. Batching motion pbm with walking floor and inspection table
    15. Display
    16. Walking step
    17. Waste rewinding and dustbin
