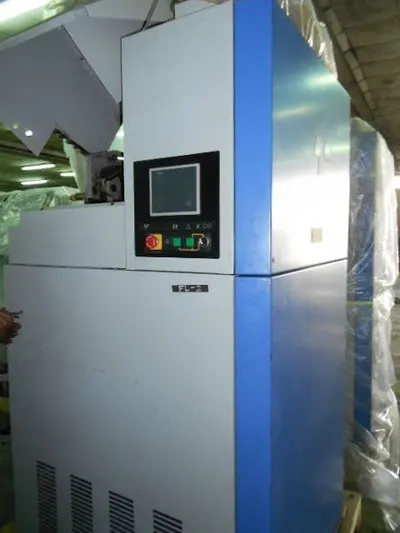

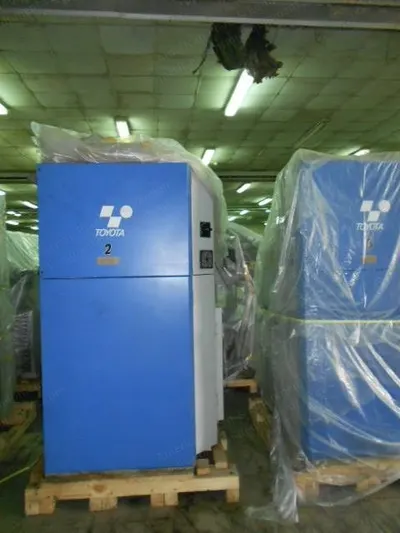

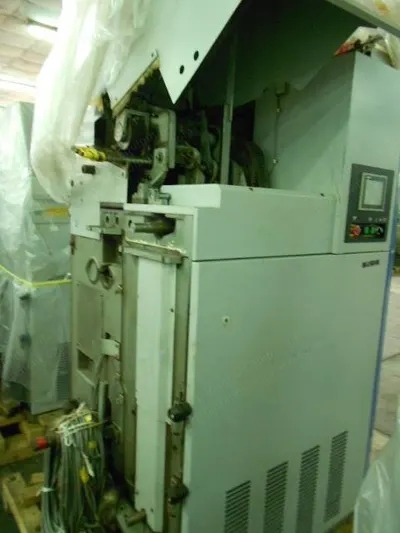

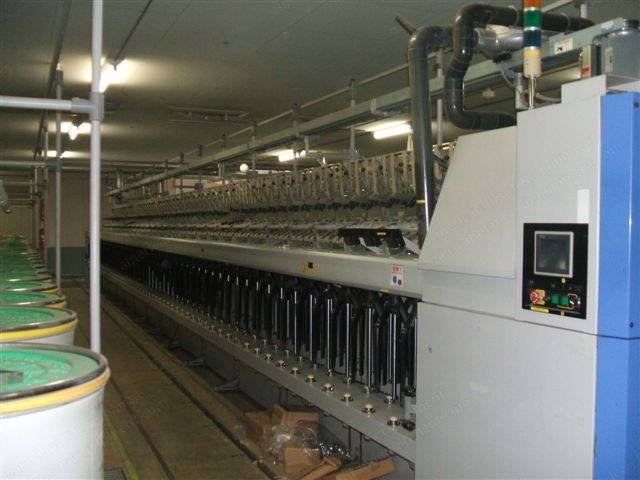

Toyoda, FL-100, 1997, 96 to 120 Spindles, 4-Roller Double Apron D-Type Drafting

Toyoda, FL-100, 1997, 96 to 120 Spindles, 4-Roller Double Apron D-Type Drafting Sold

Description

  1. Overview
    1. Roving frames
    2. Make and model: Toyoda FL-100
    3. Year: 1997
    4. Used in
    5. Status: stopped
  2. Spindle Configuration
    1. Spindles: 96 and 120
    2. 4 sets of 96 spindles
    3. 2 sets of 120 spindles
  3. Specifications
    1. Staff (4 spindles): 440 mm
    2. Full bobbin diameter: 152 mm
    3. Lift: 406 mm
    4. Easy doffing device

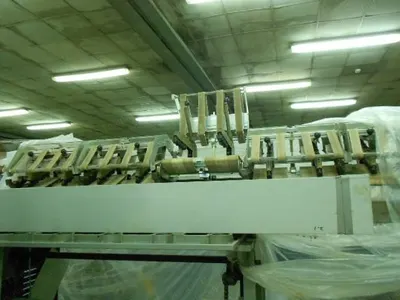

    5. Drafting system: 4-roller double apron D-type
    6. For 100% cotton, combed or carded
    7. Processing fibre up to 38 mm, Ne 10-20s
    8. Weighting arm: SKF-PK1500-001938
    9. Short bottom apron
    10. Cradle type: SKF OH 514-110
    11. Cradle radius: 34.5 mm, width: 40 mm
    12. Bottom roller: 28.5 (F) x 28.5 (S) x 28.5 (T) x 28.5 (B)
    13. Top roller SKF: LP 315-110 (F) x LP 315-110 (S) x LP 317-110 (T) x LP 315-110 (B)

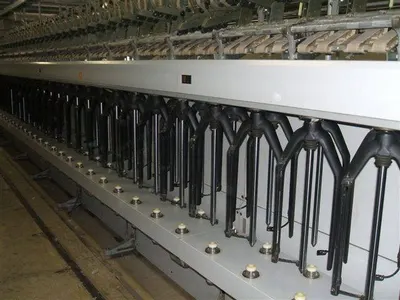

    14. Diameter of flyer spindle: 22 mm
    15. Light alloy metal flyer, SL reinforced, slit less type (FL 100)
    16. Size of feeding can: 508 mm (20) x 1321 mm (52)
    17. Single sliver feeding type
    18. Indicator: 3 shifts
    19. Clearer: positive intermittent roving clearer with comb for top and bottom rollers
    20. Electric cushion starter control for run and inching
    21. Automatic lubrication for flyer and bobbin gear
    22. Machine back cover with bobbin jump prevention device
    23. Voltage: AC 220 / 60 Hz
  4. Special Options
    1. Roving tension controller
    2. Flyer speed control by inverter
    3. Main gearing in oil bath
    4. Draft gearing grease
    5. Irregular roving preventing device
    6. Package shoulder collapse preventing device
    7. Stop motion upon length measured setting completion
