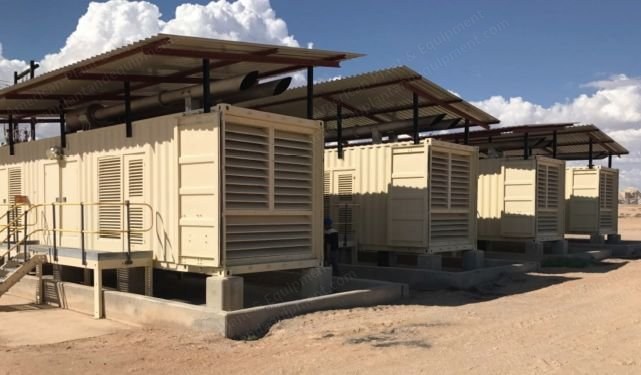

Perkins, Containerized Diesel Generator Power Plant, 2009, 12000 kVA, 9600 kW, 50 Hz

Perkins, Containerized Diesel Generator Power Plant, 2009, 12000 kVA, 9600 kW, 50 Hz

Description

  1. Overview

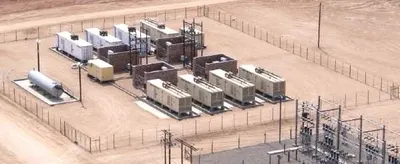

    1. 12000 KVA / 9600 KW complete diesel generator plant.
    2. Consists of 9 sound attenuated containerized diesel generator sets.
    3. Includes 4 x 3000 KVA transformers, electrical control room, and fuel tank system.
    4. Installed and maintained by OEM.
    5. Complete package can be set up in a very short amount of time to generate power on site.
    6. Offered disassembled from site, packaged for shipping, loaded to transport, and shipped to the nearest port from the previous site.
  2. Generator Set Specifications
    1. 8 units with engine model 4012-46 TAG, 4 stroke, V12 configuration, direct injection, turbo charged diesel engines with Stamford alternators.
    2. 1 unit with engine model 2506C-E15, 4 stroke, inline 6 cylinder, direct injection, turbo charged with Stamford alternators.
    3. Years: 2009 and 2011.
    4. 1500 RPM, 50 Hz.
    5. Hours: 146, 210, 228, 228, 237, 237, 3502, 3688, and 3692.
  3. Item 001
    1. Container SWTU, model P1500.
    2. Engine: Perkins 4012-46TAG 2A.
    3. Alternator P1734 C1.
    4. Year: 2011.
    5. Hours: 237.
  4. Item 002
    1. Container SWTU, model P1500.
    2. Engine: Perkins 4012-46TAG 2A.
    3. Alternator P1734 C1.
    4. Year: 2011.
    5. Hours: 237.
  5. Item 003
    1. Container SMSU, model P1650.
    2. Engine: Perkins 4012-46 TAG 2A.
    3. Alternator P1734 C1.
    4. Year: 2009.
    5. Hours: 3688.
  6. Item 004
    1. Container SMSU, model P1650.
    2. Engine: Perkins 4012-46 TAG 2A.
    3. Alternator P1734 C1.
    4. Year: 2009.
    5. Hours: 3692.
  7. Item 005
    1. Container SWTU, model P1500.
    2. Engine: Perkins 4012-46 TAG 2A.
    3. Alternator P1734 C1.
    4. Year: 2011.
    5. Hours: 228.
  8. Item 006
    1. Container SWTU, model P1500.
    2. Engine: Perkins 4012-46TAG 2A.
    3. Alternator P1734 C1.
    4. Year: 2011.
    5. Hours: 228.
  9. Item 007
    1. Container SMSU, model P1650.
    2. Engine: Perkins 4012-46 TAG 2A.
    3. Alternator P1734 C1.
    4. Year: 2009.
    5. Hours: 3502.
  10. Item 008
    1. Container SWTU, model P1250.
    2. Engine: Perkins 4012-46TWG 2A.
    3. Alternator P1734 C1.
    4. Year: 2011.
    5. Hours: 210.
  11. Item 009
    1. Container SWTU, model P500.
    2. Engine: Perkins 2506C-E15 TAG 2.
    3. Alternator: HCI534D1.
    4. Year: 2011.
    5. Hours: 146.
  12. Perkins 4012-46 TAG Diesel Engine Generator Set Specifications
    1. General: bore 160.0 mm, stroke 190.0 mm, displacement 45.8 litres.
    2. Aspiration: turbocharged and air-to-air charge cooled.
    3. Rotation (from flywheel end): anti-clockwise.
    4. Number of cylinders: 12 vee.
    5. Cycle: 4 stroke.
    6. Compression ratio: 13.1:1.
    7. Combustion system: direct injection.
    8. Cooling system: liquid.
    9. Total coolant capacity: 210.0 litres.
    10. Total lubricating capacity: 177.0 litres.
    11. Engine dimensions: minimum length 3383.0 mm, maximum length 3915.0 mm, minimum width 1775.0 mm, maximum width 2198.0 mm, minimum height 2255.0 mm, maximum height 2258.0 mm, minimum dry weight 4400.0 kg, maximum dry weight 6086.0 kg.
    12. Disclaimer: final dimensions dependent on selected options (includes tropical specifications).
    13. Emission standards: capable emissions of TA Luft (1986).
    14. Power rating: mechanical output 842-1583 KWM, electrical output 1000-1880 KVA (800-1504 KWE), rated speed 1500/1800 RPM.
  13. 500 KW / 625 KVA Perkins Model 2506C-E15 Diesel Engine Generator Set Specifications
    1. General: bore 137.0 mm, stroke 171.0 mm, displacement 15.2 litres.
    2. Aspiration: turbocharged and air-to-air charge cooled.
    3. Rotation (from flywheel end): anti-clockwise.
    4. Number of cylinders: 6 vertical inline.
    5. Cycle: 4 stroke.
    6. Compression ratio: 16:1.
    7. Combustion system: direct injection.
    8. Cooling system: liquid.
    9. Total coolant capacity: 58.0 litres.
    10. Total lubricating capacity: 62.0 litres.
    11. Engine dimensions: length 2657.0 mm, width 1120.0 mm, height 1718.0 mm, dry weight 1633.0 kg.
    12. Disclaimer: final dimensions dependent on selected options.
    13. Power rating: mechanical output 396-543 KWM, electrical output 455-625 KVA (364-500 KWE), rated speed 1500/1800 RPM.
