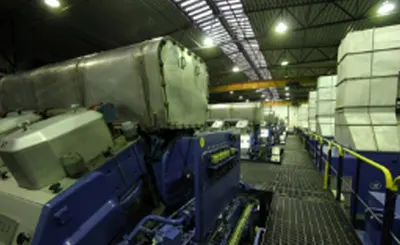

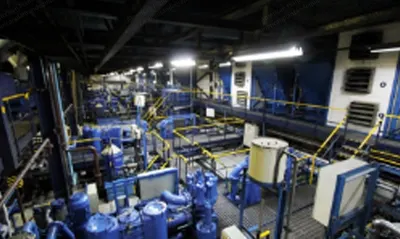

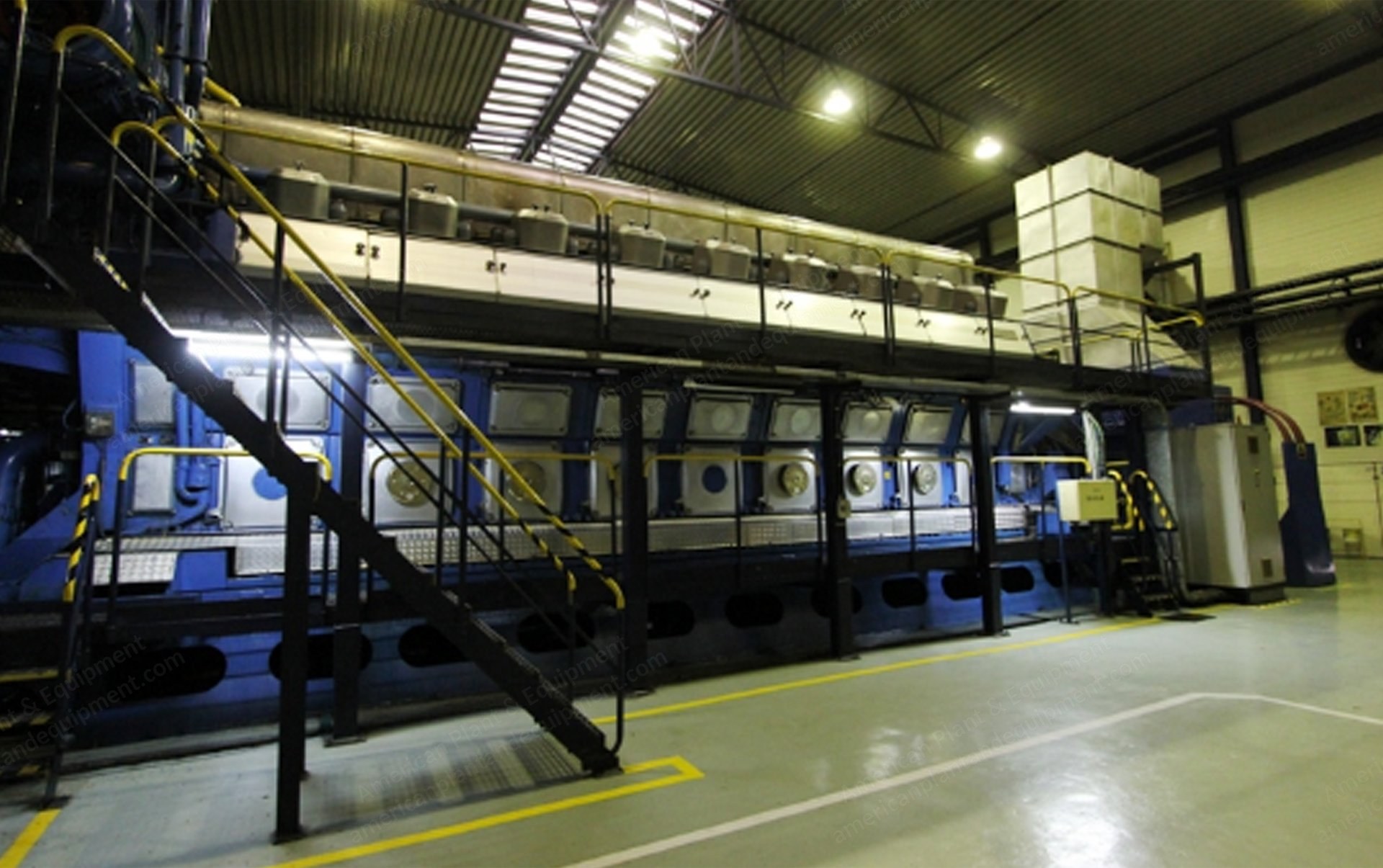

Wartsila, 18V46, 2002, 119 MW, 50 Hz, 11 kV, HFO Diesel Generator Power Plant

Wartsila, 18V46, 2002, 119 MW, 50 Hz, 11 kV, HFO Diesel Generator Power Plant

Description

  1. Overview
    1. Complete, dismantled in 1q-2017, hfo plant iso output 119 mw / 50 hz hfo
    2. 7 x wartsila 18v46 500 rpm hfo diesel engines with abb alternators
    3. Turn-key delivery from wartsila in year 2002
    4. Operating hours 6 x 50 000 /unit and 2 x 70 000 / unit
    5. 60 000 and 70 00 major overhaul just made - perfect records
    6. Dismantled, excellent condition ready for immediate shipment
    7. Complete equipment packaged for 119 mw hfo diesel power plant with seven units of wartsila 18v46 hfo diesel generators and all auxiliaries
    8. Manufacturer wartsila
    9. Manufacturer's type 7 x 18v46 hfo
    10. Capacity 119 mw
    11. Application hfo diesel generators
    12. Diesel generator power plant 119 mw with wartsila 7x18v46 hfo
  2. Plant History And Condition
    1. This 119 mw power plant (iso condition) was delivered by wartsila in year 2002, operation started in 2003 and it has 7 x 18v46 diesel engines running on heavy fuel oil (hfo) at 500 rpm coupled with abb made brushless synchronous 11 kv / 50 hz alternators
    2. It has been in operated under ppa and engines have been operated around 60 000 hours in base load power production
    3. This power plant is designed and build by wartsila utilizing their highly standardized functional module delivery
    4. Operation and maintenance works were carried out strictly in accordance with wartsila manuals
    5. The plant was professionally dismantled in 2017 and before dismantling 60 000 hour major overhauled was carried out to all engines
    6. During the operation no any unexpected breakdowns has happened
    7. Delivery contains complete functioning power plant equipment with 110 kv switchyard equipment
    8. Buildings and tanks can be discussed but are not a part of our standard offering
  3. Main Plant Characteristics At Iso Conditions
    1. Power output iso from alternators: 119 mw at 110 kv / 50 hz
    2. Engines: 7 x 18v46 - 500 rpm
    3. Alternators: abb amg 1600 ss12 dseb self-cooled, brushless, synchronous
    4. Power factor: 0.8
    5. Alternator efficiency: 0.97 (at rated output, 50 hz and power factor 0.8)
    6. Voltage: 11 000 v, with adjustment range +5 - 10%
    7. Frequency: 50 hz +/-5%
    8. Fuel consumption gross: 8290 - 8330 kj/kwh (43.4 to 43.2 % efficiency)
    9. Lube oil consumption: 0.7 g/kwh
    10. Cooling system: closed loop radiator cooling
    11. Fuel oil: hfo viscosity max 380 cst / 50 °c
