Complete package of one individual power plant including 15 pieces 2200 kva diesel generating sets, switchgear, step-up transformers, individual exhaust system and building ventilation silencer system.
The building is not included.
Operation hours of the plants between 80 and 580.
Scope Of Supply

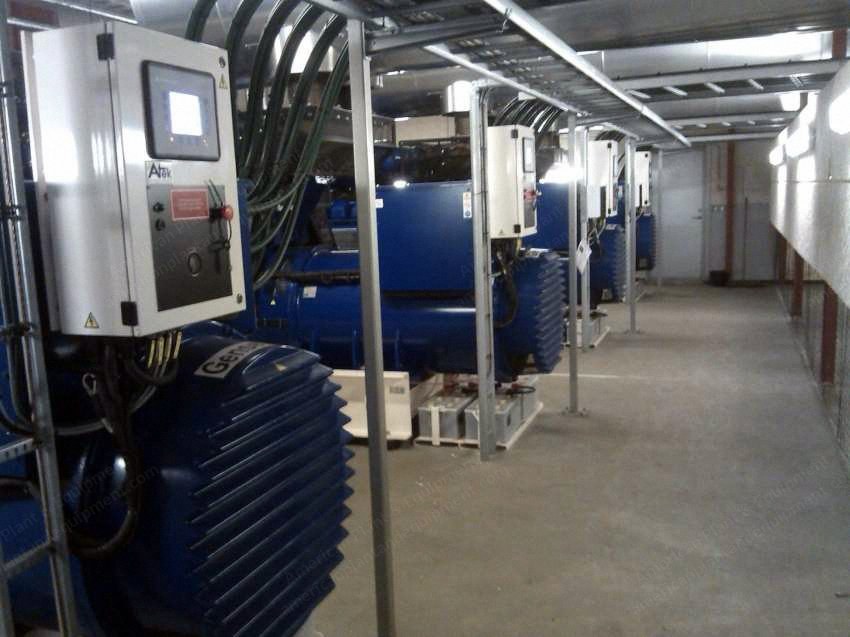

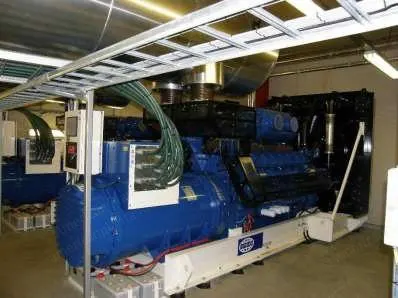

15 pc. fg wilson p2000e with oversize ll9124l leroy somer alternators.
Rated prime power: 2000 kva/1600 kw, 3x415v-50 hz.

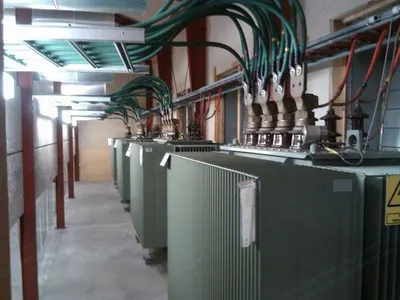

Pauwels step-up transformers for each genset 3x415v/3x10.5 kv.
Lke/normafix medium voltage switchgear (with 2 line-incoming and 15 feeder breakers).
All low and high voltage cabling.

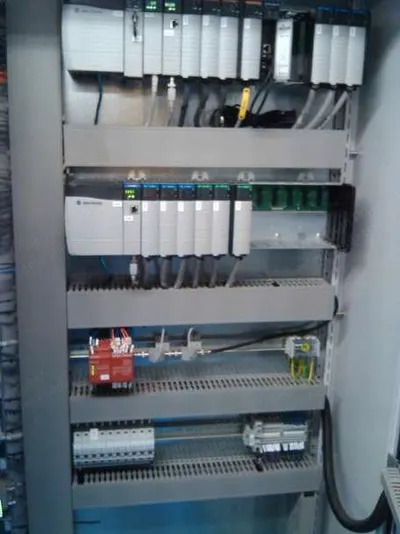

Complete control system including aut/man synchronisation and scada.
All drawings of building (structures, foundations, etc.) included, allowing to build a copy of the existing plant.
Exhaust system individual for each generator.
Ventilation silencer system.
Disassembly.
