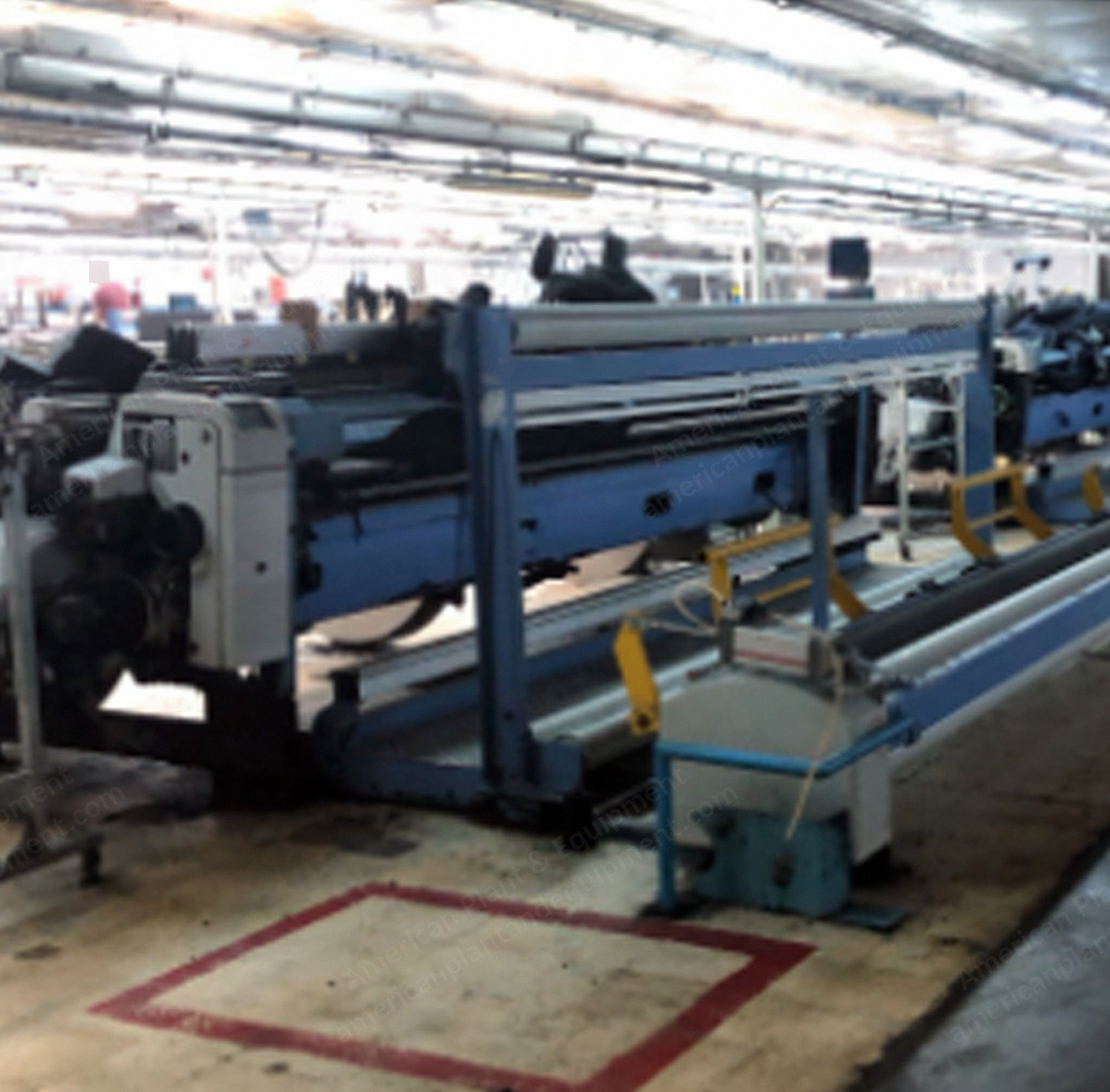

Sulzer, P7300, 2003 to 2007, 3900mm Working Width, 4 Colors, Cam Motion, Projectile Looms

Sulzer, P7300, 2003 to 2007, 3900mm Working Width, 4 Colors, Cam Motion, Projectile Looms

Description

  1. Overview
    1. Item 001: Sulzer P 7300 HP B390 N4 EP D12 R, cam motion, year 2007, projectiles D12, width 3900 mm, 4 colors, reinforced version.
    2. Item 002: Sulzer P 7300 HP B390 N4 EP D12 R, cam motion, year 2005, projectiles D12, width 3900 mm, 4 colors, reinforced version.
    3. Item 003: Sulzer P 7300 B390 N4 EP D12 R, cam motion, year 2003, projectiles D12, width 3900 mm, 4 colors, reinforced version.
  2. Specifications
    1. Width: 3900 mm.
    2. 4 colors.
    3. Reinforced version (R).
    4. Cam motion.
    5. Projectiles D12.
    6. 10 harness frames.
    7. 4 twin warp beams 1100 mm (item 001).
    8. 4 half warp beams 1100 mm (items 002 and 003).
    9. 4 weft feeders.
    10. 10 cams installed 3/1+2/2.
    11. Undermotion complete with 10 drives.
    12. Drop wires and heddles as installed (approx. 8000 each).
    13. Warp tensioner.
    14. Mechanical take up.
    15. Floating take up system.
    16. Waste saver on all machines.
  3. Included Equipment
    1. Off loom take up from Grob with pneumatic roll push out and vertical inspection.
    2. 10 harness frames.
    3. 4 weft feeders.
    4. 10 cams installed 3/1+2/2.
    5. Undermotion complete with 10 drives.
    6. Drop wires and heddles as installed (approx. 8000 each).
    7. Warp tensioner.
    8. Mechanical take up.
    9. Floating take up system.
    10. Waste saver on all machines.
  4. Condition
    1. Used industrial machines.
    2. Year 2007 (item 001), year 2005 (item 002), year 2003 (item 003).
    1. Not specified.
