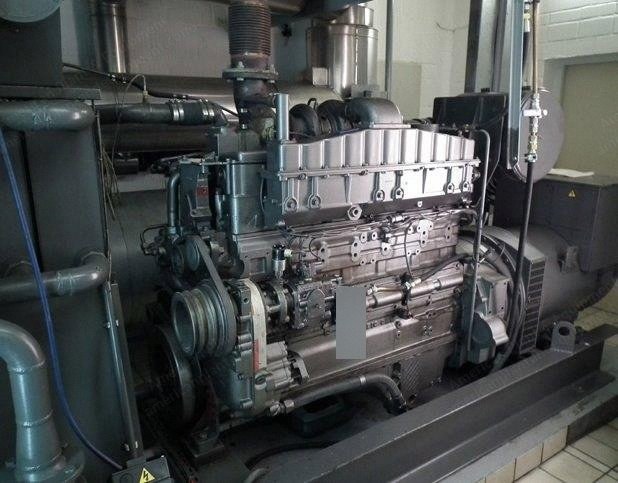

Cummins, Combined Heat and Power Plant, 500 kW, 3 Cogenerators, Heating Oil

Description

Overview

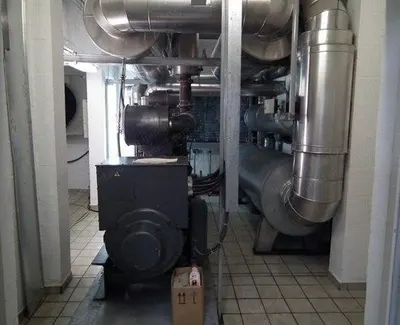

1. Combined heat and power plant (CHPU) with up to 500 kW
2. A total of 3 independent cogenerators for combined heat and power; electricity and hot water
3. Only max 13,280 operation hours
4. Operation is done with heating oil
5. Total power approx. 500 kW, cascade connection; depending on power requirements, the various energy producers gradually switch on and regulate themselves on the performance
6. At peak load, all 3 systems work in parallel with full output
7. Ideal for power supply in remote areas without public supply or as emergency power supply with simultaneous heat recovery if desired

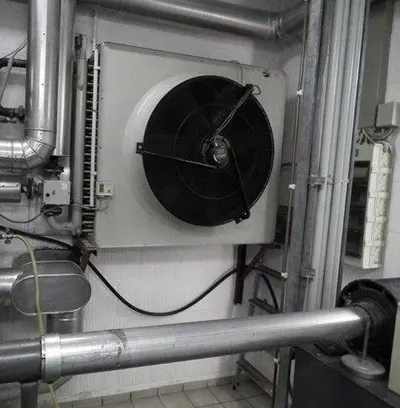

8. Each engine has a heat exchanger; if heat is not needed, it can also be removed
9. The plant is constructed and ready, accordingly control etc. top maintained
10. Spare parts for maintenance etc. available
Specifications

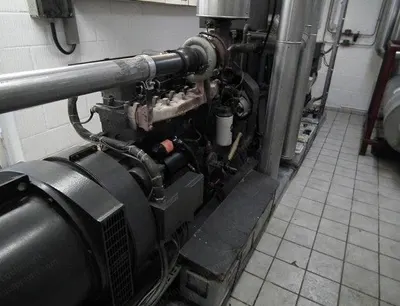

1. 1 x CHP type BHC 86 RLD, Cummins engine 6BT5.9, 78 kW, 92 kVA, operating hours 12,470 h
2. 1 x CHP type BHC 86 RLD, Cummins engine 6BT5.9, 78 kW, 92 kVA, operating hours 11,981 h

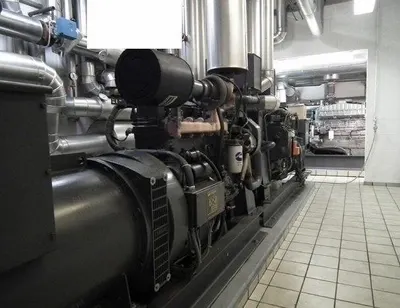

3. 1 x CHP type BHC 300PL, Cummins engine NT855G6, 282 kW, 300 kVA, operating hours 13,280 h
4. 3 x electric generators brand Stamford
5. 3 x exhaust systems extremely sound-damped

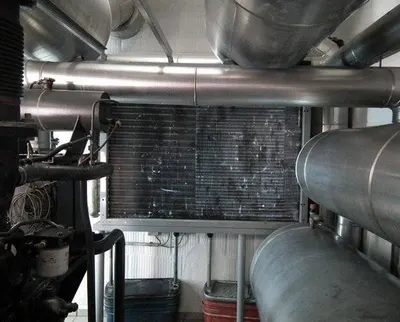

6. 2 x heat exchanger, hot water production up to approx. 80-85 °C
7. 3 x control system
Included
1. Spare parts for continuous operation such as filters, seals etc.
2. Starter batteries
3. Complete technical documentation
4. Test reports

Capacity	500 kW
Cogenerators	[{'qty': 2, 'type': 'BHC 86 RLD', 'engine': 'Cummins 6BT5.9', 'power_kw': 78, 'power_kva': 92, 'operating_hours': '12,470 h / 11,981 h'}, {'qty': 1, 'type': 'BHC 300PL', 'engine': 'Cummins NT855G6', 'power_kw': 282, 'power_kva': 300, 'operating_hours': '13,280 h'}]
Generator Brand	Stamford
Hot Water Temperature	80-85 °C
