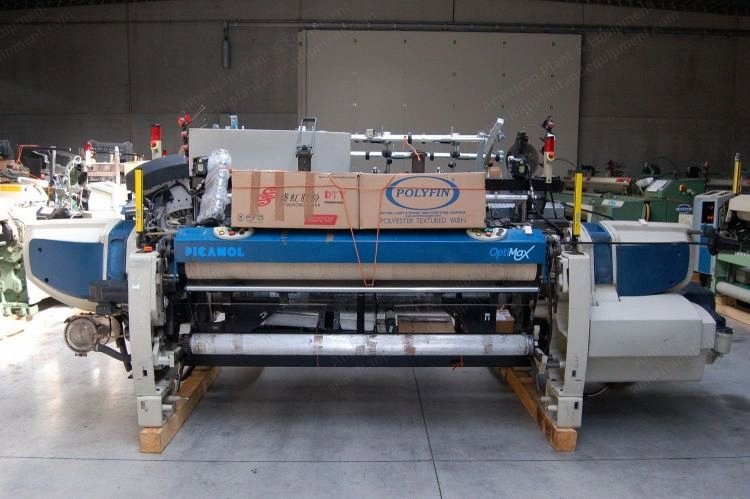

Picanol, Optimax-8-R-190, 2005, 1900mm Working Width, 8 Colors, Staubli Dobby

Picanol, Optimax-8-R-190, 2005, 1900mm Working Width, 8 Colors, Staubli Dobby

Description

  1. Overview
    1. Category: Picanol rapier looms
    2. Brand: Picanol
    3. Type: Optimax-8-R-190
    4. Year: 2005
    5. Working width: 1900 mm
    6. Free flight with flat gripper
    7. 8 weft colors

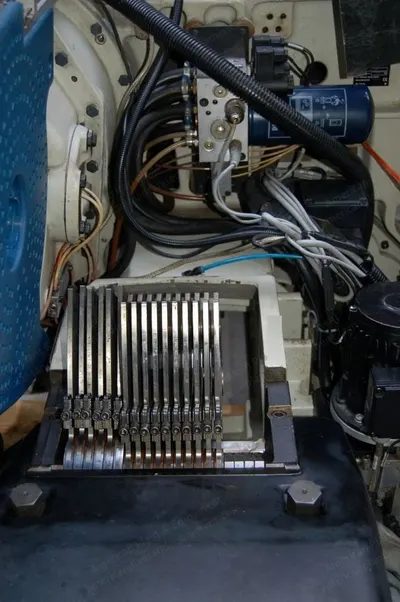

    8. Electronic Staubli dobby type 2861 up to max. 20 shafts
    9. 16 levers installed
  2. Specifications
    1. Each equipped with: Sumo, Elo, Etu
    2. 8 weft accumulators LGL Picanol Smart Can Bus
    3. Rotative weft cutter
    4. 4 heald frames DRC 2 type 13" J
    5. 5000 heddles
    6. 5000 droppers
    7. Grob warp detection with 6 detection bars
    8. Double warp tension rolls diameter 120 mm
    9. With springs R+L
    10. Elsy R+L
    11. Electrical waste cutter R+L
    12. Waste system + dustbin
    13. 1 warp beam diameter 1000 mm type Q2
    14. 1 cloth roller
    15. With Ldec
