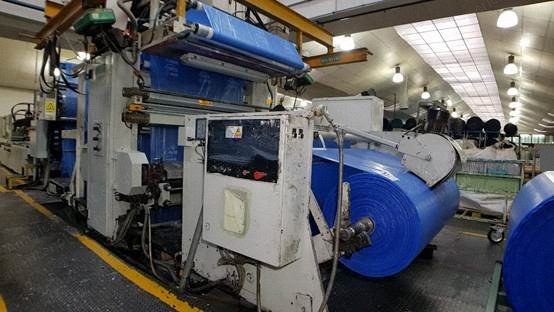

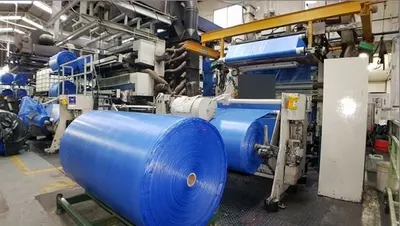

Filippini & Paganini, 1990, 2 Colors, 1600mm Printing Width, 2 Independent Drums Flexographic Machine

Filippini & Paganini, 1990, 2 Colors, 1600mm Printing Width, 2 Independent Drums Flexographic Machine

Description

  1. Overview
    1. Flexographic printing press
    2. Central drum or stack with 2 independent drums
    3. 2 colors
    4. Manual washing
  2. Specifications
    1. Useful printing width: 1600 mm
    2. Min / max impression development: 550 mm and 600 mm
    3. Mechanical speed: 120 m / min
    4. Printing speed: 120 m / min
    5. Materials: HDPE, LDPE, PP, paper
  3. Unwind And Rewind
    1. Type of coiler: mechanical axis
    2. Max diameter coil decobiner: 1100 mm
    3. Rebounded type: shot and remove 1 color 2 sides
    4. Max rewind coil diameter: 900 mm
    5. Number and size of expansible shafts: 1 axis
  4. Drying And Auxiliary Systems
    1. Drying system: independent dryer + drying tunnel
    2. Crown treatment: no
    3. Fife band guide: no
    4. Video camera: no
    5. Viscosity control: no
    6. Cutting online: no
  5. Cylinders, Anilox And Gears
    1. Shirts or cylinders: 2 cylinders of 600 mm and 2 of 550 mm (development)
    2. Elevator cylinders: no
    3. Number of anilox: 2 ceramics (120 cm4 lineature)
    4. Number of cylinders / shirts: 2 cylinders of 600 mm and 2 of 550 mm (development)
    5. Number of gears: 2 gears of 600 mm and 2 of 550 mm (development)
