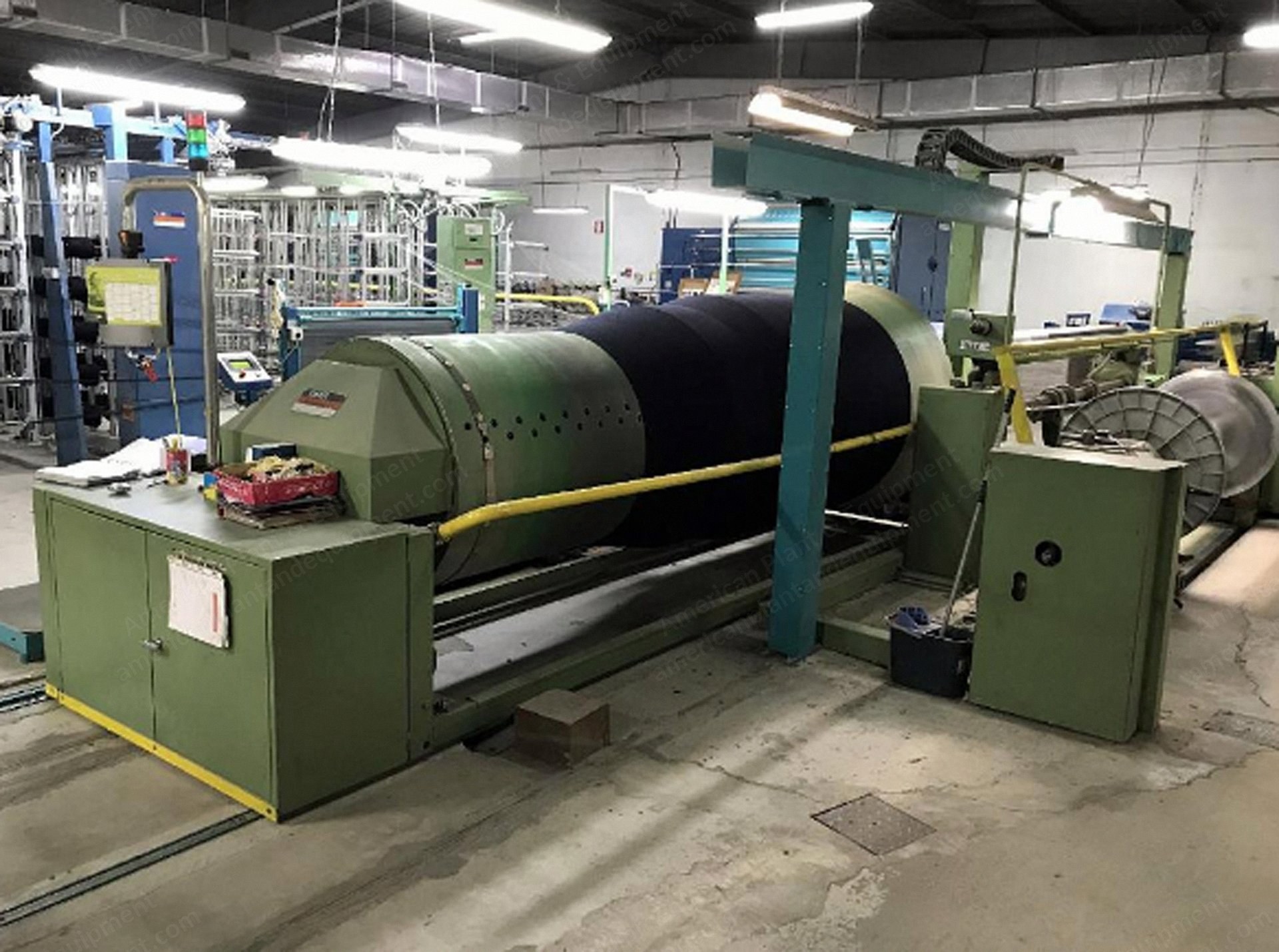

Benninger, Supertronic, 1990, Sectional Warping Machine, Working Width 2600mm, Beams 1000mm, Beaming Speed 800 m/min

Name: Benninger, Supertronic, 1990, Sectional Warping Machine, Working Width 2600mm, Beams 1000mm, Beaming Speed 800 m/min
Brand: Benninger
SKU: T-3446

‹ Go Back Next Product ›

Description

Overview
1. Type: Gaab/Ub
2. Year: 1990
3. Working width: 2600 mm
4. Beaming speed: 800 m/min
5. Beaming cone (high/length): 260/1300 mm
6. Section max. width: 500 mm
7. Section length: 2700 mm
Specifications
1. Beams diameter: 1000 mm
2. 432 bobbins
3. Pitch: 337.5/330 mm
4. 6 stages
5. Total creel length: 12150 mm
6. Total height: 2620 mm
7. Upper stage height: 1950 mm
8. Max. length tubes/cones: 260 mm
9. Bobbin max. diameter: 310 mm
Features
1. Leasing device
2. Pneumatic pressure
3. Gluing type c. 1 creel

Additional Specifications

Specifications

Beaming Cone	260/1300mm

Dimensions

Dimensions	12150x2620mm
Height	2,620 mm
Length	12,150 mm
Max Length Tubes/Cones	260 mm
Section Max Width	500 mm
Total Creel Length	12,150 mm
Upper Stage Height	1,950 mm
Width	2,620 mm
Working width	2,600 mm
