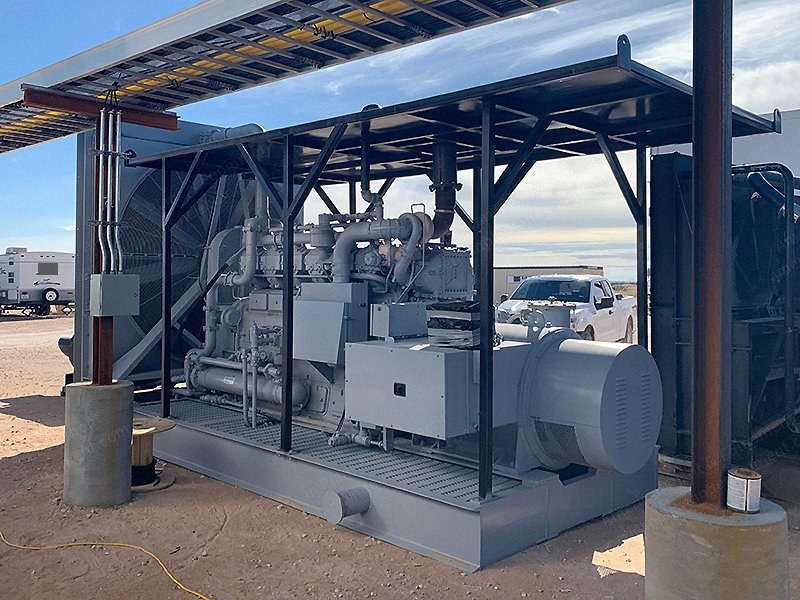

Waukesha, F3521GSI, 500 kW, Natural Gas, 480V, 60 Hz, 5000 Hours

Waukesha, F3521GSI, 500 kW, Natural Gas, 480V, 60 Hz, 5000 Hours

Description

  1. Overview
    1. Coalescing filter: yes
    2. Fuel type: natural gas
    3. Enclosed: oil field skid with canopy
    4. Cooling: skid
    5. Governor: EG3P
    6. Starters: electric
    7. Turbos: T18
    8. Silencers: industrial muffler mounted on top of canopy
  2. Engine
    1. Manufacturer: Waukesha
    2. Model: F3521GSI
    3. Horsepower: 738, rpm: 1200
  3. Generator
    1. kW: 500
    2. Voltage: 480
    3. Phase: 3
    4. Frequency: 60 Hz
    5. Alternator amps: 992
    6. PMG: Y
    7. Bearings: 012-21172-00
  4. Control and Breaker
    1. Control panel manufacturer: Deepsea
    2. Control panel model: 7310
    3. Breaker manufacturer: Westinghouse
    4. Breaker rating: 1200A
  5. Dimensions and Weight
    1. Length/depth: 245 in
    2. Width: 135 in
    3. Height: 154 in
    4. Weight: 35,000 lbs
  6. Condition
    1. Hours: 5,000 since rebuild
