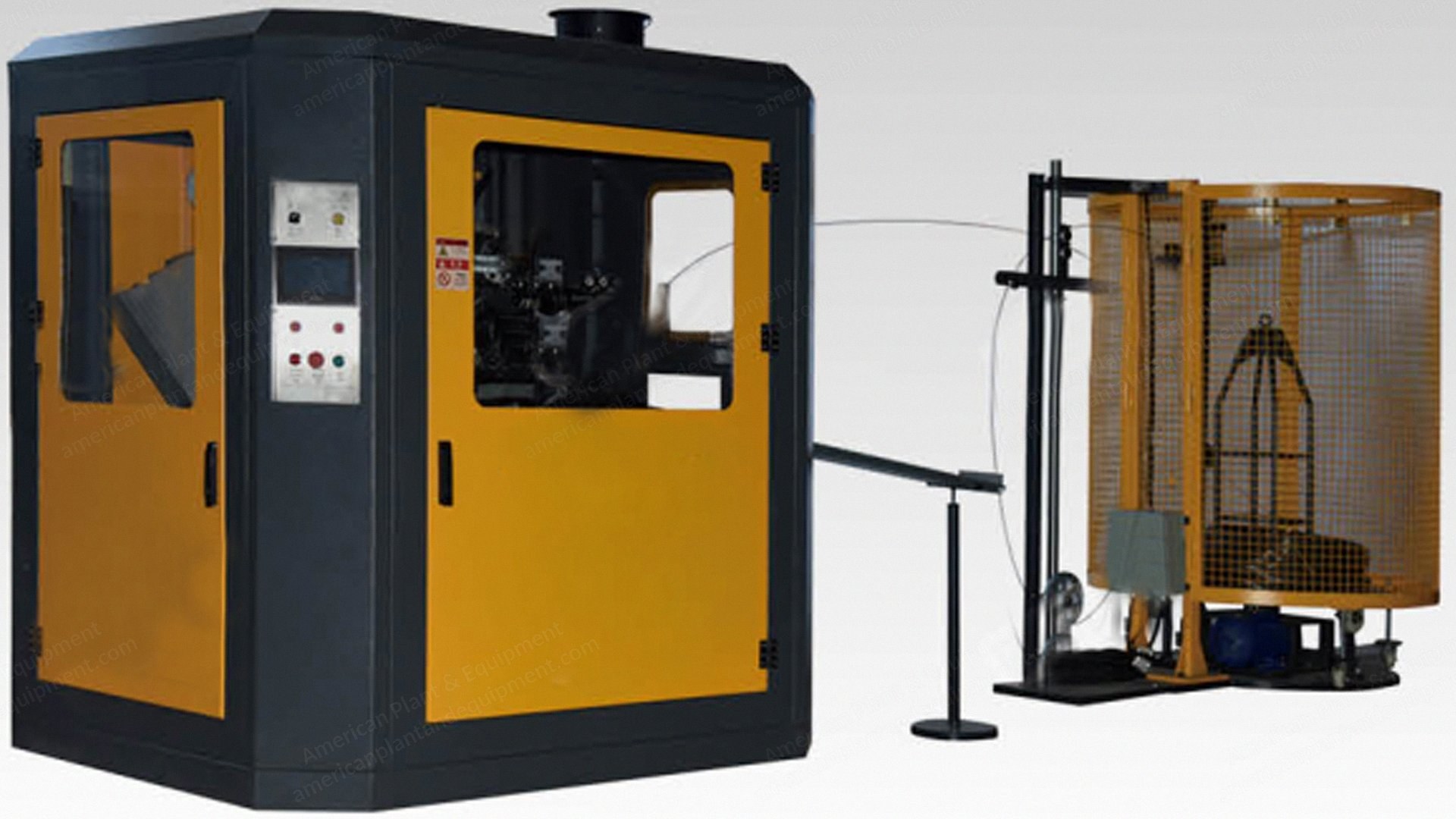

NovaStar, SB257, Automatic Coiler, 80 Coils/Min, Bonnell Type, 110mm OD (New)

NovaStar, SB257, Automatic Coiler, 80 Coils/Min, Bonnell Type, 110mm OD

Description

  1. Overview
    1. Digital control automatic coiler
    2. Output: 80 springs per minute
    3. Coil type: Bonnell
    4. Completely digitally controlled
    5. Control software allows adjustment of spring diameter and spring height
    6. Produces different specification springs with ease and convenience
    7. Precision adjustment of spring shape
  2. Specifications
    1. Coil outside diameter: 110 mm
    2. Steel wire diameter: 1.9 to 2.4 mm
    3. Spring coils (turn): 5 to 6
    4. Spring height: 100 to 180 mm
    5. Main drive gearbox: 5.3:1
    6. Swift frame power: 22 kW
    7. Heat treatment: 15 kVA
    8. Control system: servo system
    9. Max weight of wire on feeder: 800 kgs (can be customized)
    10. Main motor power: 5.3 kW
    11. Swift motor power: 2.2 kW
    12. Cabin fan motor power: 0.1 kW
    13. Heat treatment: 7 kW
    14. Total power: 14.6 kW
    15. Power requirements: 380 volts, 3-phase, 50 Hz or 220 volts, 3-phase, 60 Hz
    16. Machine weight (only for ref.): 2000 kgs
  3. Included
    1. Standard packing: wooden pallet with plastic film
