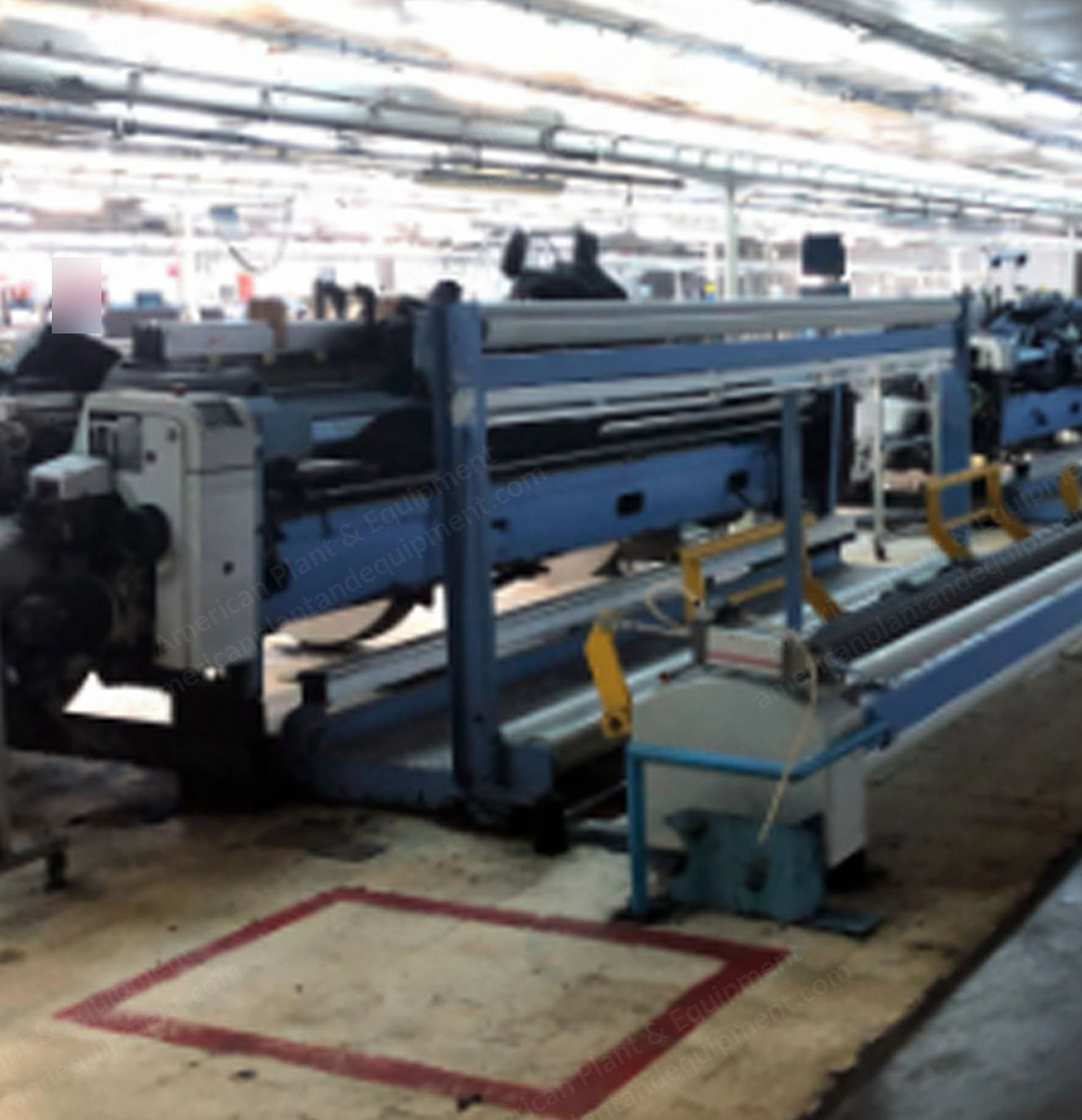

Description Item 001 Sulzer P 7300 HP B390 N4 EP D12 R cam motion Year 2007 Projectiles D12 Width 3900 mm 4 colors R = reinforced version Off loom take up from Grob with pneumatic roll push out and vertical inspection 10 harness frames 4 twin warp beams 1100 mm 4 weft feeders 10 cams installed 3/1+2/2 Undermotion complete with 10 drives Drop wires and heddles as installed (approx. 8000 each) Warp tensioner Mechanical take up Floating take up system Waste saver on all machines Item 002 Sulzer P 7300 HP B390 N4 EP D12 R cam motion Year 2005 Projectiles D12 Width 3900 mm 4 colors R = reinforced version Off loom take up from Grob with pneumatic roll push out and vertical inspection 10 harness frames 4 half warp beams 1100 mm 4 weft feeders 10 cams installed 3/1+2/2 Undermotion complete with 10 drives Drop wires and heddles as installed (approx. 8000 each) Warp tensioner Mechanical take up Floating take up system Waste saver on all machines Item 003 Sulzer P 7300 B390 N4 EP D12 R cam motion Year 2003 Projectiles D12 Width 3900 mm 4 colors R = reinforced version Off loom take up from Grob with pneumatic roll push out and vertical inspection 10 harness frames 4 half warp beams 1100 mm 4 weft feeders 10 cams installed 3/1+2/2 Undermotion complete with 10 drives Drop wires and heddles as installed (approx. 8000 each) Warp tensioner Mechanical take up Floating take up system Waste saver on all machines
