Cummins, C2250D5, 2011, 50000 kVA, 50Hz, 25 Units x 2000 kVA

Cummins, C2250D5, 2011, 50000 kVA, 50Hz, 25 Units x 2000 kVA

Description

  1. Overview
    1. Manufacturer: Cummins
    2. Year of manufacture: 2011
    3. Was in operation until 2017
    4. Since that time it has been in standby mode
    5. Operating hours: 11,000 hours
    6. Condition: Used, excellent condition
  2. Plant Configuration

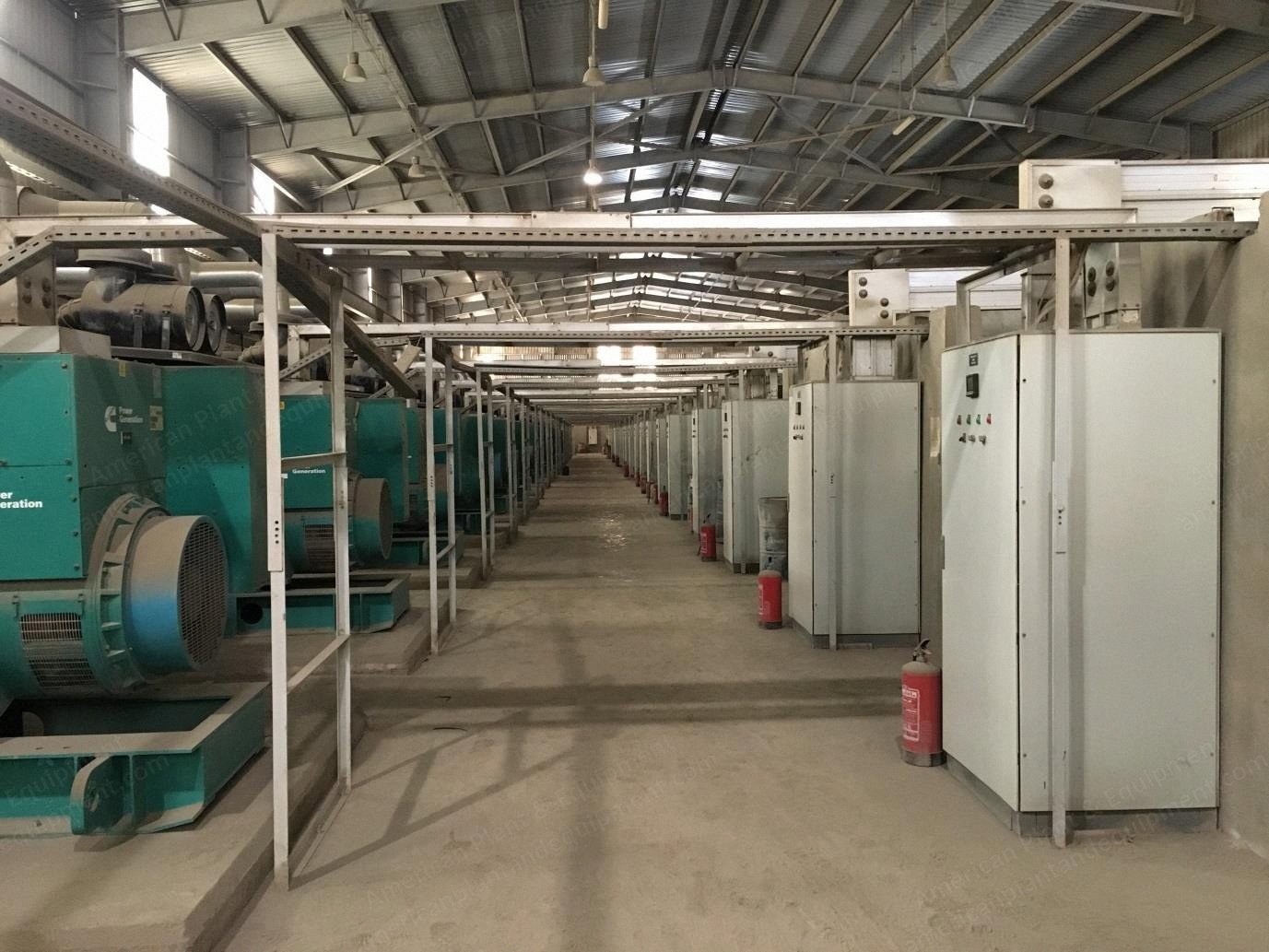

    1. This power plant is complete in all respects
    2. It is operated by 25 x 2000 kva diesel gensets

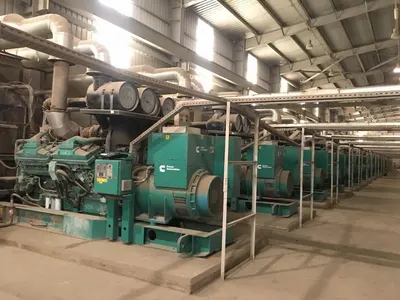

    3. 25 units diesel gensets (Cummins C2250 D5, 50 Hz, 400 V, 1500 rpm – 2000 kva prime power)
    4. Radiator @ 50 °C
    5. Radiator is a standard unit attached directly to the engine

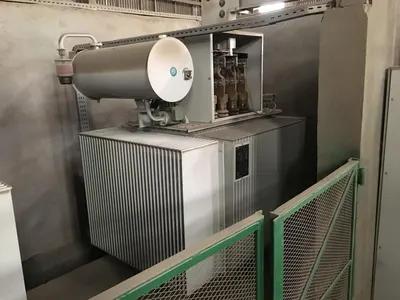

    6. 25 units transformers (ABB / 2 MW – 11000 kV / 400 V)

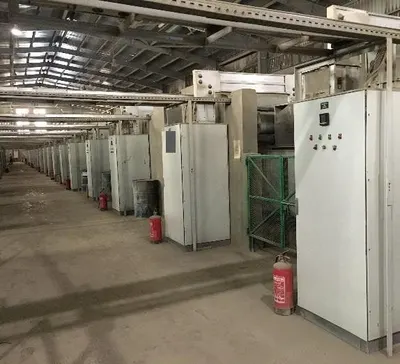

    7. 25 lv panels

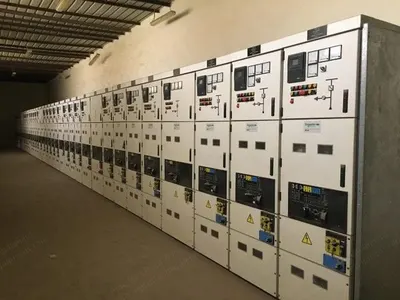

    8. Switchgear panels, scada panel
    9. 20 fuel tanks (50 ton / tank)
  3. Engine Specifications
    1. Manufacturer: Cummins
    2. Model: QSK60-G4
    3. Nominal output: 2270 bhp @ 1500 rpm
    4. Speed: 1500 rpm
    5. Rotation: Clockwise
    6. Radiator: 50 °C
    7. Year of manufacture: 2010 and 2011
    8. Condition: Used and in excellent condition
  4. Alternator Specifications
    1. Manufacturer: Cummins Power Generation
    2. Model number: C2250 D5
    3. Class: H
    4. Output: 2250 kva standby / 2000 kva prime
    5. Frequency: 50 Hz
    6. Voltage: 400 V
    7. Control system: PCC3201
    8. Fuel use: Diesel
  5. Operation History
    1. The power plant was in operation from between 2011 to 2017 and supplied energy to a
