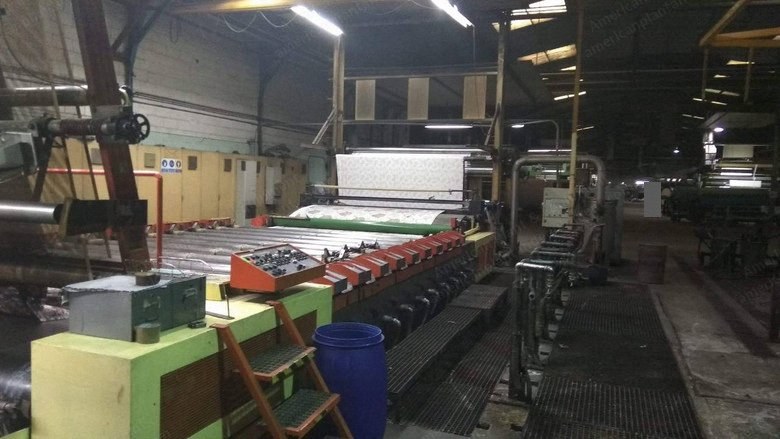

Johannes Zimmer, R94-V-EA-ACR/57, 1994, Rotary Printing Machine, 3200mm, 10 Colors

Description

Overview

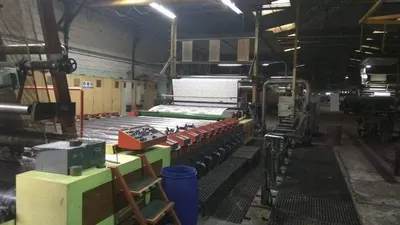

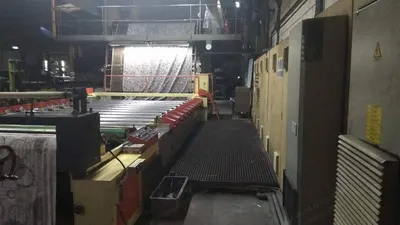

1. Johannes Zimmer rotary printing machine
2. Year: 1994
3. Machine model: R94-V-EA-ACR/57
4. Maximum printing width: 3200 mm
5. Number of colors: printing table for 12 and 10 colors installed
6. Mechanical speed: 0 - 100 m/min
7. Operating side: right
8. Color feeding side: left
9. Repeat sizes possible: 640-10260 mm
10. Electrical tension: 3 x 380 V 50 Hz
11. Dryer heated by: gas
Fabric Entry
1. J box
2. E&L fabric guiders pneumatic
3. Fabric opener E&L diagonal SW 757
4. Lint removing system: KE 30

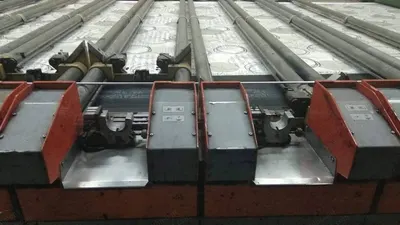

Printing Table
1. Glueing system: hydrosoluble
2. Thermoplast with heated pressure roller
3. Screen drive: individual with digital repeat setting
4. Repeat adjustment: digital 360 degree
5. Printing table is made for 12 colors but 10 installed
6. Magnet system type: thermostabil E 70 W
7. Color pipes: 1 set of 320 cams width
8. Color feeding pumps: pneumatic
9. Blanket washing system: brushes
Dryer and Fabric Exit
1. Model: TR III
2. Evaporation capacity: 1.200 kg/h
3. Exit with: J box and enrolling system

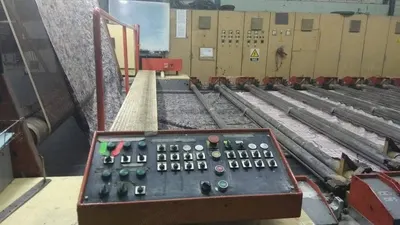

Command System
1. PC / ACR
Included Equipment
1. Quick change system by crane for 4 screens at the time
2. Colorpipe washing machine Cominox model: Polirot for 2800 mm and 3200 mm
3. Screen washing machine for max 4 screens at once, repeats from 640 to 1020 mm
Condition
1. Machine has been overhauled in 2017 and is in optimal conditions on mill floor
2. Machine can be inspected in running conditions
