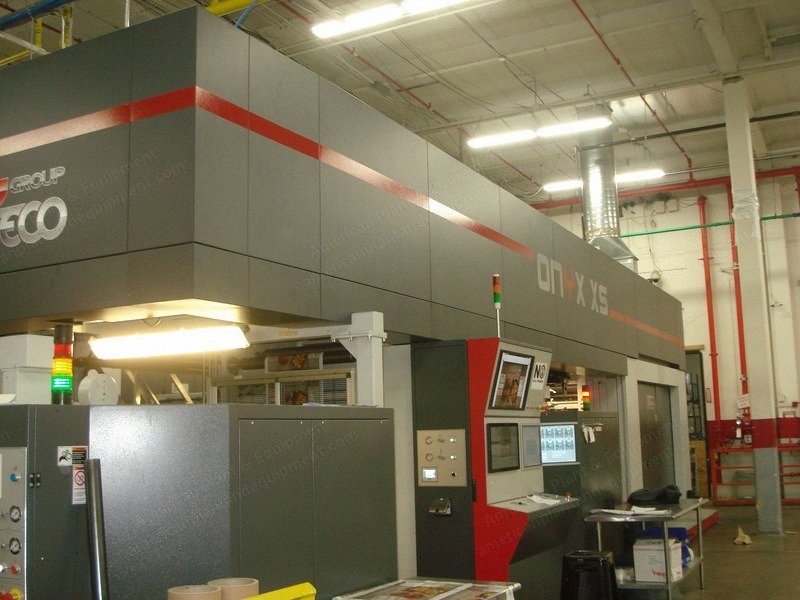

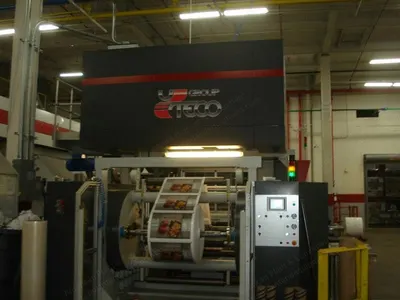

Uteco, Onyx 865XS, 2018, 41" Web Width, 8 Color, C.I. Flexographic Printing Press

Uteco, Onyx 865XS, 2018, 41" Web Width, 8 Color, C.I. Flexographic Printing Press Sold

Description

  1. Overview
    1. Uteco Onyx 865xs 41” 8 color C.I. flexographic printing press
    2. Year of manufacture: 2018
    3. Availability: immediate
    4. Inspection: in production
  2. Specifications
    1. Printing width: 1020 mm (40.19”)
    2. Number of colors: 8 (8+0), with chambered doctor blades
    3. C.I. drum diameter: 1525 mm (60”)
    4. Print repeat range: 310 to 650 mm (12.21” - 25.61”)
    5. Speed: 300 mpm (985 fpm)
    6. Substrates: BOPP, OPP, PE, paper
    7. Electrics: 480 VAC, 3PH, 60 Hz
  3. Unwind And Rewind
    1. Unwind type: automatic turret
    2. Unwind diameter: 810 mm (32”)
    3. Rewind type: automatic turret
    4. Rewind diameter: 740 mm (29”)
  4. Drying And Auxiliary Equipment
    1. Drying: gas fired, overhead and between color
    2. Lynex-S video web inspection system
    3. Fife edge guide
    4. Enercon corona treater
