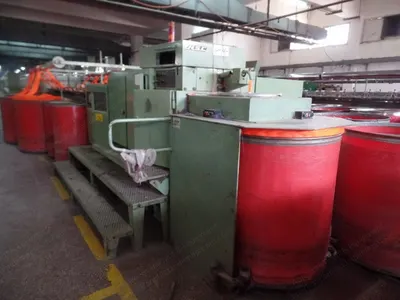

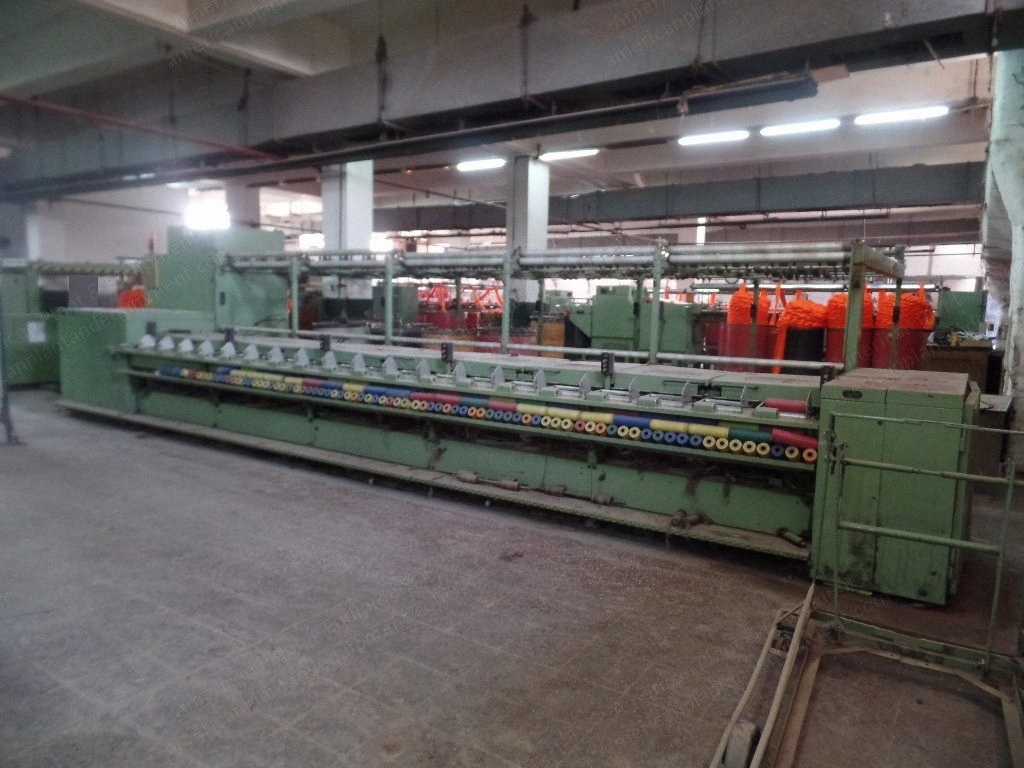

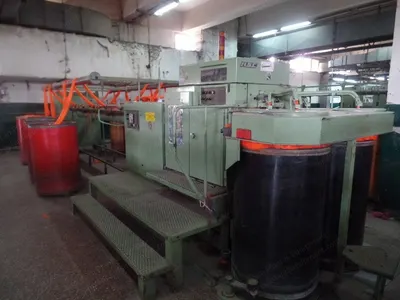

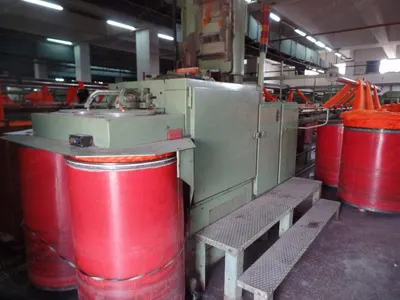

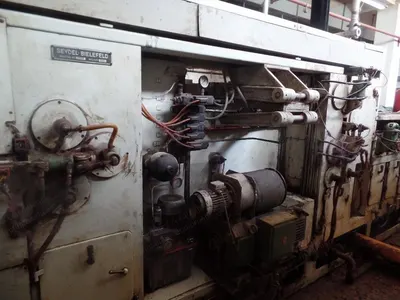

Description Overview Seydel stretch breaker 870 Year 1996 Includes overhead creel, heater plates, cooling conveyor for high bulk tops, sliver compactor on output, automatic can delivery Recommended in-feed weight: 120-220 ktex Filament fineness: 1-17 dtex Mean fibre length: 80-130 mm Sliver weight: 30-60 g/m Delivery speed: 240 meters per minute Practical output: 300-450 kg/hour Installed power: 115 kW Rebreaker Nsc schlumberger gc 15r5l10, year of manufacture 1996 Rebreaker with can creel and 1000 x 1200 manual coiler 5 roller breaking Maximum delivery speed: 500 m/min 270 mm wide head Inverter speed control Preparation Line Nsc schlumberger preparation line model gc15 Composed of three passages First Passage Autoleveller, year 1996 Can creel with manual can change Delivery: 1 sliver in 1 can, diameter 1000 x 1200 mm Second Passage Double coiler, year 1996 Can creel with manual can change Delivery: 2 slivers in 2 cans, diameter 700 x 1200 mm Third Passage Bi coiler, year 1996 Can creel with manual can change Delivery: 4 slivers in 2 cans, diameter 700 x 1200 mm Rubbing Frame Schlumberger fm8n horizontal rubbing frame 20 spindles, manual doffing, year 1996 355 mm pitch, 2 rovings per bobbin Input: 12 to 15 ktex according to material Roving weight: 0.66-5.5 nm Draft: 9 to 26 by gear box Nsc double apron drafting, draft apron 145 mm wide Rubbing speed: 1200 cycles per minute maximum Number of rubs: 5 to 8 per meter 300 mm bobbin Delivery speed up to 220 meters per minute
