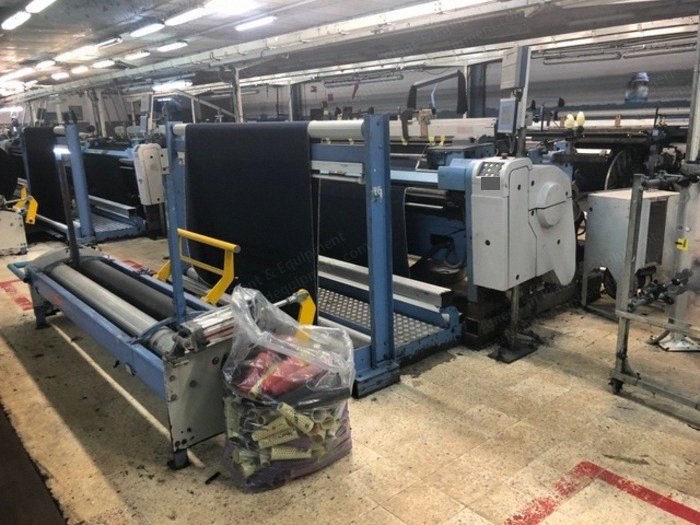

Sulzer, P7300 B220 N4 EP14 D12 R, 2004-2008, 220cm Working Width, 4 Colors, Cam Motion

Sulzer, P7300 B220 N4 EP14 D12 R, 2004-2008, 220cm Working Width, 4 Colors, Cam Motion

Description

  1. Overview
    1. Sulzer projectile weaving machines
    2. Model P7300 B220 N4 EP14 D12 R
    3. Reinforced version
    4. 8 machines from year 2004
    5. 6 machines from year 2008
  2. Specifications
    1. Electronic let off
    2. Warp tension system
    3. Year 2004 version with cam box with 14 levers
    4. Year 2008 version with cam box with 10 levers
    5. Electronic filling brake
    6. 4 color version
    7. Mechanical cloth take up
    8. Warp stop motion with 6 contact bars
  3. Accessories Per Machine
    1. 4 weft feeders, Iro Luna or similar, with panel and creel
    2. 10 heald frames (Grob, 13")
    3. 2 full warp beams, diameter: 1100 (7300 HP) mm or 1000 (7300)
    4. 4400 droppers
    5. 4400 heddles
    6. 1 Grob batching motion with vertical inspection and pneumatic unloader
