Fata Hunter, Aluminium Foil Manufacturing Complete Plant, 4000 Tons per Annum, 1000mm Web Width

Name: Fata Hunter, Aluminium Foil Manufacturing Complete Plant, 4000 Tons per Annum, 1000mm Web Width
Brand: Fata Hunter
SKU: T-4895

‹ Go Back Next Product ›

Description

Overview
1. Complete plant with a licensed capacity of 4000 tons per annum of foil and converted products.
2. Web width of 1000 mm.
3. Major products include bare foil, blisters and strip foil for pharma industry, cigarette laminate, confectionary foil, lidding foil, personal hygiene wraps, pet laminated foil, and others.
Land And Building
1. Located in 23 acres in Kollur Village, Sangareddy District, around 30 km from Hyderabad City.
2. Of the 23 acres, the plant is established in 11 acres and the balance 12 acres is developed as green belt.
3. Total built-up area at the site is 12,866 sq mtrs.

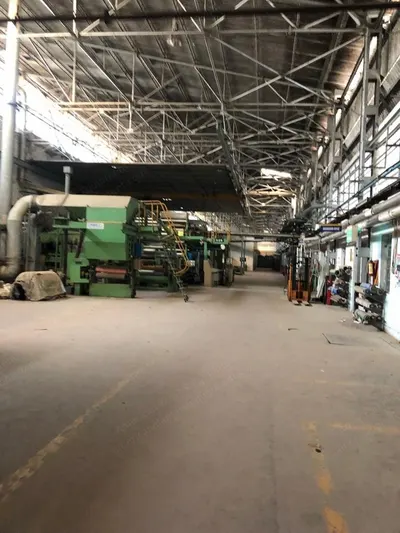

4. Plant area is 8868 sq mtrs comprising rolling bay and converting bay.

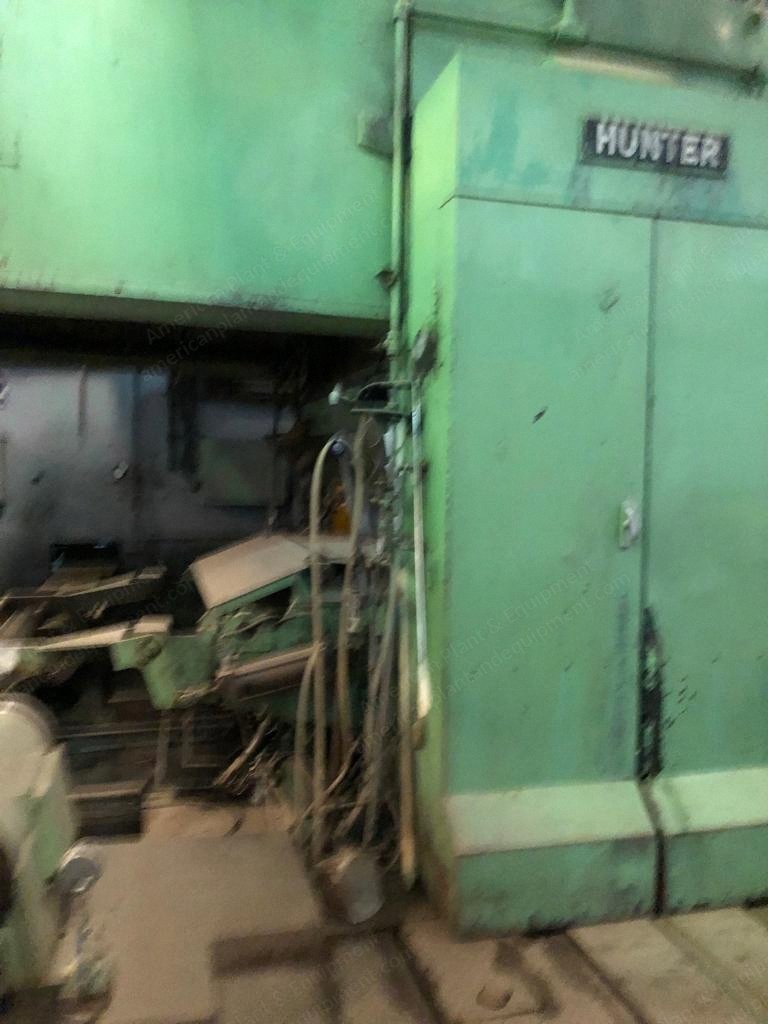

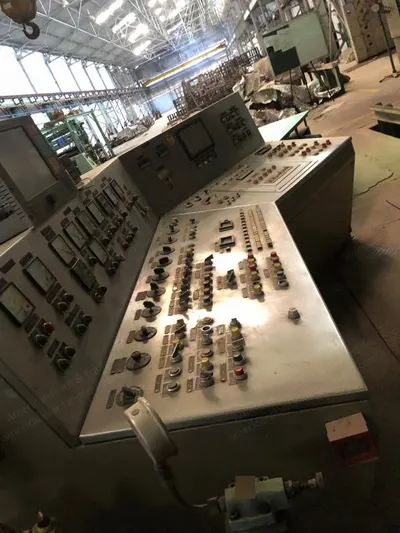

Machinery Overview
1. Plant machinery was designed and supplied by Fata Hunter and is capable of producing foil and laminates with a web width of 1000 mm.
2. Rolling plant is equipped with foil stock rewinding machine, universal foil cold rolling mill, foil separator, roll grinder, and annealing furnaces.

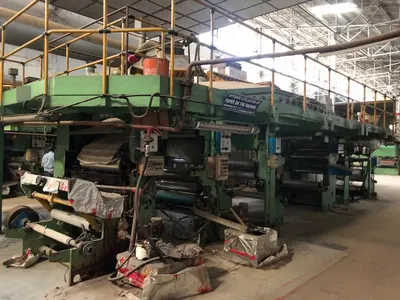

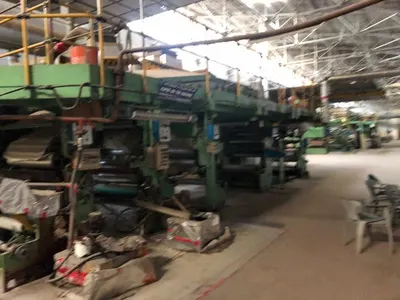

3. Converting plant is equipped with lamination machine, coating machine, extrusion coating machine, 5 color rotogravure printing machine, and needed slitters.
Machinery List
1. Foil stock rewinder: 1

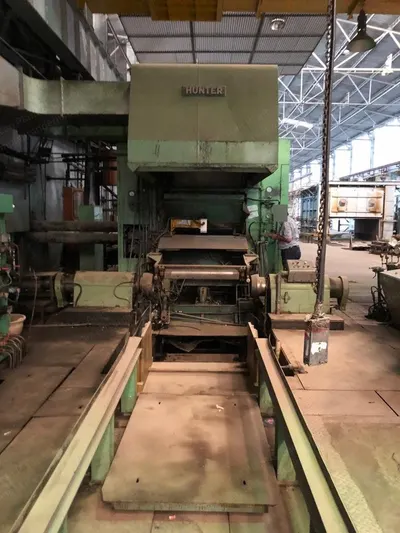

2. Universal rolling mill: 1
3. Foil separator: 1
4. Roll grinding: 1

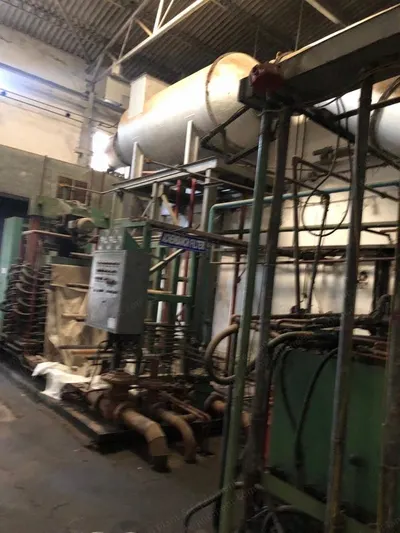

5. Annealing furnace: 3
6. Printing: 1
7. Wet/dry coating-laminating: 1
8. Extrusion coating and laminating: 1
9. Wet/dry wax coating-laminating: 1

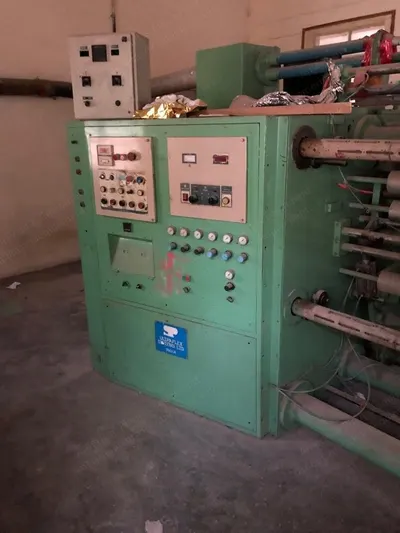

10. Slitting: 6
11. Doctoring: 3
12. Cable wrap slitters: 1
13. Scrap baling press: 2
14. Effluent treatment plant: 1
15. D G sets: 3
Item 001: Foil Stock Rewinder (A1)
1. Make: Stam, Germany.
2. Maximum strip thickness: 0.8 mm.
3. Minimum strip thickness: 0.26 mm.
4. Maximum strip width: 1100 mm.
5. Minimum strip width: 550 mm.
6. Coil weight: 3000 kg max.
7. Coil dimensions: 1200 mm od, 330 mm id core, max 370 mm.
8. Rewind spool: 350 id x 400 od x 1400 l.
9. Electric power: 70 kw.
10. Unwind tension: pneumatic brake with tension controller.
Item 002: Foil Separator (A3)
1. Make: Midi Machinery, Italy.
2. Maximum web width: 1050 mm.
3. Minimum web width: 530 mm.
4. Nominal width: 1100 mm.
5. Max speed: 800 mpm.
6. Max coil od on un-winder: 1200 mm.
7. Un-winder core dimension: 360 id x 400 od x 1400 l.
8. Max rewinder reel od: 600 mm.
9. Rewind core id: 76.2 mm and 152 mm.
10. Number of cuts: 3 center plus side trims.

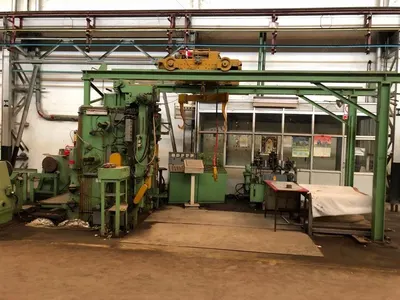

Item 003: Roll Grinding (C1)
1. Make: Herkules, Germany.
2. Model: W S E 300 x 3500.
3. Min. grinding diameter with new grinding wheel: 0 mm.
4. Max. grinding diameter with new grinding wheel: 600 mm.
5. Max. grinding diameter in any case: 670 mm.
6. Distance between centres: 3500 mm.
7. Grinding length: 3000 mm.
8. Heaviest work piece permitted in steadies: 4500 kg.
9. Heaviest work piece permitted between centers: 1500 kg.
10. Head stock working speed of roll: 12 to 120 rpm.
11. Work piece carriage speed: 50 to 3000 mm/minute.
12. Dc power of carriage drive: 5 hp.
13. Grinding wheel dimension: 600 od x 60 wt x 203 bore.
14. Grinding wheel speed: 400 to 1000 rpm.
15. Dc power of wheel drive: 16 hp.
16. Motorised rapid infeed: 350 mm/minute.
17. Motorised infeed: 2 mm/min (approx).
18. Automatic infeed at the reversing point: 0.01 to 0.09 mm.
19. Continuous infeed: 0.01 to 0.2 mm/minute.
20. Camber grinding max: 1.0 mm.
21. Grinding range: 1 mm on diameter.
22. Chamfer grinding: possible.

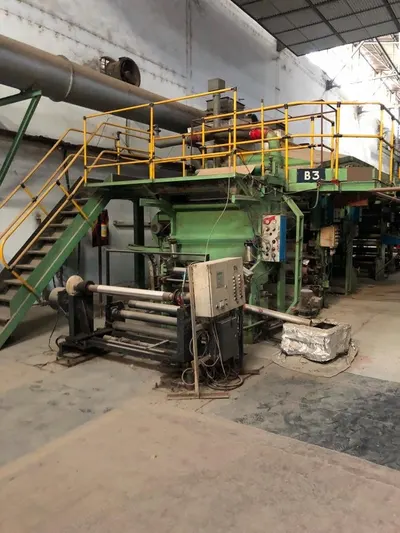

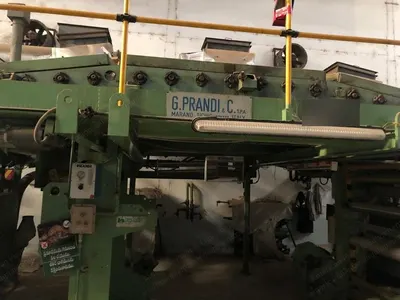

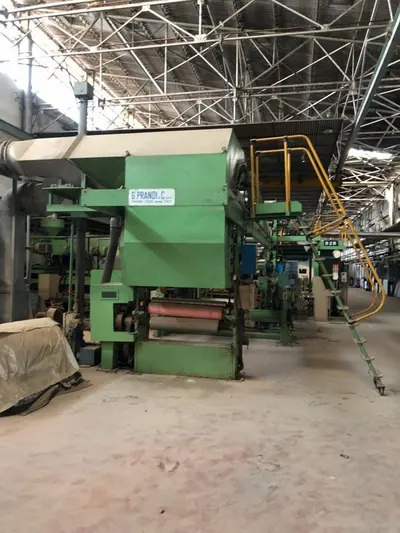

Item 004: Wet / Dry Coating-Laminating (B2A)
1. Make: Prandi Spa, Italy.
2. Model: P390.
3. Max od on un-winder: aluminium 600 mm, main un-winder 800 mm, secondary un-winder 800 mm.
4. Max od on re-winder: 1000 mm core id 76 mm.
5. Max coil weight: 1000 kg (un-winder and re-winder).
6. Coating units: gravure doctor blade application.
7. Laminating units: 3 roll applicator.
8. Cylinder dimensions: 210 mm od with 60 tpi screens.
9. Width of rollers: 1100 mm.
10. Maximum web width: 1000 mm.
11. Minimum web width: 500 mm.
12. Operating speed: 200 mm/minute.
13. Tension range: 5 to 50 kgs.
14. Max re-wind grammage: 160 gsm.
15. Heating chamber length: 16.2 mtrs.
16. Heating power: 210 k cal/hour.
17. Materials to be processed: soft aluminium 7 to 60 mic, paper 30 to 120 gsm, cello 28 to 60 gsm, pet 10 to 60 mic, ldpe 20 to 60 mic, nylon 15 to 50 mic.
18. Process: aluminium primer coating, aluminium hsl lacquering, aluminium to paper wet lamination, aluminium to film dry lamination, film to film dry lamination, aluminium to paper wet lamination and coating, aluminium to paper wet lamination and dry lamination to film.

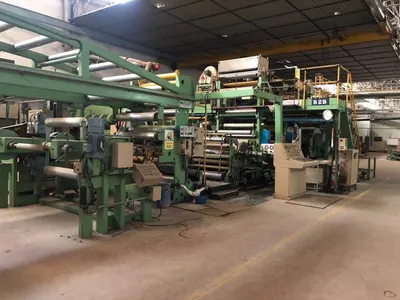

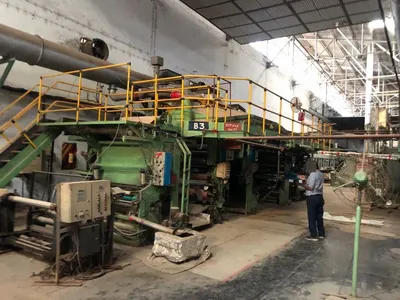

Item 005: Wet / Dry Wax Coating-Laminating (B3)
1. Make: Prandi Spa, Italy.
2. Model: P391.
3. Max od on un-winder: aluminium 600 mm, main un-winder 800 mm, secondary un-winder 800 mm.
4. Max od on re-winder: 1000 mm, core id 76 mm.
5. Max coil weight: 1000 kg (un-winder and re-winder).
6. Coating units: 2 roll applicator.
7. Laminating units: 3 roll applicator.
8. Cylinder dimensions: 210 mm od with 60 tpi screens.
9. Width of rollers: 1100 mm.
10. Maximum web width: 1000 mm.
11. Minimum web width: 500 mm.
12. Operating speed: 200 mm/minute.
13. Tension range: 5 to 50 kgs.
14. Max re-wind grammage: 160 gsm.
15. Heating chamber length: 19.8 mtrs.
16. Materials to be processed: soft aluminium 7 to 60 mic, paper 40 to 120 gsm, cello 28 to 60 gsm, pet 12 to 60 mic, ldpe 25 to 60 mic, nylon 15 to 50 mic.
17. Process: aluminium primer coating, aluminium hsl lacquering, aluminium to paper wet lamination, aluminium to film dry lamination, film to film dry lamination, aluminium to paper wet lamination and coating, aluminium to paper wet laminating and wax coating.

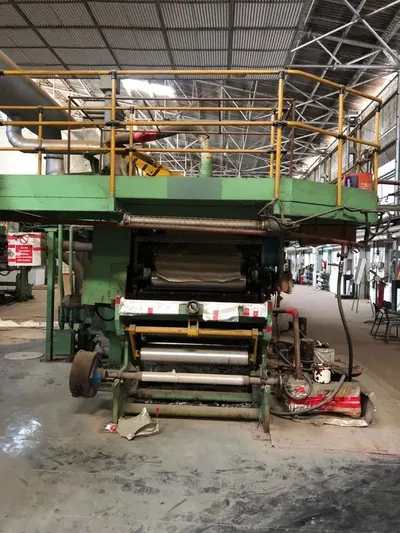

Item 006: Extrusion Coating And Laminating (B2B)
1. Make: Prandi Spa, Italy.
2. Maximum web width: 1100 mm.
3. Minimum web width: 550 mm.
4. Re-winder od max: 1200 mm.
5. Re-winder core id: 76 mm.
6. Un-winder reel od: 1000 mm max.
7. Mechanical speed: max 250 mtrs/minute, 100 mtrs/minute for foil over 50 mic.
8. Output speed: 220 mtrs/minute max, 90 mtrs/minute for foil over 50 mic.
9. Materials to be treated: soft aluminium 10 to 200 mic, paper 40 to 100 gsm, bopp 20 to 40 mic.
10. Resins to be extruded: ldpe 10 to 50 gsm at 280 kg/hour, hdpe 10 to 50 gsm at 140 kg/hour, e v a 10 to 50 gsm at 220 kg/hour, surlyn/nucrel 10 to 50 gsm at 220 kg/hour, pp 10 to 50 gsm at 200 kg/hour.
11. Secondary un-winder unwinds: soft aluminium foil 10 to 20 mic, rigid films 20 to 40 mic, plastic 25 to 80 mic.
12. Secondary un-winder maximum reel od: 600 mm.
13. Secondary un-winder core id: 76 mm.
14. Secondary un-winder tension on web: 3 to 30 kg.
15. Secondary un-winder automatic reel splice.
16. Laminating unit: chromium plated cooling drum 750 mm od, rubber covered pressure roller 160 mm od, chromium plated steel counter pressure roller 250 mm od.
17. Extruder make: Amut, Italy.
18. Extruder screw diameter: 120 mm.
19. Extruder l/d ratio: 30.
20. Extruder maximum screw revolution: 120/minute.
21. Extruder horizontal die width: 1300 mm.
22. Others: nitrided barrel with 6 temperature zones, lifting motion for adjusting coating heights 200 mm max, side lay motion to extrude on silicon roller (+/-) 50 mm, auxiliating motion for distribution of unevenness up to (+/-) 40 mm.
23. Rewinder unit maximum wind: not specified.

Additional Specifications

Specifications

Built-up Area	12,866 sq m
Capacity	4000 Tons per Annum
Major Machinery	['Foil Stock Rewinder (Stam, Germany)', 'Universal Rolling Mill', 'Foil Separator (Midi Machinery, Italy)', 'Roll Grinding', 'Annealing Furnace (3 units)', '5 Color Rotogravure Printing Machine', 'Wet/Dry Coating-Laminating', 'Extrusion Coating and Laminating', 'Wet/Dry Wax Coating-Laminating', 'Slitting (6 units)', 'Doctoring (3 units)', 'Cable Wrap Slitters', 'Scrap Baling Press (2 units)', 'Effluent Treatment Plant', 'D G Sets (3 units)']

Dimensions

Working width	1,000 mm
