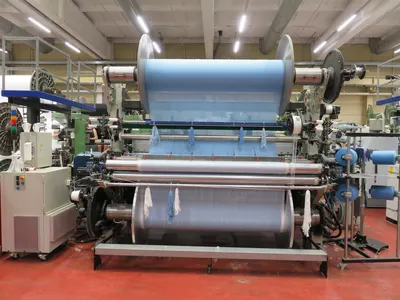

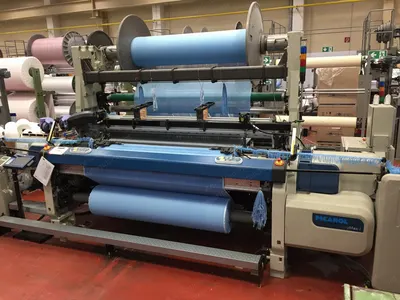

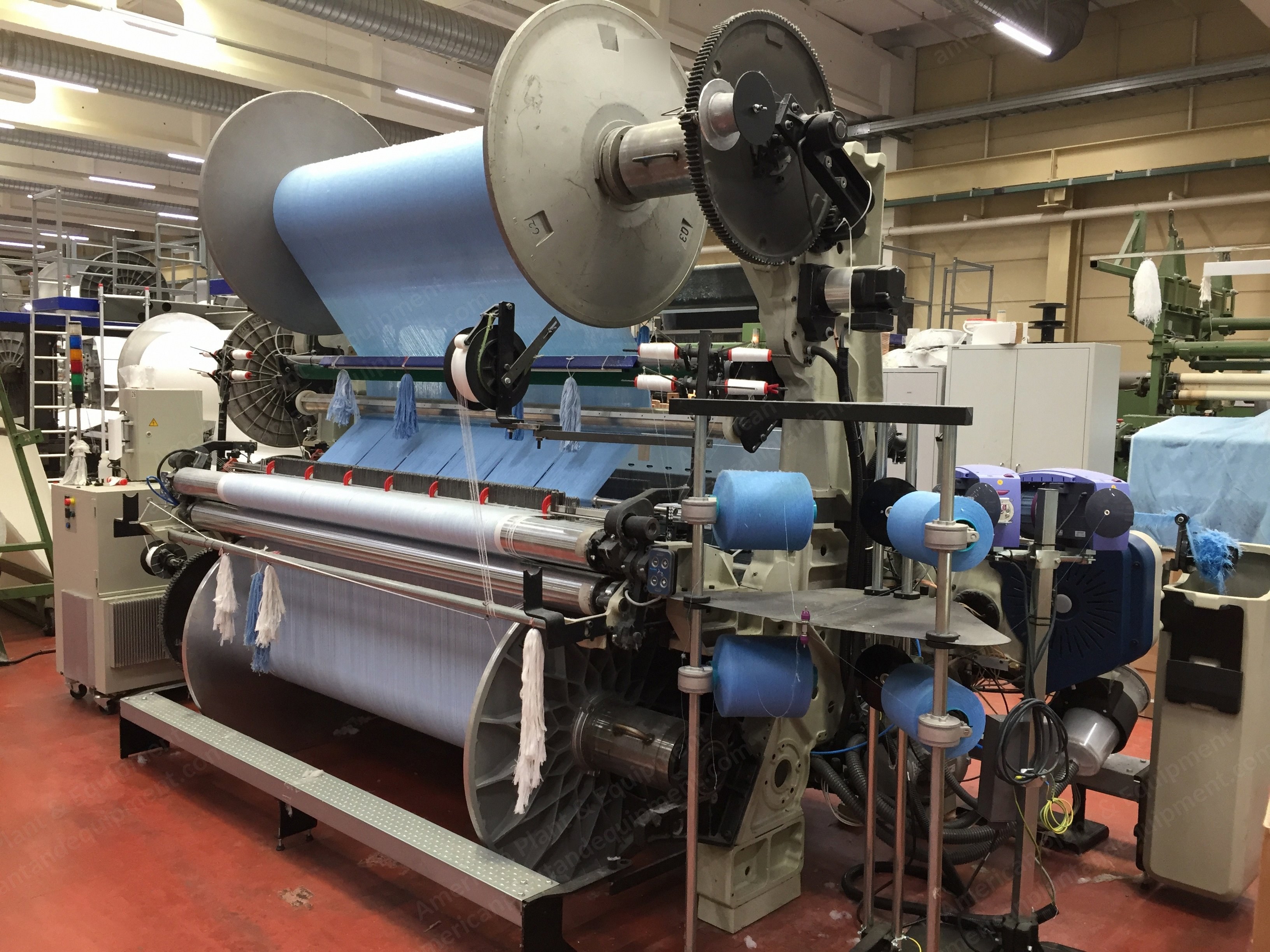

Picanol, TerryMax-I-2-R 230, 2016, Terry Weaving Machine, 230cm, Staubli Dobby S3020, 530 RPM

Picanol, TerryMax-I-2-R 230, 2016, Terry Weaving Machine, 230cm, Staubli Dobby S3020, 530 RPM

Description

  1. Overview
    1. Picanol Terrymax-i-2-r 230 terry weaving machine
    2. Year 2016

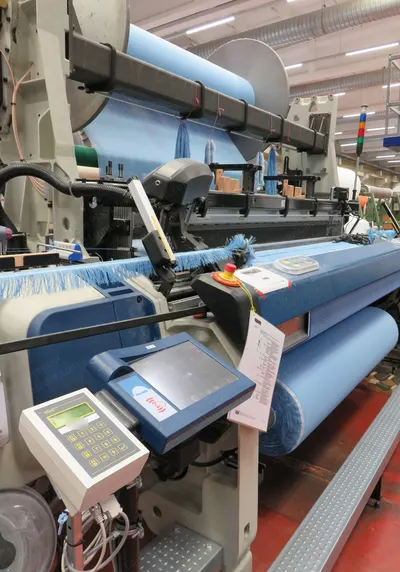

    3. Integrated microprocessor control with touchscreen and interactive display
  2. Specifications
    1. Max speed 530 rpm
    2. Weight approx. 6000 kgs
    3. Dimensions 5500 mm x 2000 mm
    4. Machine has run only 545 hours
  3. Dobby And Heald Frames
    1. Staubli dobby type S3020 E3* DRC / C4CAN
    2. Shafts: Derix aluminium profiles
    3. 20 heald frames type Alu Power 124
  4. Included Equipment
    1. 2 LGL Smart Vector weft feeders
    2. 1 creel for 4 bobbins
