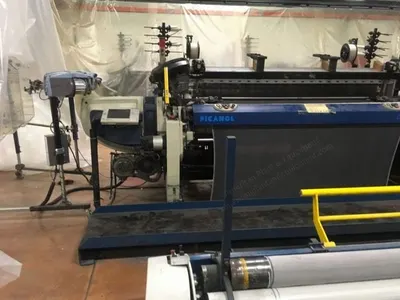

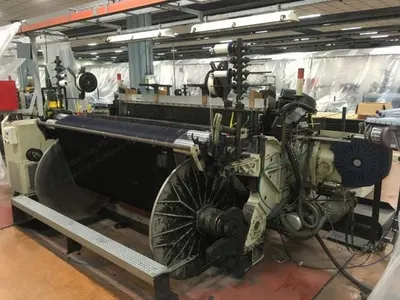

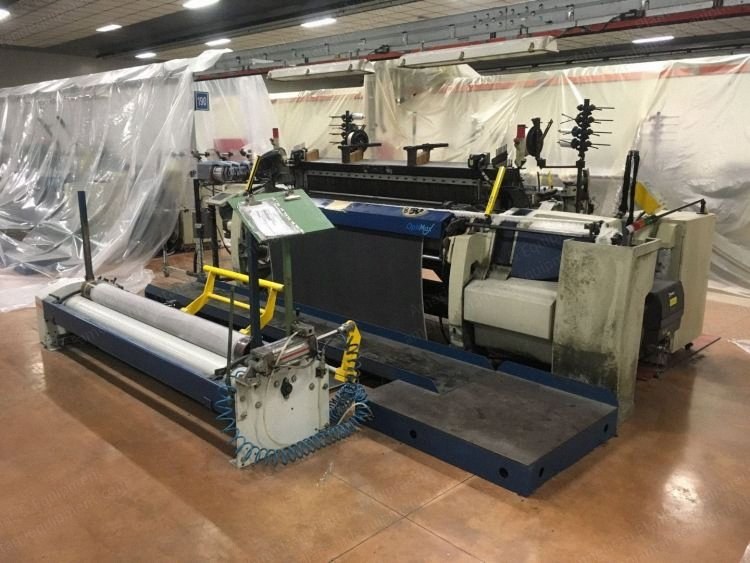

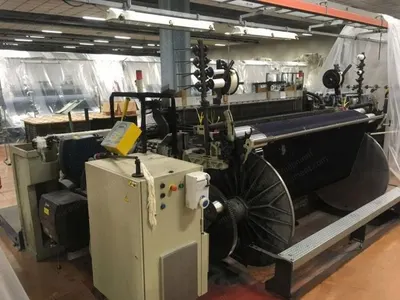

Picanol, Optimax-4-R-220, 2010, Rapier Loom, 2200mm Working Width, 4 Colors, Staubli Dobby

Picanol, Optimax-4-R-220, 2010, Rapier Loom, 2200mm Working Width, 4 Colors, Staubli Dobby

Description

  1. Overview
    1. Picanol Optimax-4-R-220 rapier loom
    2. Category: Picanol rapier looms
    3. Brand: Picanol
    4. Type: Optimax-4-R-220
    5. Year of construction: 2010
  2. Specifications
    1. Working width: 2200 mm
    2. Free flight with flat gripper
    3. Maximum speed: 620 rpm

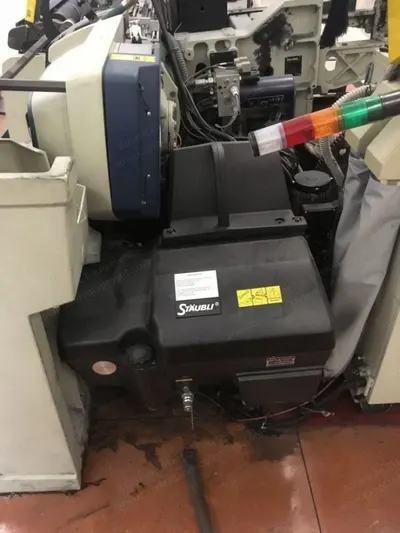

    4. Electronic Staubli dobby type 2861 (1x prototype dobby 3200 series) with 16 levers
    5. Sumo type 1300w, Elo, Etu
    6. 4 weft colors
    7. Eltex for 4 colors
    8. 4 weft accumulators Lgl Progress Vector
    9. Rotary weft cutter
    10. 14 heald frames Drc 2 type 13" j
    11. 4500 heddles
    12. 4500 droppers
    13. Grob warp detection with 5 detection bars
    14. Double warp tension rolls Ø 120 mm with springs R+L, Elsy R+L
    15. Electrical waste cutter R+L, waste system + dustbin
    16. 1.5 warp beam Ø 1100 mm type Q1
    17. 1 batching motion Grob
    18. Key board display
    19. With Ldec
  3. Condition
    1. Used industrial machine
  4. Included
    1. All listed components and accessories as described
    1. Not specified
