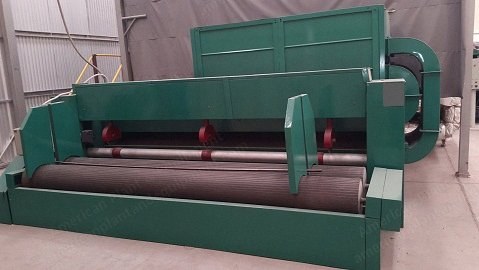

Thermobonding Line, 3300mm Final Width, Reconditioned

Thermobonding Line, 3300mm Final Width, Reconditioned

Description

  1. Overview
    1. Line for elaboration of wadding with final width of the blanket 3300 mm.
    2. It is totally reconditioned.
  2. Item 001: Opening And Mixing Equipment
    1. Un opening and mixing equipment, with pneumatic loading system of the fibers towards the wadding elaboration line.
  3. Item 002: Card Bands
    1. One set of 2-card bands “for” width 2200 mm with randomized veil dependent output system.

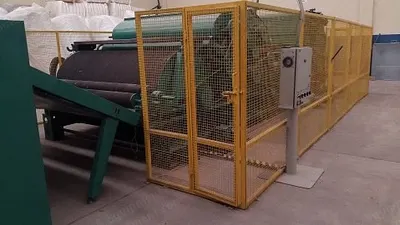

  4. Item 003: Crosslaper
    1. Crosslaper entrance width 2600 mm, exit 3300 mm finished blanket model JT 3000 classic.
    2. Crosslaper - blanket former - with electronic inverter equipment P.L.S. of adjustable speed to obtain different grammages.
    3. Conveyor belts of Uffenghimer brand fibers with special antistatic cover.
    4. Mounted on bearings with special design for high speed in the cross of the veils.
    5. Electronic photocells to vary the widths of the blanket to obtain.
    6. With extended arm and adjustable to the height of the veil receiver of the discharger -doofer- card.
    7. Anti-turbulence structure and design and air brakes to protect the veil in its cross-over travel in the shape of the blanket.
    8. It has a system of ironing the veils in the shuttle car by means of bright baffle plates for the disappearance of "v" marks or other type on the pancake blanket, leaving it flat and smooth, without defects or wrinkles (prior to the entrance of the oven).
    9. In addition with its equipment of cylinders pressers with regulation by means of pressure according to the grammages to be made guaranteeing a perfect finish.

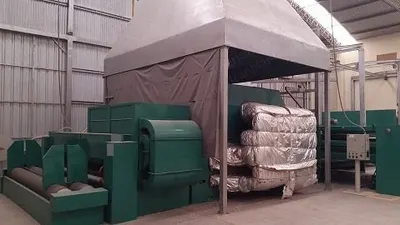

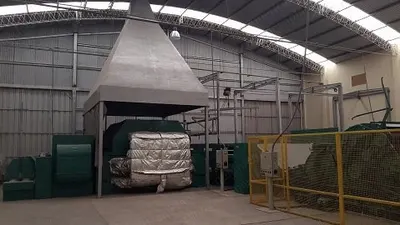

  5. Item 004: Thermobonding Oven
    1. Thermobonding oven width 3300 mm.
    2. It elaborates wadding by thermofusion of fibers of low melting point (thermobonding).
    3. Different useful widths of the thermobonding oven mod. class W 3000 at the customer's request.
    4. Gas heated, with automatic programmable electronic modulating flame burner, at different temperatures according to the desired grammages.
    5. It has a self-recirculating air system by means of its injection nozzles, and a special turbine for regulating the pressure volume, by a programmable electronic inverters.
    6. Adjustable ironing rolls for the different weights of the finished blanket prior to winding.
    7. Special teflon conveyor belt coated for high temperatures, non-deformable.
    8. Cooling equipment of the finished blanket, thermoshock system for the firmness, paralysis of the fibers, greater volume and solidity in the finished batt.
    9. External structure with removable covers, for easy access to the interior. These covers are reinforced by a insulation of thermal mineral wool.
    10. Furling and equipment of longitudinal cutting blades adjustable to the different widths to be obtained, and refining the selvedges.
    11. It includes electronic remote control panel with its thermal circuits and inverter equipment for the variation and regulation of all its movements.
    12. Automatic stop buttons in the four corners of the machine for automatic safety cutting of the production line.
    13. Thermal protection in all its electronic circuits.
    14. Electronic system of programmable cutting of the meters of the finished wadding.
    15. Option of gas heating or electrical system with a special resistors.
  6. Item 005: Included Equipment
    1. Includes general command board of the whole line.
    2. 3 years of extended guarantee on the line for elaboration of budgeted guata.
