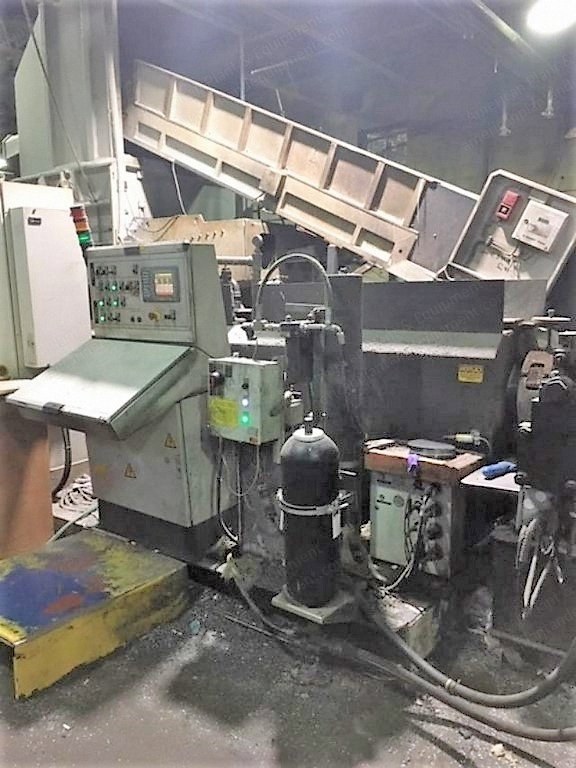

NGR, X:Gran 165, 2009, 165mm Screw, 1200 kg/hr Capacity, 370 kW Extruder Motor

NGR, X:Gran 165, 2009, 165mm Screw, 1200 kg/hr Capacity, 370 kW Extruder Motor

Description

  1. Overview
    1. Reclaim extrusion line
    2. New 2009
    3. Under power in plant
  2. Materials Processed
    1. Pe, pp, ldpe, hdpe, mdpe
  3. Extruder Specifications
    1. Screw diameter: 165 mm
    2. Output: up to 1200 kg/hour (2645 lbs./hour)
    3. L/d ratio: 40:1
    4. Extruder motor: 370 kw (500 hp)
    5. Heating barrel zones: 12
    6. Air cooled
  4. Screen Changer & Pressure
    1. Screen changer: Xaloy eh80 hydraulic screen changer
    2. Pressure sensor: 4000 psi, mpi
  5. Degassing & Feeding
    1. Double degassing
    2. Feed screw: 45 kw
  6. Cutter-Compactor & Downstream
    1. Cutter-compactor/agglomerator
    2. Cutter-compactor motor: 132 kw
    3. Hot granulation die face cutter
    4. Water bath
    5. Centrifuge

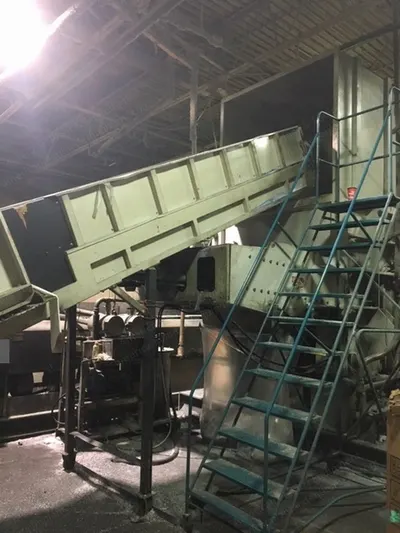

  7. Conveyor & Detection
    1. Conveyor belt with Mesutronic metal detector
    2. Metron 05
  8. Vacuum & Drying
    1. Vacuum pumps: 4 kw
    2. Dryer motors: 15 kw
  9. Electrical
    1. Power: 480 volt, 3 phase
