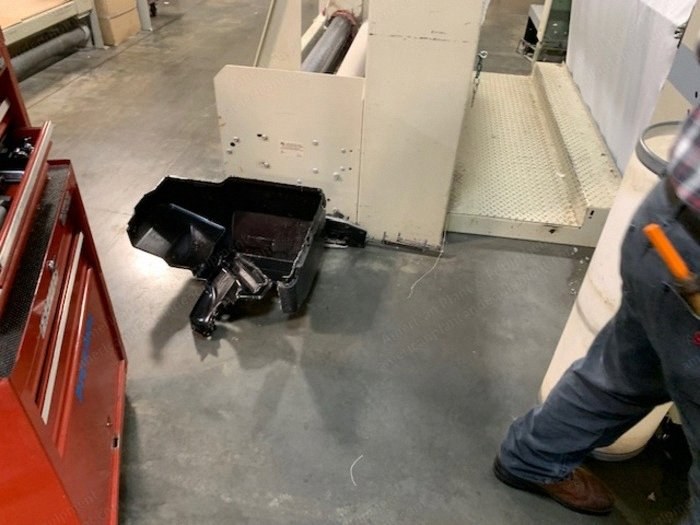

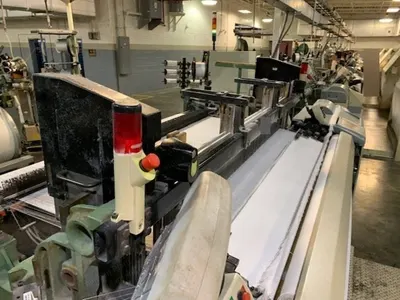

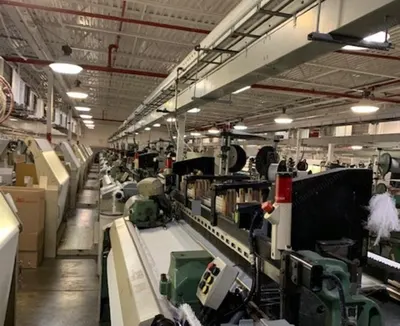

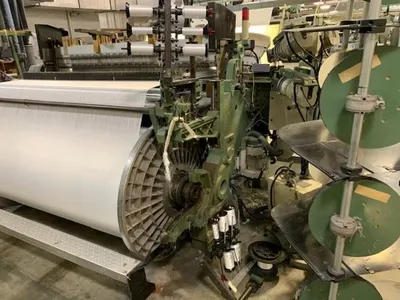

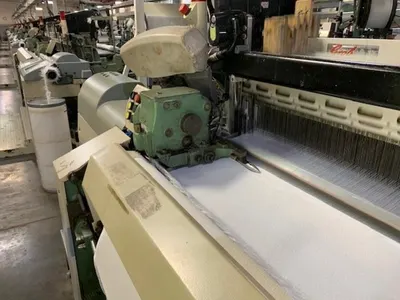

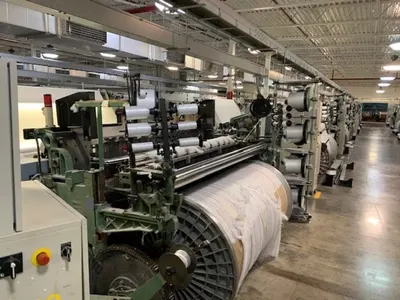

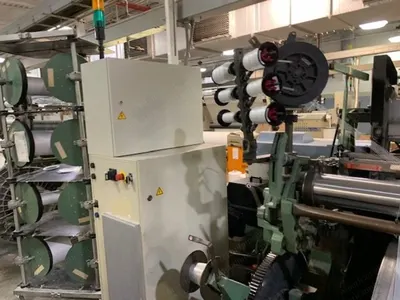

Picanol, Gamma-4-R, 1999, 1900mm Width, 4 Colors, Staubli 2861 Dobby

Picanol, Gamma-4-R, 1999, 1900mm Width, 4 Colors, Staubli 2861 Dobby

Description

  1. Overview

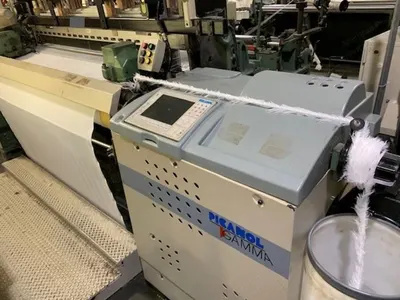

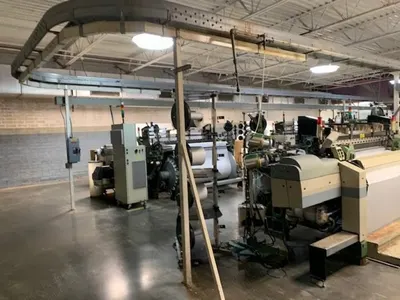

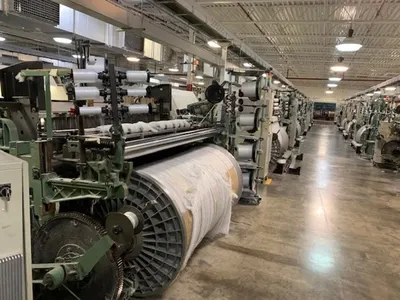

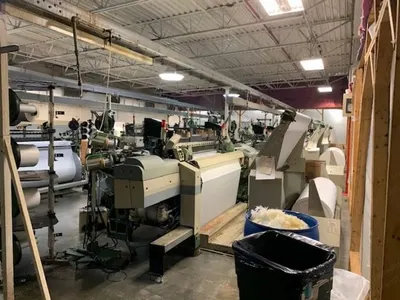

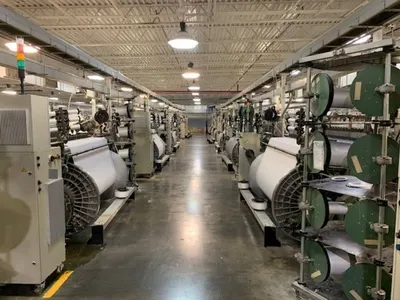

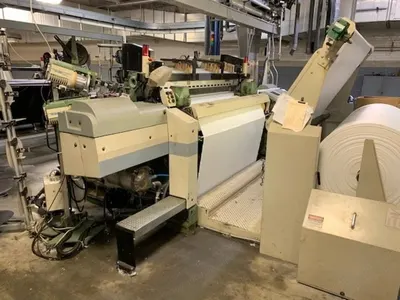

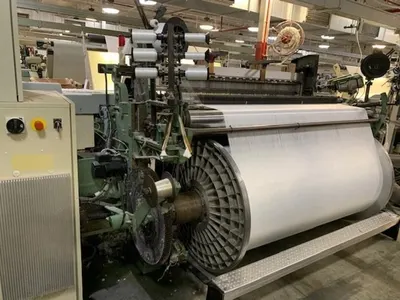

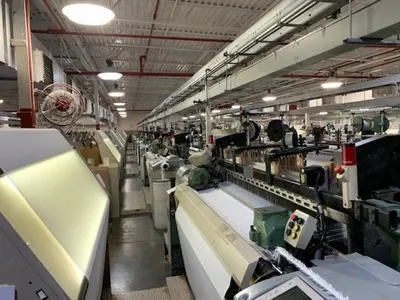

    1. Picanol Gamma-4-R air-jet weaving looms
    2. Year 1999
    3. Width 1900 mm
    4. All looms with Sumo motor allowing for speed adjustment with push of a button
    5. All machines running now, scheduled production stop December 21st
    6. Machines are running synthetic fabrics, only using OEM parts

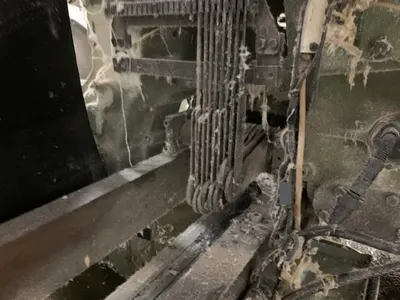

  2. Dobby and Harness

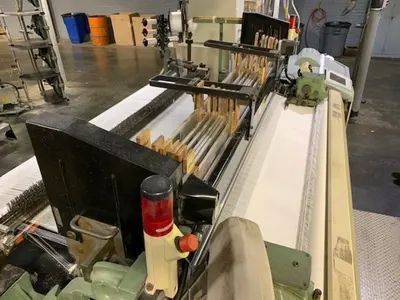

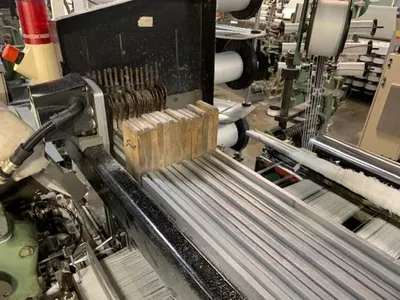

    1. With Staubli 2861 dobby with 20 lever capacity
    2. Average of 8 harness frames per loom
    3. 32 looms with 16 harness drives
    4. 24 looms with 8 harness drives
  3. Weft and Stop Motion

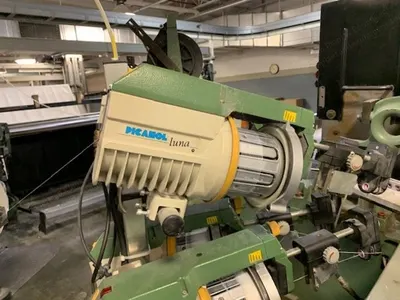

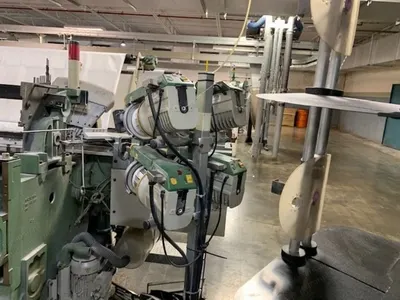

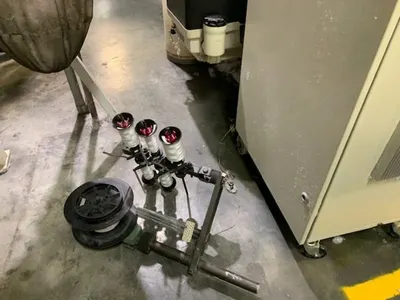

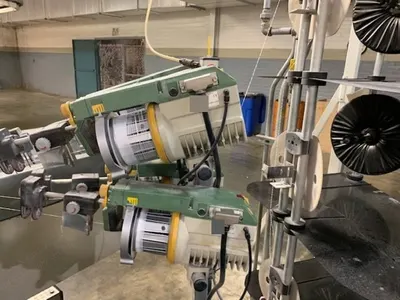

    1. 4 colors with 2 Picanol Luna weft accumulators

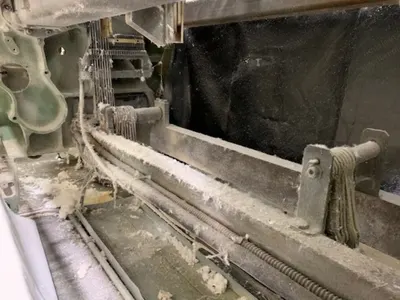

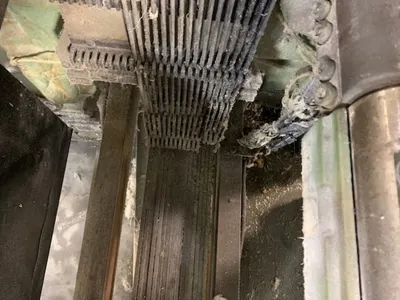

    2. 4 stop motion bars with droppers as fitted
  4. Upgrades and Features
    1. 46 looms upgraded in 2014 with LDEC system (10 no LDEC)

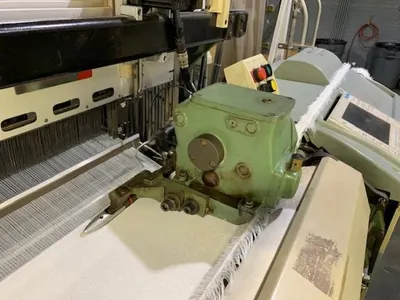

    2. 24 looms with side tuckers

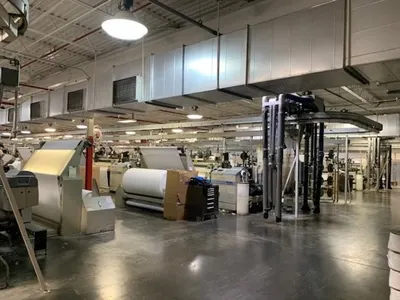

    3. Batching unit with lighted inspection board
  5. Performance and Fabric Range
    1. Looms with side tuckers running at 500 rpm
    2. Looms without side tuckers running at 550 rpm
    3. Minimum fabric width 51 in and maximum fabric width 75 in
