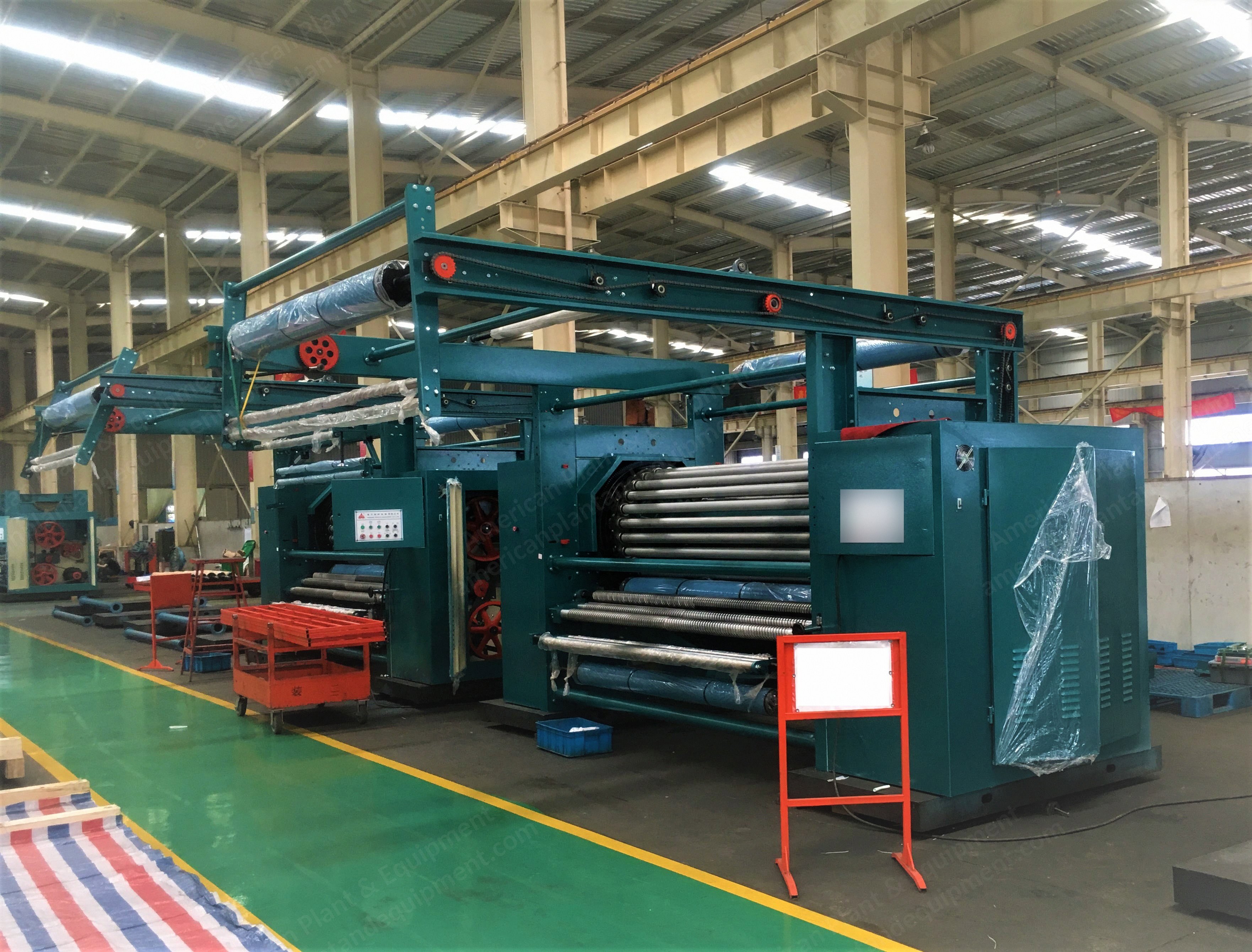

NovaStar, DG511, Working Width 2400mm, 36 Rollers, 42.4kW (New)

NovaStar, DG511, Working Width 2400mm, 36 Rollers, 42.4kW

Description

  1. Overview
    1. With expanding roller at the inlet of machine
    2. With center device
    3. With suction device
  2. Main Specifications
    1. Machine width: 2500 mm
    2. Working width: 2400 mm
    3. Fabric speed: 10-40 m/min
    4. Roller quantity: 36 pcs
    5. Roller diameter: 70 mm
    6. Drum speed: 60-90 r/min
    7. Machine power: 42.4 kW
    8. Power consumption: 20 kW
    9. Fan power: 7.5 kW
    10. Overall dimensions: 4000 × 5190 × 2950 mm
    11. Machine weight: 7500 kg
  3. Spare Parts
    1. Raising roller: 2 pcs
    2. Ring V-belt for raising roller: 8 pcs
    3. Tool for tandem
    4. Usual tool: 1 set
    5. Fillet wound tool: 1 pc
