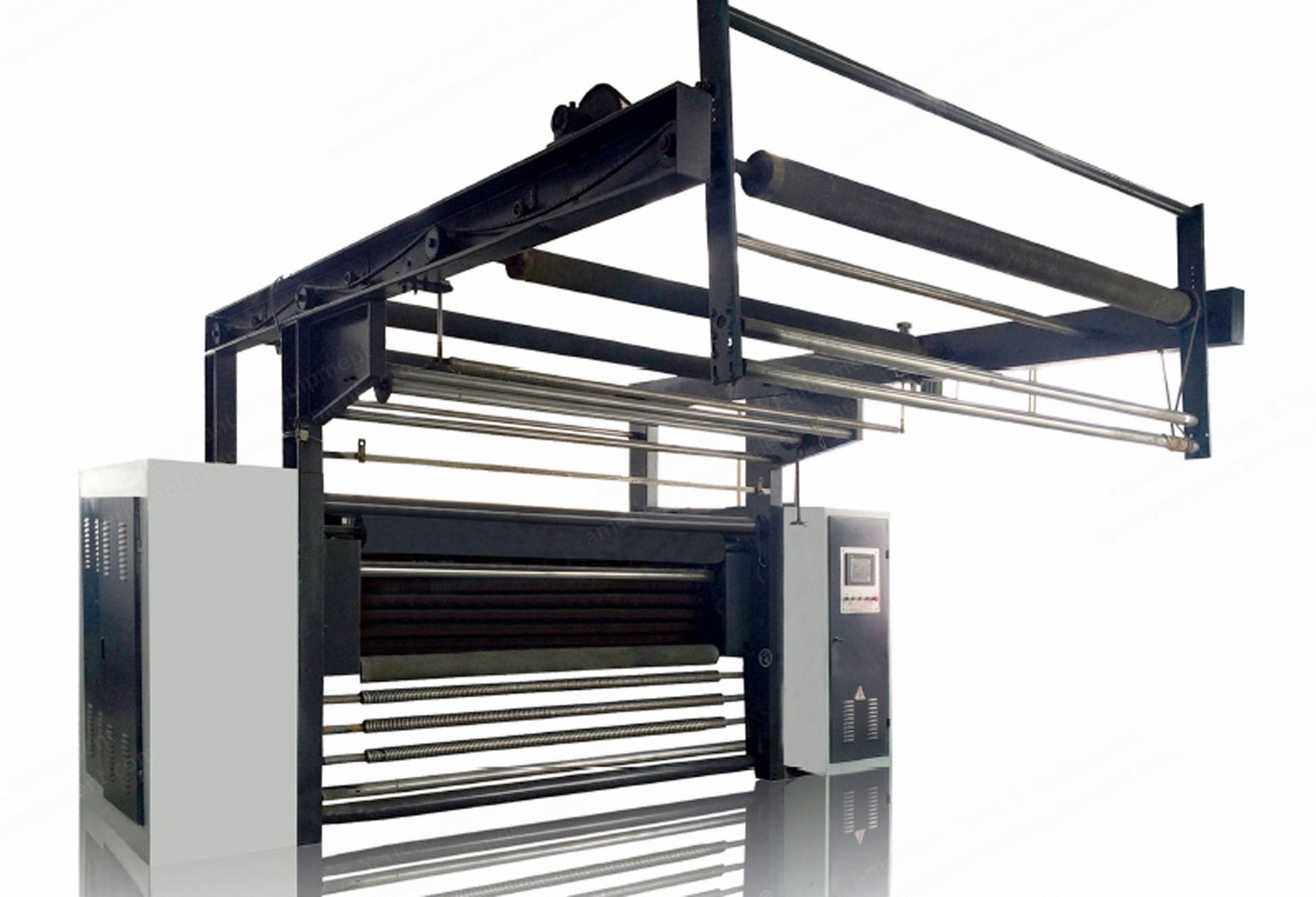

NovaStar, DG512, Brushing Machine, Working Width 2500mm, 24 Rollers (New)

NovaStar, DG512, Brushing Machine, Working Width 2500mm, 24 Rollers

Description

  1. Overview
    1. DG512 brushing machine
    2. Working width: 2500 mm
    3. Overall dimension: 4700 x 4300 x 3236 mm
    4. Machine weight: 4000 kg
  2. Technical Specifications
    1. Install power: 37.8 kW
    2. Adjustable production speed: 25-40 m/min
    3. Drum speed: 65-130 rpm
    4. Number of brushing rollers: 24
    5. Diameter of brushing roller: 68 mm
    6. Touch screen control: yes
    7. With fillet
  3. Features
    1. Adopts drum structure.
    2. With 24 brushing rollers installed, the contact surface between the brush and fabric is highly increased.
    3. Full automatic inverter and touch screen control.
    4. Fabric tension and speed parameters can be saved in the system.
    5. Automatic feedback function.
    6. Automatic fabric feeding device installed.
    7. Installed with 24 brushing rollers and can be used for brushing coral fabric, etc.
    8. This product is suitable for fleece, coral cashmere, flannel carding finishing.
    9. Mainly through the surface of the fabric bristles to increase the thickness of the fabric surface, to erect hair, hair supple fabric surface effect.
