NovaStar, DG514, 2500mm Working Width, 4 Brushing Rollers, Brushing Machine
Scroll to zoom
100%
Description
Overview

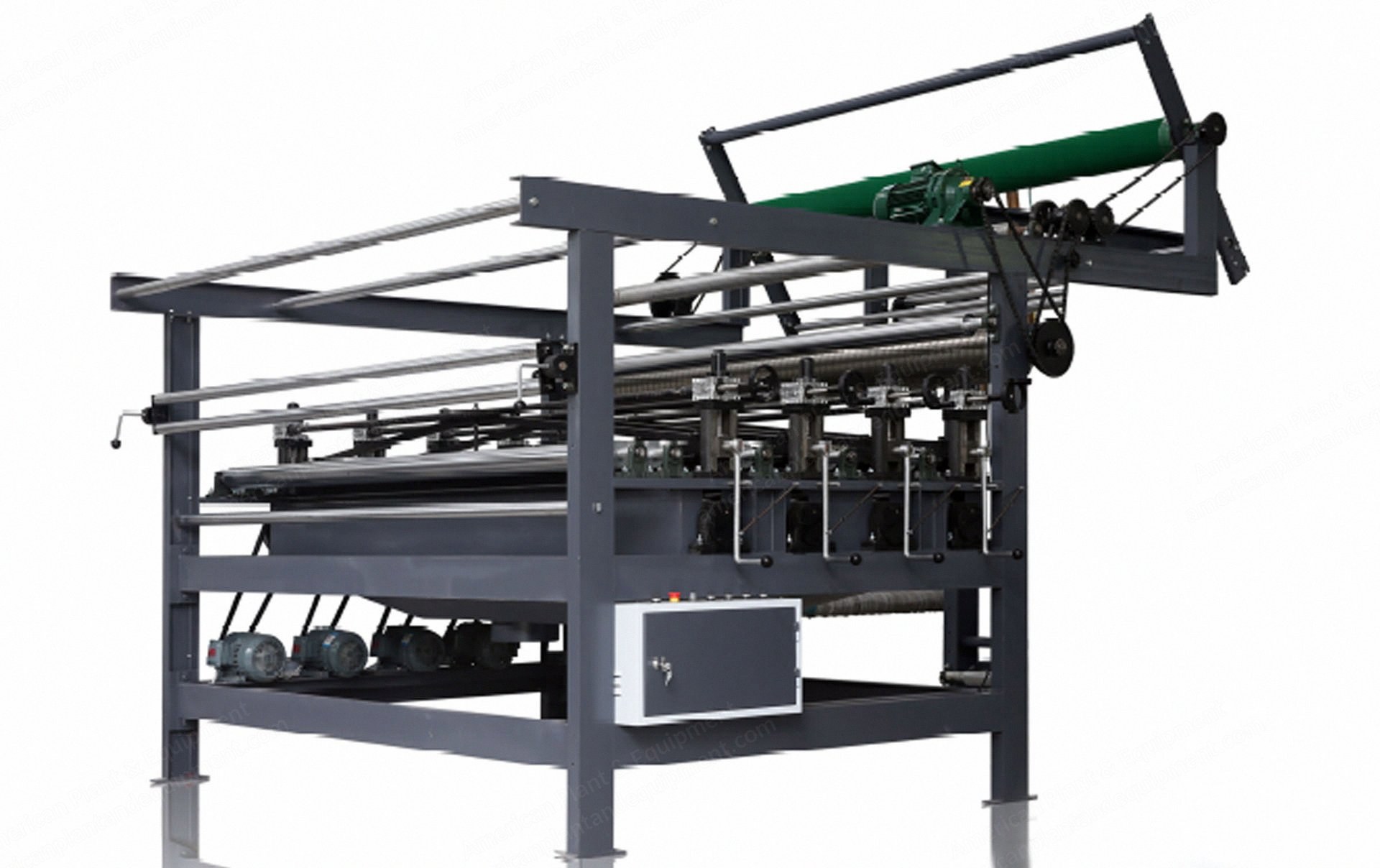

DG514 brushing machine
Working width 2500 mm
Based on traditional brushing machine, this machine is equipped with air cylinders on each spiral rod
This machine has 2 default brushing rollers
Extra brushing rollers can be customized to 4 or 6, etc.
This machine is an economical and practical choice for brushing knitting fabric surface solution twist, comb and blanket etc.
Technical Specifications
Install power 7.5 kW
Adjustable production speed 10 m/min
Number of air cylinders 4
Number of brushing rollers 4
Working width 2500 mm
Diameter of brushing roller Φ165 mm
Air pressure 6 bar
Overall dimension - 2500 mm 4 roller: 3500 x 2630 x 2773 mm
Features
One air cylinder is installed on the side of each individual brushing roller, making it easy and precise to change the level and control the brush roller
Simple structure, convenient installation and disassemble
Environment friendly, low energy consumption
Each brushing roller is driven by two motors on the rear side, and the distance between the brushing roller and fabric guiding base can be adjusted by the spiral rod
Machine structure includes reducer, traction roller, fabric guiding roller, swinging frame etc.
