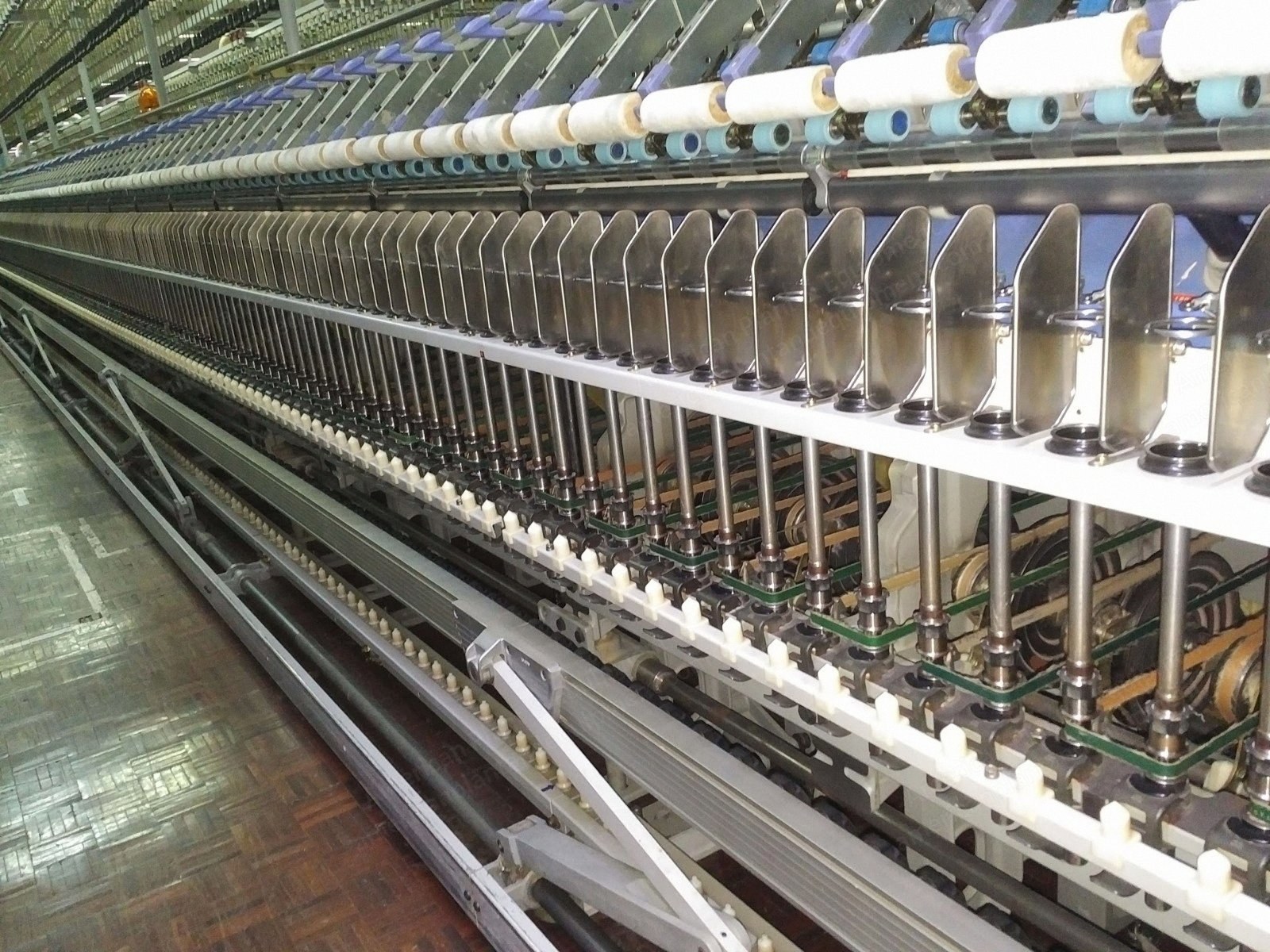

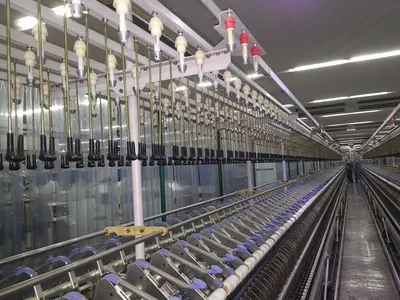

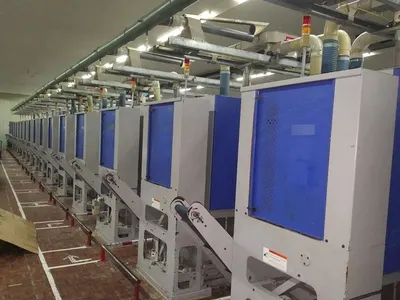

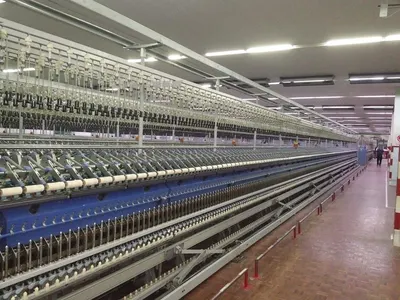

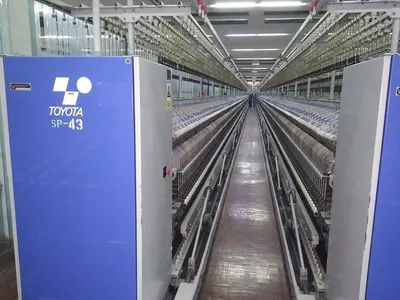

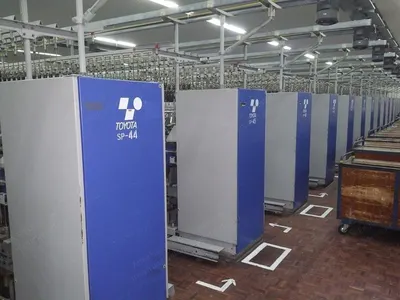

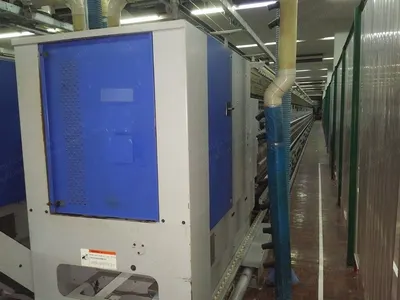

Toyoda, RX240SF-1008, 2000, 1008 Spindles, 75mm Spindle Gauge, 38mm Ring Diameter

Toyoda, RX240SF-1008, 2000, 1008 Spindles, 75mm Spindle Gauge, 38mm Ring Diameter

Description

  1. Overview
    1. Toyoda RX240SF ring spinning frames
    2. Year of construction 2000 to 2003
    3. Model: RX240SF-1008
    4. No. of spindles per machine: 1008 spindles
    5. Spindle gauge: 75 mm
    6. Bobbin length (lift): 210 (185) mm
    7. No. of spindles per staff: 8 spindles
    8. Fibre (length) to be used: up to 38 mm
    9. Kind of fibre: combed/carded cotton
  2. Driving System
    1. Spindle drive system: 4-spindle tape (11 mm, TS5)
    2. Spindle driving pulley: made by steel
    3. Tape tension pulley: NTN-JPU70
    4. Spindle speed regulating apparatus: inverter (stepless speed change system)
    5. Spindle speed change program: with
    6. Kind of twist: Z twist

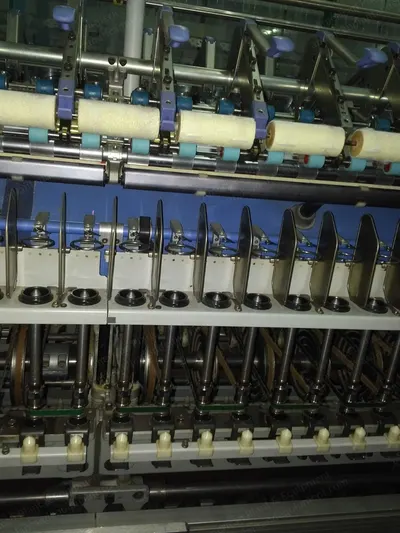

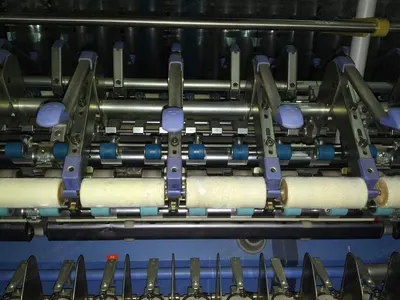

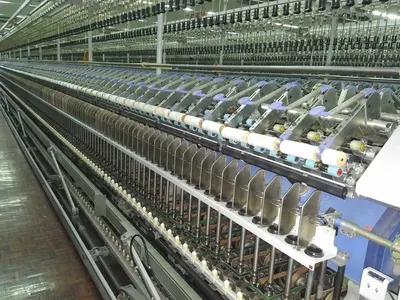

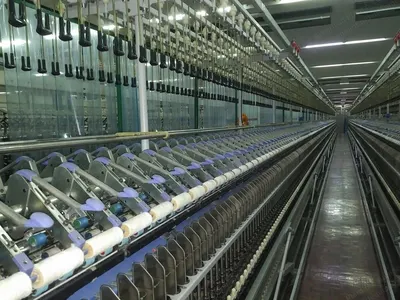

  3. Draft Part
    1. Drafting system: 3-line 2-zone double apron drafting system
    2. Angle of roller stand: 45 deg.
    3. Bottom roller driving system: mechanical
    4. Neck bearing: SKF-UL30, needle bearing
    5. Bottom roller diameter: F 27 x M 27 x B 27 mm
    6. Weighting arm: Toyoda A100
    7. Cradle: Toyoda B35
    8. Tenser gauge: yellow, lilac, white
    9. Front and back / top roller arbor maker/type: SKF
    10. Middle / top roller arbor maker/type: SKF
    11. Top and bottom apron maker: Hokushin
    12. Top apron type: 3040/3243
    13. Bottom apron type: 3050/539
    14. Bottom apron tension system: long system (with plating)
    15. Trumpet type: individual type (3 x 5 mm)
    16. Traverse: twin traverse (6, 8, 10 mm selectable type)
  4. Clearer
    1. Front top clearer: 2 spindles clearer roller
    2. Front bottom clearer: nil
    3. Back bottom clearer: stationary pad type

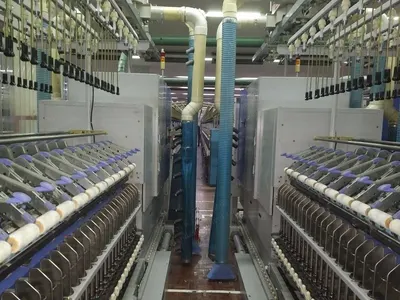

  5. Waste Collection System (Toyoda)
    1. Pneumatic system: flute type (3.5 mm x 9 mm)
    2. Pneumatic motor: 5.5 kW
    3. Direction of exhaust air: to the pit
    4. Waste collection system: by manual
  6. Spindle Part
    1. Running part: button tip with aluminum sleeve (for 210 mm bobbin)
    2. Maker of running part: Texparts, type CS1
    3. Diameter of waster cutter: 31 mm
    4. Diameter of warve: 18.5 mm (Toyoda standard)
    5. Spindle lock method: hook type
    6. Spindle brake: knee brake
    7. Spindle insert: Novibra HP-S68 (NASA/3)
  7. Ring Part
    1. Ring maker and type: Kanai Primat FF
    2. Ring inside diameter: 38 mm
    3. Flange width: 3.20 mm (RR-M)
    4. Setting diameter: 50.8 mm
    5. Traveler clearer: universal type for 2 spindles
    6. Ring plate type: standard
    7. Balloon control ring type: Yamauchi brand, round type
    8. Balloon control ring diameter: 46 mm
    9. Separator: plastic (special surface with nickel plating)
    10. Anti node ring: Kanpatsu, round type (standard)
  8. Lifting Motion
    1. Lifting system: screw shaft type positive lifting mechanism
    2. Shaping motion: cop wind
    3. Lifting system of balloon control ring: 2-step motion type
    4. Lifting system of lappet: individual
    5. One chase length: 41-75 mm standard
    6. Thread lappet type: steel (with spring)
    7. Type of snail wire: Taftride spiral 4 mm diameter (for Z twist only)

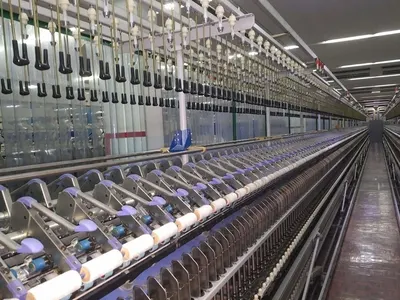

  9. Creel
    1. Type of creel: standard umbrella creel
    2. Row of creel: 4 rows
    3. Dimension of roving bobbin: 146 x 406 mm
    4. Flyer lift: 406 mm (16)
    5. Feeding system of roving: single roving
    6. Bobbin hangar brake: 4G
    7. Height from floor to roof: 3300 mm or more
    8. Overhead cleaner: included Luwa Japan D-type
    9. Dust collector for Luwa: with
  10. Function Panel
    1. Function panel type: graphic display (new graphic panel)
    2. Language of the function panel: in English
    3. Setting: ring rail lifting, condition of cop formation, spindle speed controls, etc.
    4. Indication unit: yarn count, Ne, delivery length, min. unit, etc.
    5. Monitoring: spindle rpm, delivery speed and length, twister performance, etc.
    6. Shift indicator: up to 4-shift
  11. Spinning Conditions / Gearing
    1. Kind of fibre: cotton 100%
    2. Range of yarn count to be spun: Ne 20, 30, 40 - 80S
    3. Motor pulley with machine: 18,000 rpm (max. mechanical speed 25,000 rpm)
    4. Out end gearing: with
  12. Stationary Autodoffer, Model SCD
    1. Type: automatic doffing
    2. Linkage winder maker: nil
    3. Doffing system: doffing equipment fixed on ring spinning frame
    4. All spindles are doffed at same time
    5. Empty bobbins are received once at the bar positioned middle of machine
    6. Bobbin transportation (peg tray system) transportation speed of peg tray is max. 24 pcs/min.
    7. Peg tray for ring spinning frame area is arranged by Toyoda
    8. Interlocking motion between adjoining machine during doffing: with (terminal block only)
    9. Time for doffing (stopping time of production): about 2 minutes
  13. Options Included (Automation)
    1. Automatic tilting and resetting: with
    2. Automatic swing of ring rail: with
    3. Ring rail repositioning motion for minimum yarn breakage at restart: with
    4. Automatic full bobbin stop: with
    5. Signal lamp for indicating full bobbin stop: with
    6. Automatic restart device: with
    7. Sudden stop with break: with
    8. Top bunch device: with
  14. Lubrication System
    1. Main and draft gearing: automatic oil dropping system
    2. Auxiliary gearing: grease lubrication (by manual)
