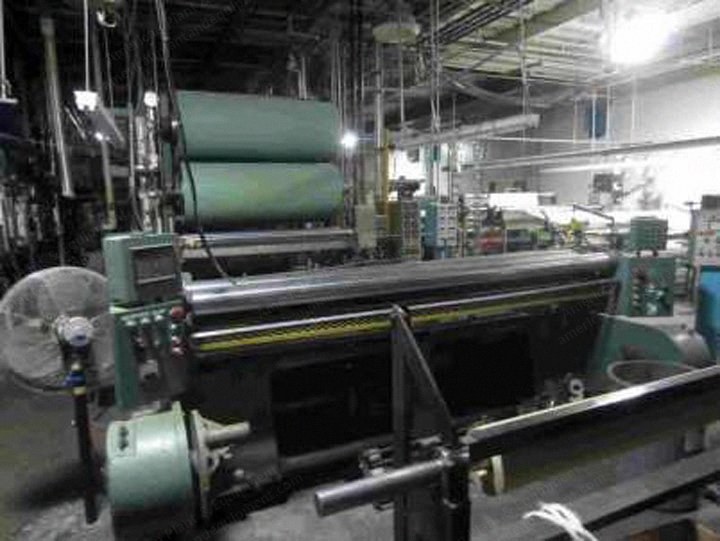

Ira L. Griffin, Filament Yarn Slasher, 1960, 16-Position Creel, 72 inch Max Beam Width, 20-Can Drying Section

Ira L. Griffin, Filament Yarn Slasher, 1960, 16-Position Creel, 72 inch Max Beam Width, 20-Can Drying Section

Description

  1. Overview
    1. Ira L. Griffin filament yarn slasher, year 1960
    2. 13,120-end capacity
    3. With 16-position section beam creel
    4. With rotary air brakes
  2. Beam Specifications
    1. 72 in maximum beam width x 40 in head diameter
  3. Size Boxes
    1. (4) 78 in wide size boxes
    2. Each with stainless steel/rubber covered rolls
  4. Drying Section
    1. 20-can steam drying section
    2. 80 in face x 30 in diameter pressurized cans
    3. Lubrication trough
  5. Lease Section
    1. Ira L. Griffin headway
    2. With 108 in delivery roll
  6. Controls and Detection
    1. Strandberg moisture detector
    2. Model M601 original controls
