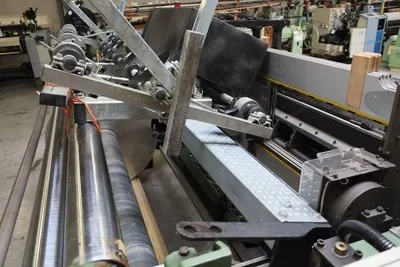

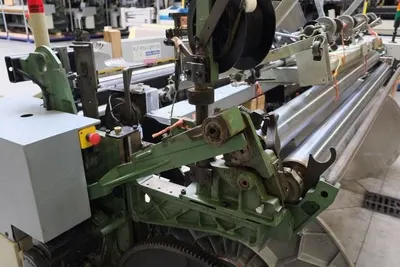

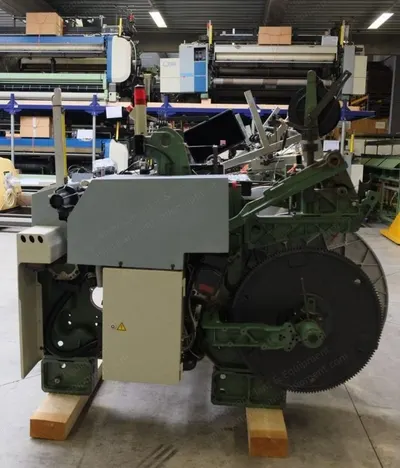

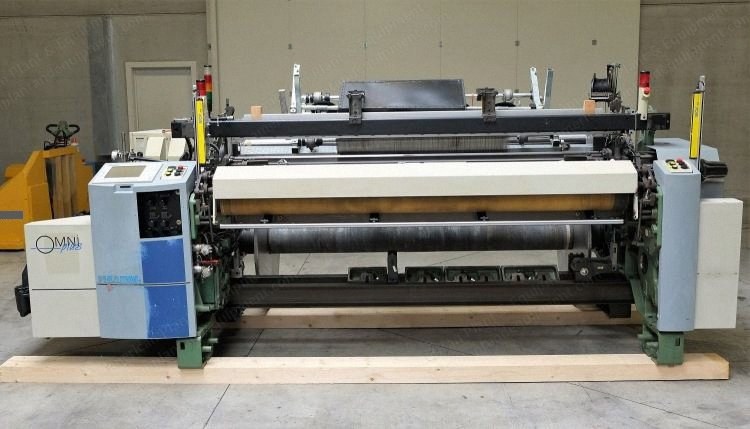

Picanol, Omniplus-2-P-220, 2001-2003, Air Jet Weaving Looms, 2200mm Working Width, 2 Colors, Staubli Cam Motion

Picanol, Omniplus-2-P-220, 2001-2003, Air Jet Weaving Looms, 2200mm Working Width, 2 Colors, Staubli Cam Motion

Description

  1. Overview
    1. Brand: Picanol
    2. Type: Omniplus-2-P-220
    3. Category: Picanol air jet looms
    4. Year of construction: 2001 to 2003
    5. Working width: 2200 mm
    6. 2 weft colors
  2. Item 001
    1. Year of construction: 2001

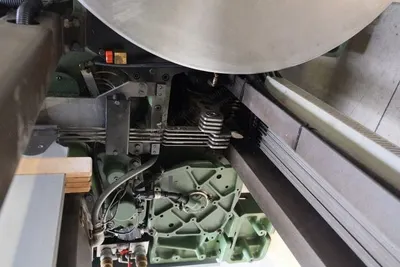

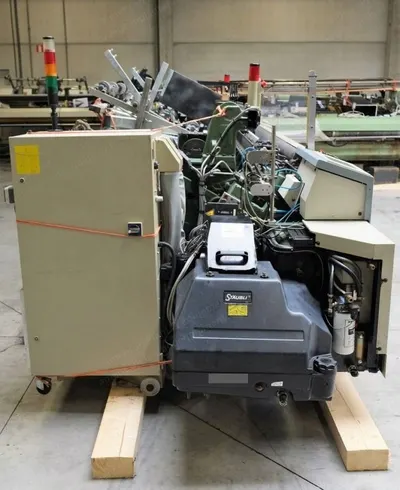

    2. With cam box Staubli 1661 6 levers (5x)
    3. And cam box Staubli 1761 8 levers (4x)
    4. Quantity: 9
  3. Item 002
    1. Year of construction: 2003
    2. With cam box Staubli type 1761A 8 levers
    3. Quantity: 11
  4. Equipment per loom
    1. Sumo, Elo, Etu, Pft, Pra
    2. 2 weft feeders Picanol type 1131plus with balloon breaker
    3. 1 feeder stand
    4. 1 bobbin creel
    5. Double warp tension rolls Ø 120 mm
    6. With easing motion right and left
    7. 6 heald frames DRC2 13” J-type
    8. Foreseen for warp stop motion but without warp stop motion
    9. 5000 heddles

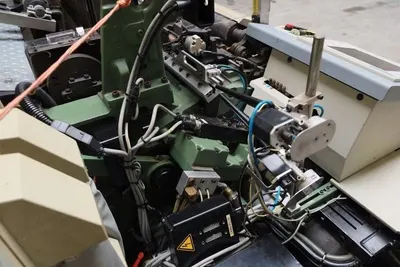

    10. Leno-device right and left
    11. Electrical waste cutter right

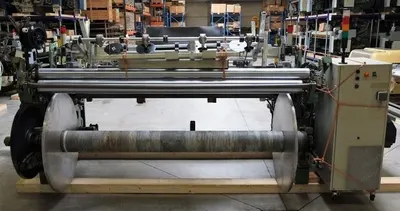

    12. 1 warp beam Ø 1000/1100 mm

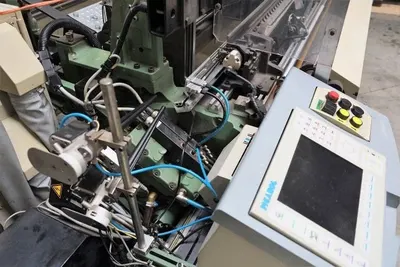

    13. Display
    14. Walking step
    15. Waste-system with dustbin
  5. With the lot of 20 looms
    1. 17 x external batching motion Neuenhauser DW3218 (T2400)
    2. 3 x internal cloth roll driving with cloth roller
