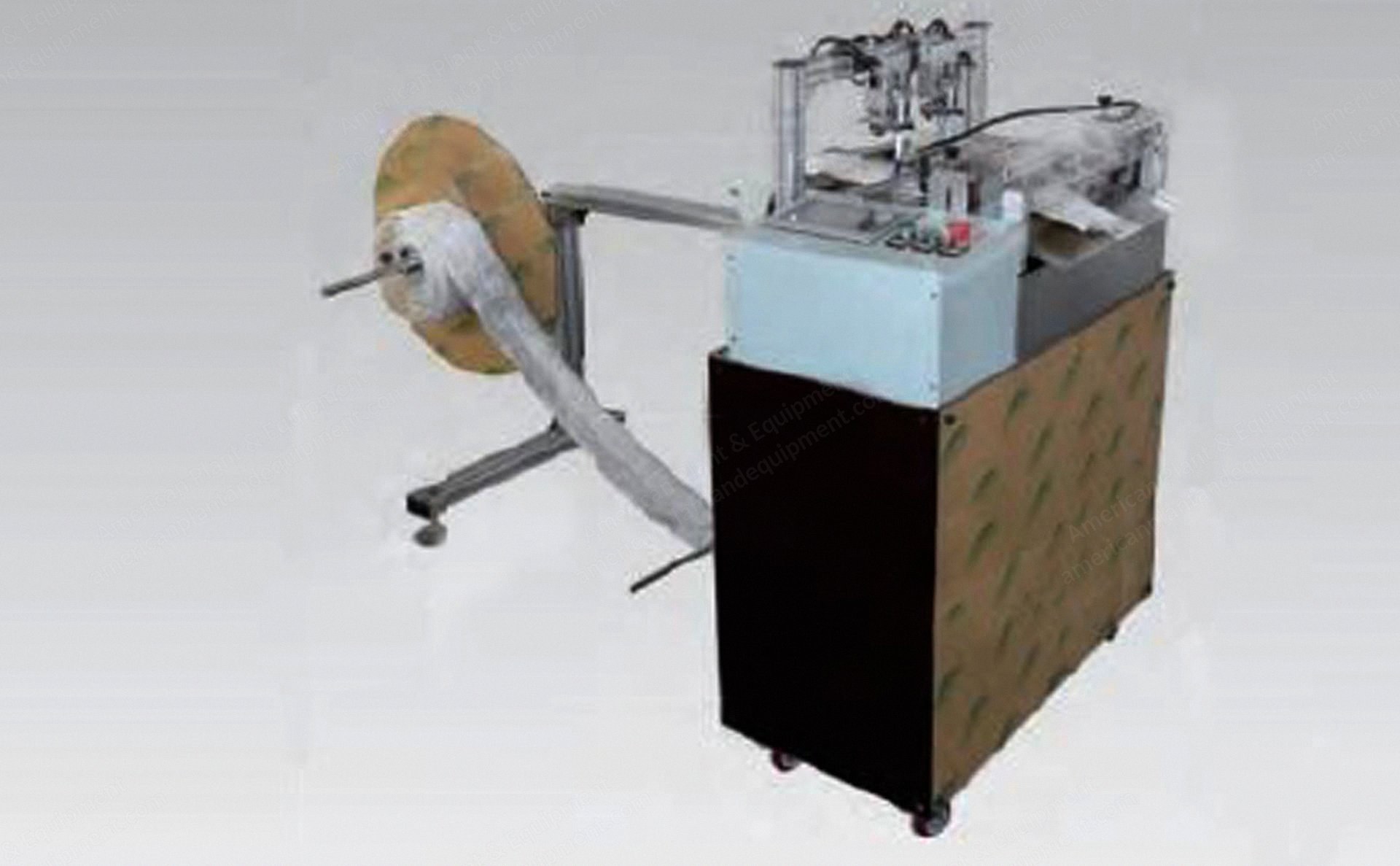

NovaStar, MB198, Automatic Border Measure and Cutting Machine, 460mm to 650mm Cutting Width, 220V (New)

NovaStar, MB198, Automatic Border Measure and Cutting Machine, 460mm to 650mm Cutting Width, 220V

Description

  1. Overview
    1. Automatic border measure and cutting machine
    2. Used for automatic cutting of mattress border
    3. Can cut to measure automatically
    4. Accurately controls the length of cutting
    5. Makes dot in appointed location and automatically cuts off
    6. Can make mattress handle, air hole position and sew the label according to this mark on mattress border instead of manual measuring and marking to improve production
    7. Uses delta touch screen and plc
    8. Has lacking material protector
    9. Can set up suitable cutting speed and cut length on the touch screen
    10. Dot by plc to control the positioning and automatic cutting
    11. Can achieve several accurate dotting position
    12. Can realize automatic precise cutting
    13. Can cut different type of mattress borders
    14. Set the length of the buffer mechanism
  2. Specifications
    1. Max speed: 20 meters per minute (adjustable)
    2. Cutting thickness: 20 mm or less
    3. Cutting width: 0 to 460 mm, 0 to 650 mm (two different models)
    4. Cutting length: 0 to 10 meters
    5. Power: 0.95 to 1.05 kW
    6. Air pressure: 0.4 to 0.6 mpa
    7. Tolerance: 5 to 10 mm (according to material, cutting length, transport speed)
    8. Voltage: 220 V 1p 50 Hz
    9. Weight: 85 kgs
    10. Machine size: L650 x W750 x H390 mm
  3. Condition
    1. Ask for video
