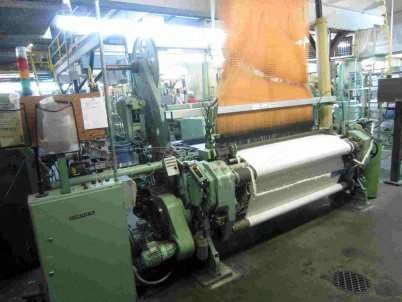

Description Overview Dornier model GTN8/S rapier weaving machine Width 1800 mm Year 1983 295 ppm 8 filling colors 22.5 in maximum cloth roll diameter 800 mm maximum warp beam head 8,448 harness lines 59.5 in maximum harness width 12.5 in standard repeat 142 standard sley 60 in maximum usable reed spread 43.7 in narrow usable reed spread Take-up and Let-off Each with mechanical take-up Top electric let-off Bottom mechanical let-off Jacquard and Weft Feeders Staubli model CX860 jacquard head, 1,880 hooks Tissue pick 8 Omega model Magnum 300 weft feeders Controls and Accessories Dornier control panel with push-button controls Trim cut-off with collection Staubli head operator control console
