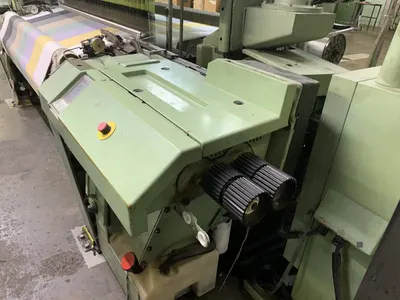

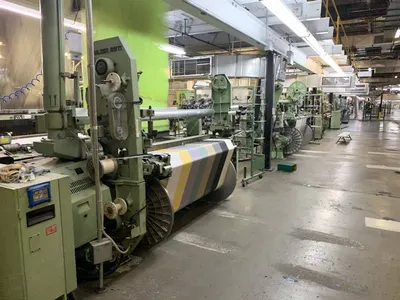

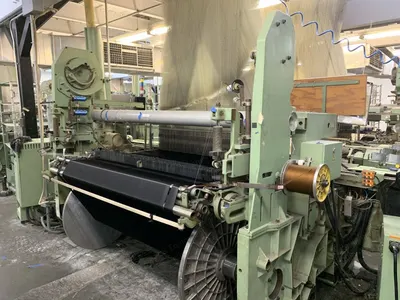

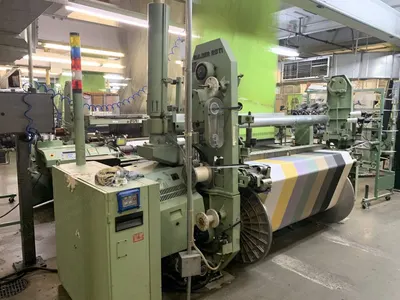

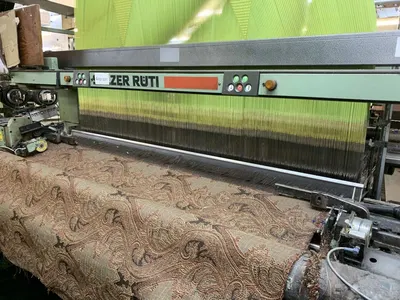

Sulzer Ruti, G6200 B170 N8J, 1995, Rapier Weaving Machine, 1700mm Width, Staubli CX960 Jacquard, 8 Colors

Sulzer Ruti, G6200 B170 N8J, 1995, Rapier Weaving Machine, 1700mm Width, Staubli CX960 Jacquard, 8 Colors

Description

  1. Overview
    1. Manufacturer: Sulzer Ruti
    2. Model: G6200 B170 N8J
    3. Machine type: Rapier weaving machine
    4. Year: 1995
    5. Width: 1700 mm
    6. Speed: 450 ppm
    7. Filling colors: 8
  2. Specifications
    1. Maximum cloth roll diameter: 22.5 in
    2. Maximum warp beam head: 800 mm
    3. Maximum harness width: 64.5 in
    4. Standard repeat: 25 in / 12.5 in
    5. Standard sley: 142
    6. Maximum usable reed spread: 65 in
    7. Maximum beam spread: 67 in
  3. Equipment And Features
    1. Electric take-up
    2. Top electric let-off
    3. Bottom electric let-off

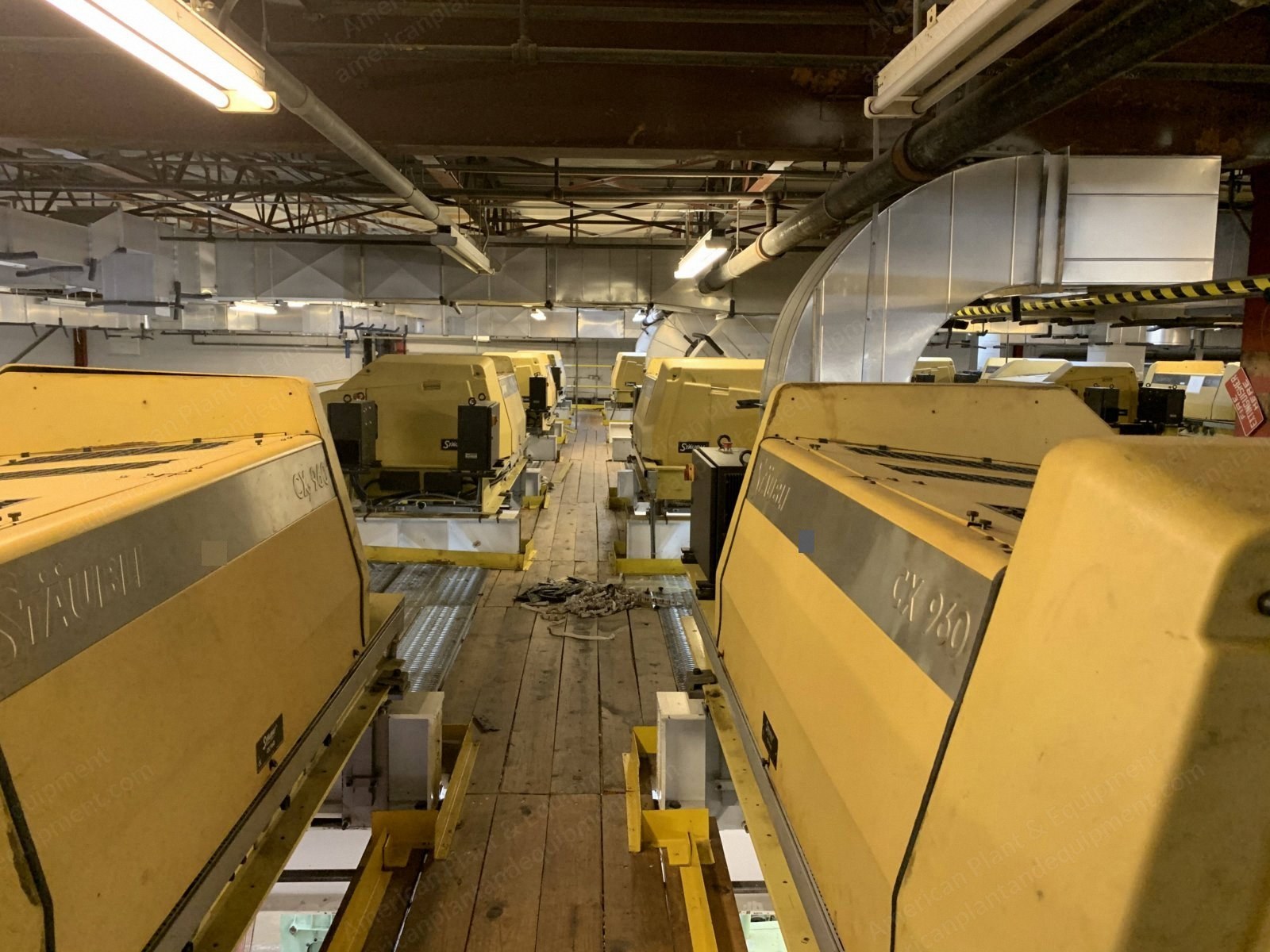

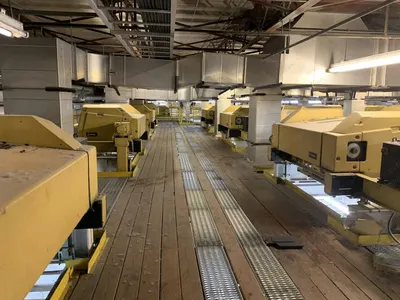

    4. Staubli model CX960 jacquard head with 3,760 hooks
    5. Tissue pick
    6. 8 Savi Tec automatic bobbin feeders
    7. Operator controls with digital readout

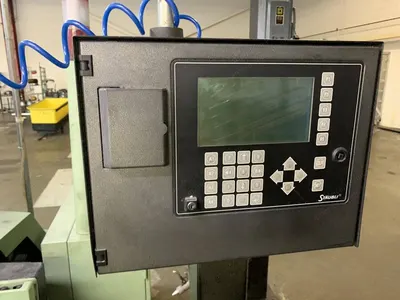

    8. Staubli head operator control console
    9. Assorted 16-position cradle racks
