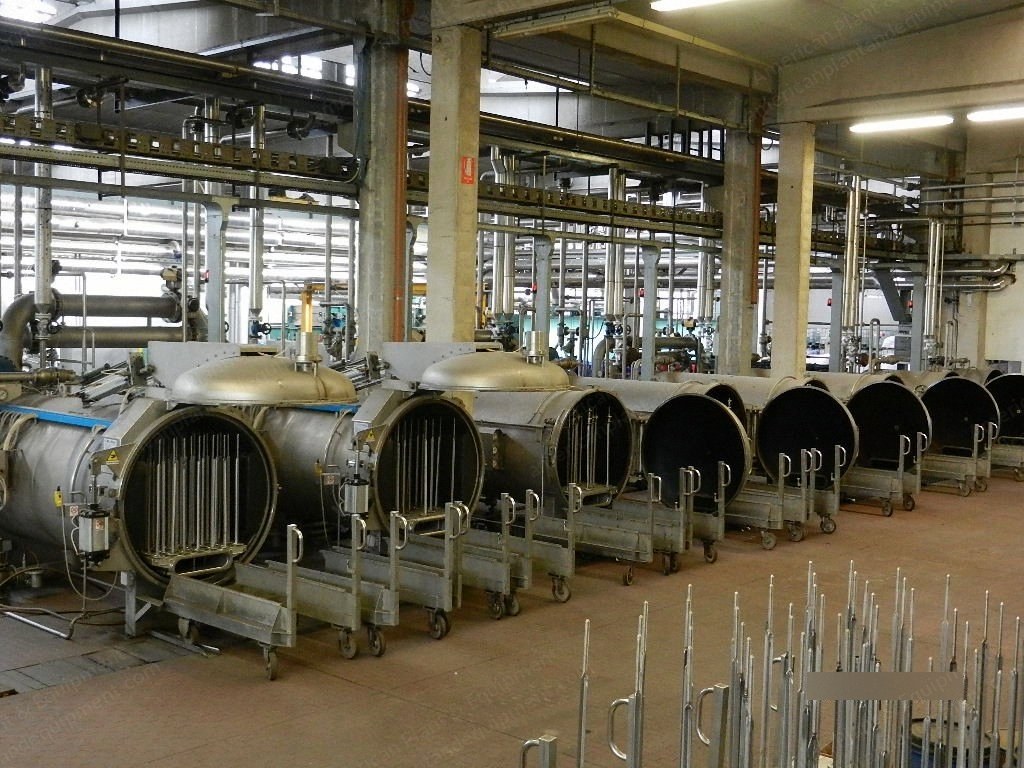

Flainox, Galvanin, Dettin, Yarn Dyeing Plant, 10 to 18 Tons per Day

Flainox, Galvanin, Dettin, Yarn Dyeing Plant, 10 to 18 Tons per Day

Description

  1. Overview
    1. Yarn dyeing plant
    2. Capacity approximately 15 tons per day on polyester
    3. Or approximately 10 tons per day on cotton, respectively 18 tons per day on acrylic
  2. Dyeing Machines

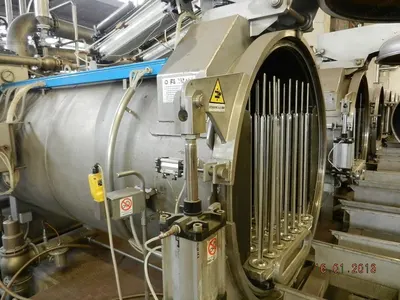

    1. Flainox ATR/OR/HT 100 kgs (item 001)
    2. Flainox ATR/OR/HT 250 kgs (item 002)
    3. Flainox ATR/OR/HT 600 kgs (item 003)
    4. Flainox ATR/OR/HT 600 kgs (item 004)
    5. Flainox ATR/OR/HT 600 kgs (item 005)
    6. Flainox ATR/OR/HT 600 kgs (item 006)
    7. Flainox ATR/OR/HT 600 kgs (item 007)
    8. Flainox ATR/OR/HT 600 kgs (item 008)
    9. With 53 carriers
    10. Dyeing machines 3/4, 5/6, and 7/8 can work matched and dye 1200 kgs
  3. Circulation Pumps
    1. Controlled by inverter
    2. Bi-directional turbo-propeller axial pumps
    3. Reversible, changing direction automatically with that of the motor, therefore does not require a reversing valve
    4. Completely constructed in stainless steel AISI 316/L
  4. Other Machines

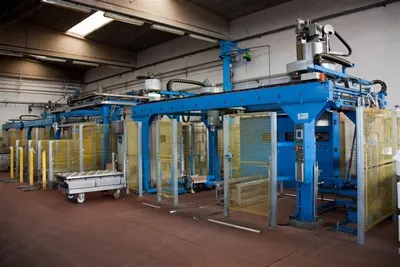

    1. Load cone robot Galvanin RBT CRG (item 009)
    2. Automatic hydroextractor Dettin DT40 (item 010)
    3. Automatic hydroextractor Galvanin RBT CSR (item 011)

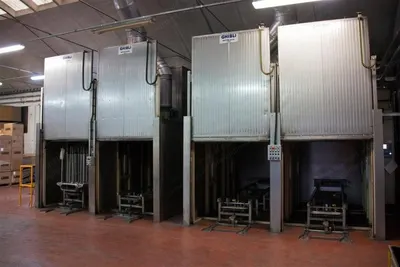

    4. Dryer Dettin AR22.75 (item 012)
    5. Dryer Dettin AR22.75 (item 013)
