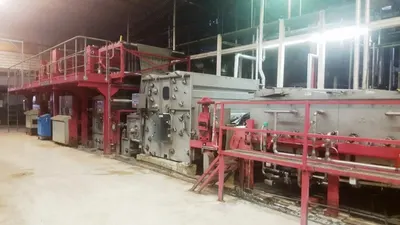

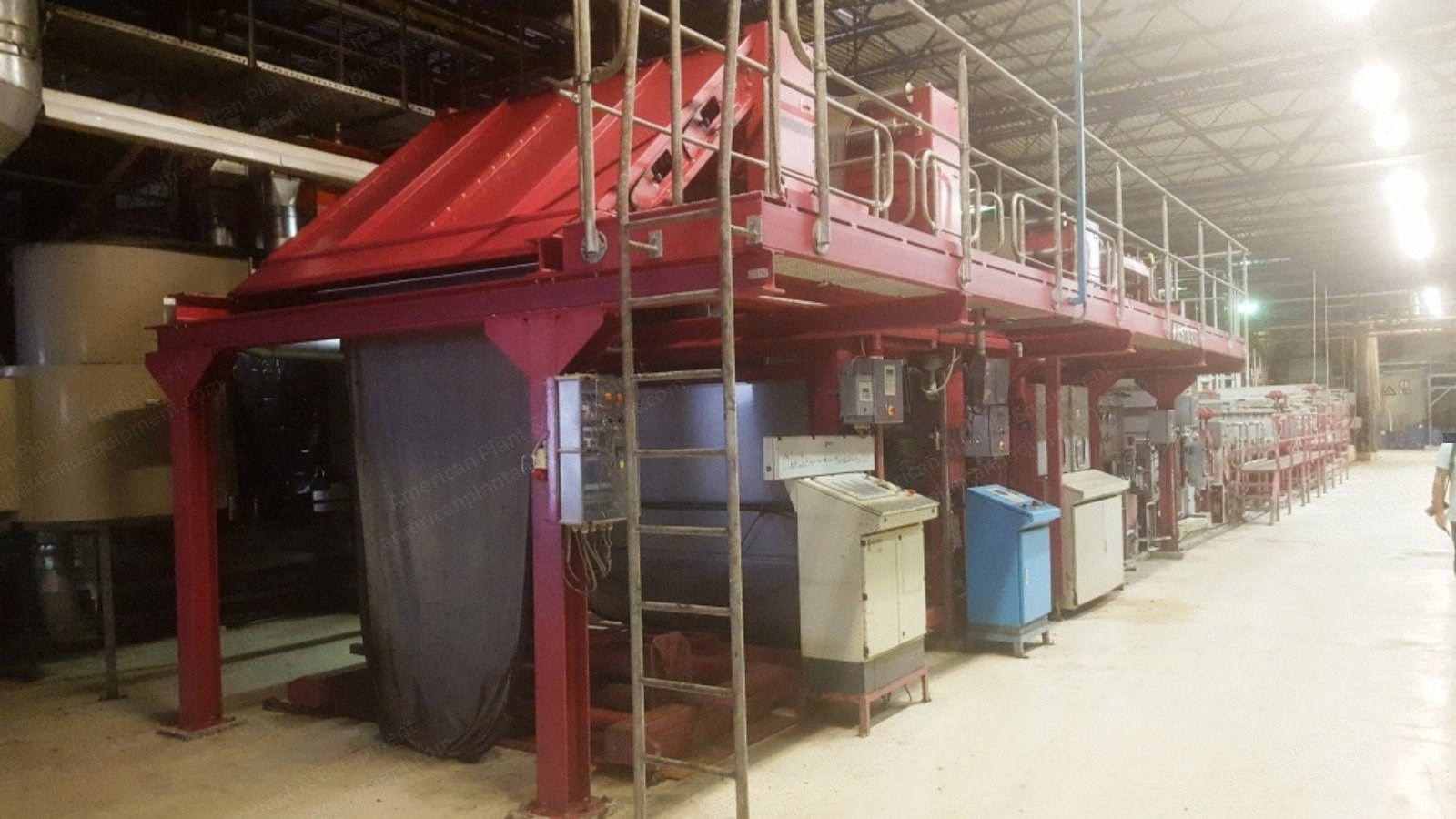

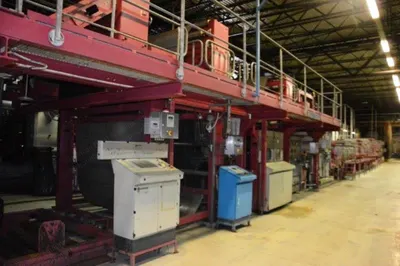

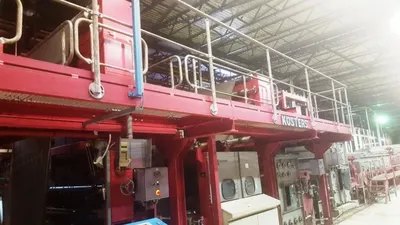

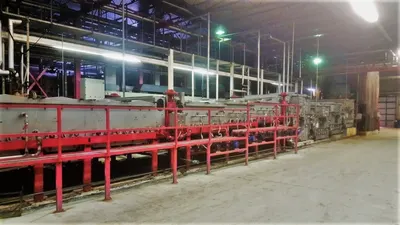

Kusters, Singeing & Mercerising Range, 2001, 2000mm Working Width, 2 Gas Burners, 16 Drying Cylinders

Kusters, Singeing & Mercerising Range, 2001, 2000mm Working Width, 2 Gas Burners, 16 Drying Cylinders

Description

  1. Overview
    1. Kusters singeing and mercerising range
    2. Year 2001
    3. Maximum working width 2000 mm

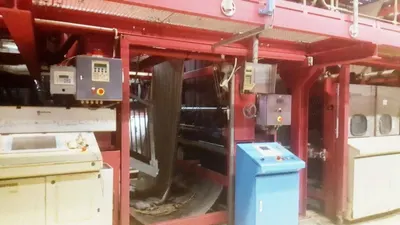

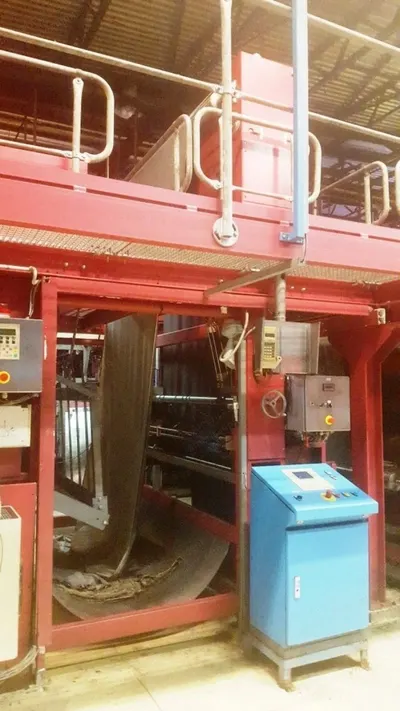

  2. Entrance Section

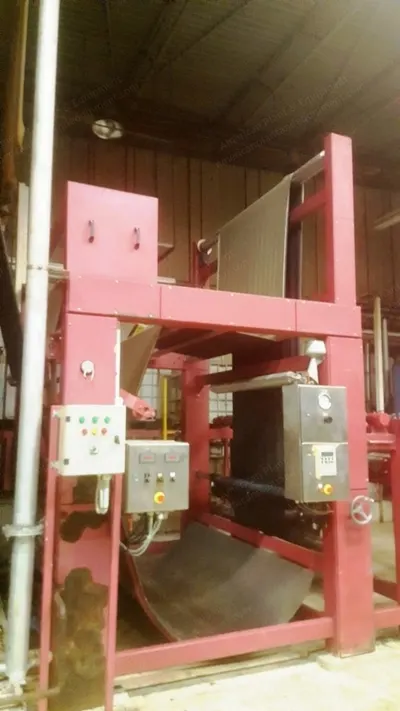

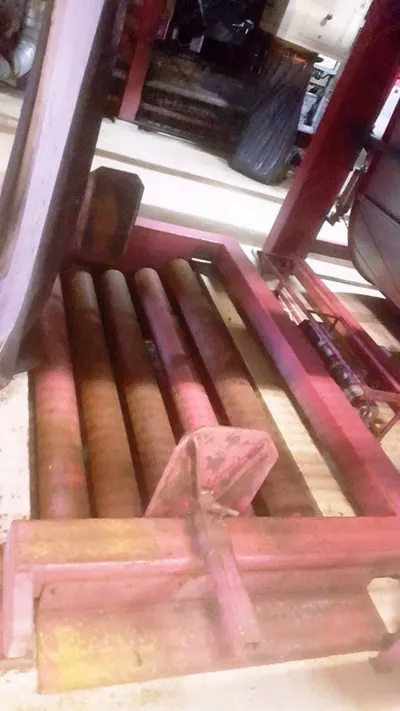

    1. Entrance frame with scray to take denim cloth rolls from the looms
    2. Conveyor feed
    3. High entrance frame
    4. Stainless steel j-box accumulator
    5. Erhardt and Leimer centre guiding system
  3. Brushing and Beating Unit
    1. Brushing rollers for face and reverse of fabric
    2. Beating rollers
    3. Extraction hoods and ducting

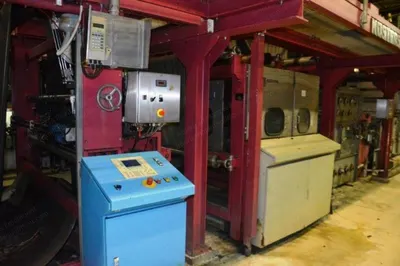

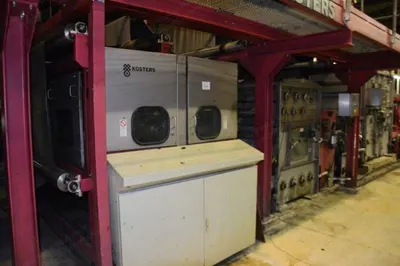

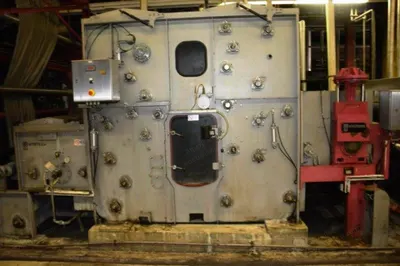

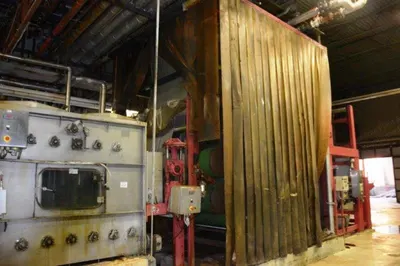

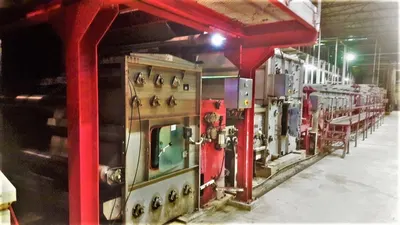

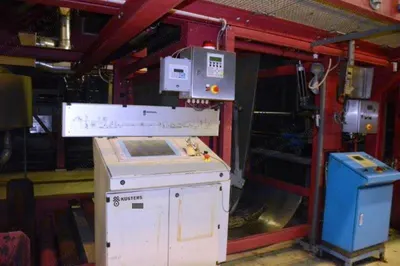

  4. Singeing Machine
    1. 2 gas fired burners, water cooled

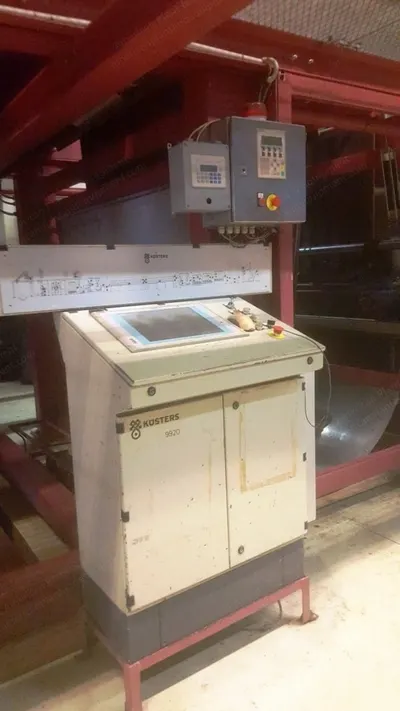

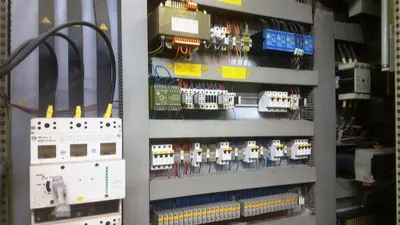

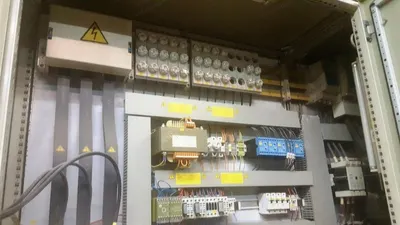

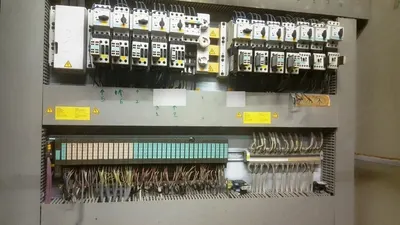

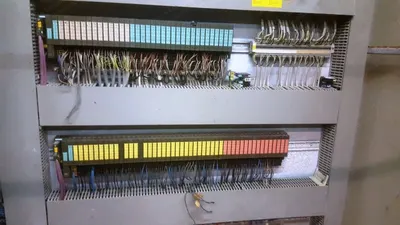

    2. Control system for machine speed, burner position, flame height, flame width, etc.
    3. Touch screen operation
  5. Brushing Unit
    1. Brushing and beating unit for brushing face and reverse of fabric
    2. Extraction hoods and ducting

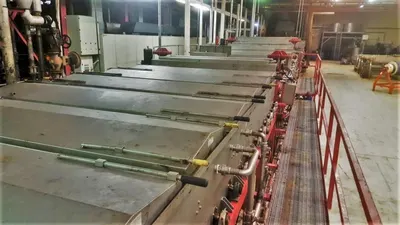

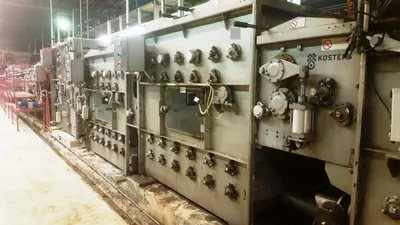

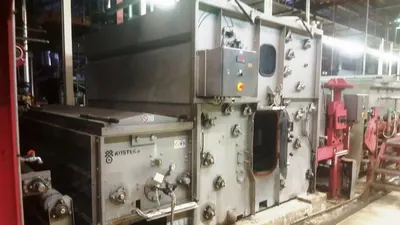

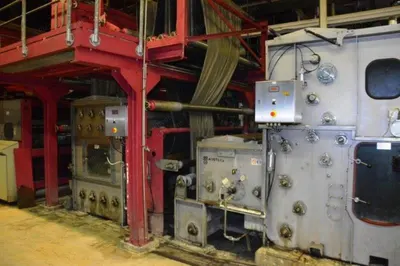

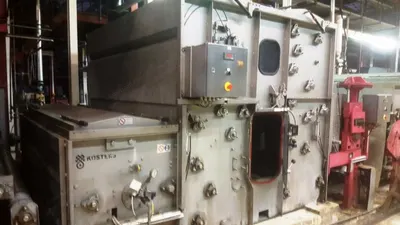

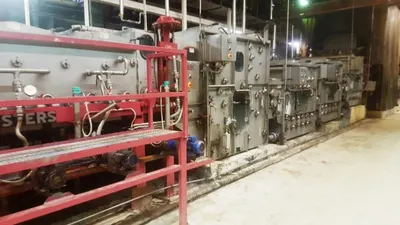

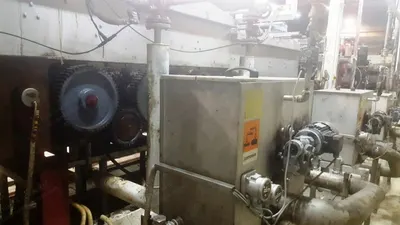

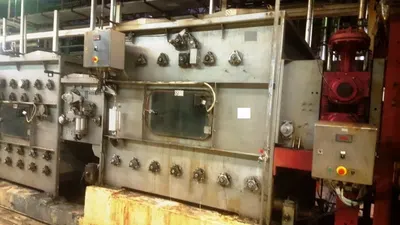

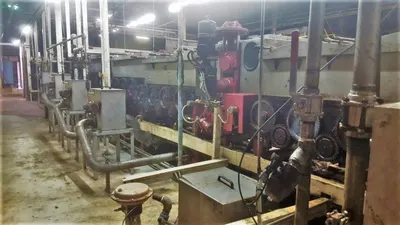

  6. Merceriser and Washing
    1. Chainless caustic impregnation section
    2. 26 chainless stretching cylinders and two padders
    3. Stabilising section
    4. 32 chainless stretching cylinders and one padder
    5. Neutralising tank
    6. Type turbo wash
    7. C 18m content
    8. Mangle
    9. 2 multi-roller wash tanks type 234-43
    10. Double strung
    11. 2 mangles type 222/53
    12. 1 multi-roller wash tank type 836/76
    13. C 18m content
    14. Mangle type 222/53

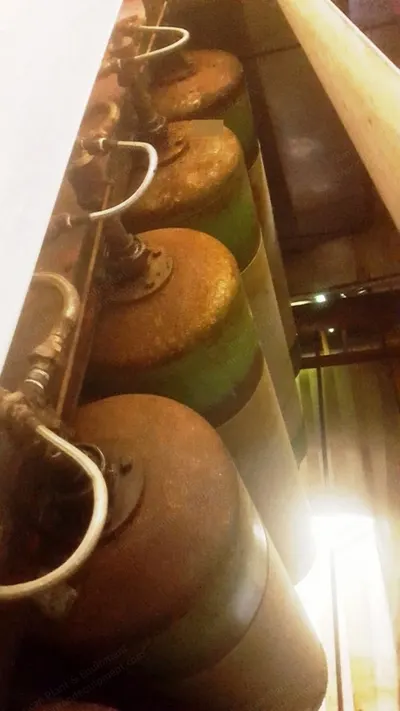

  7. Drying Section

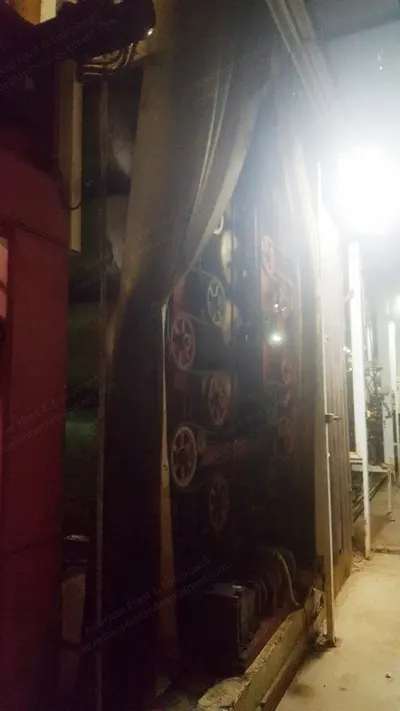

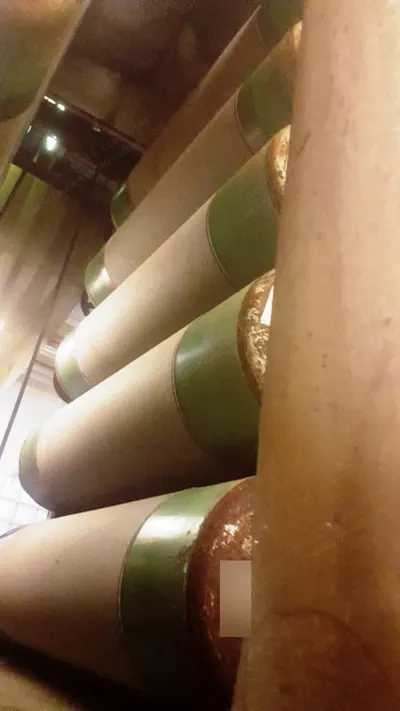

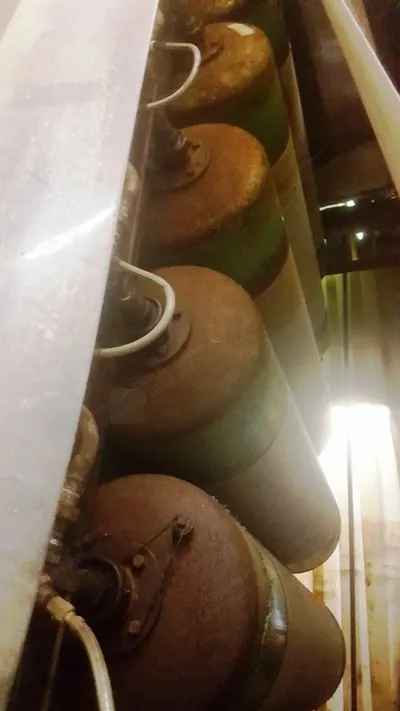

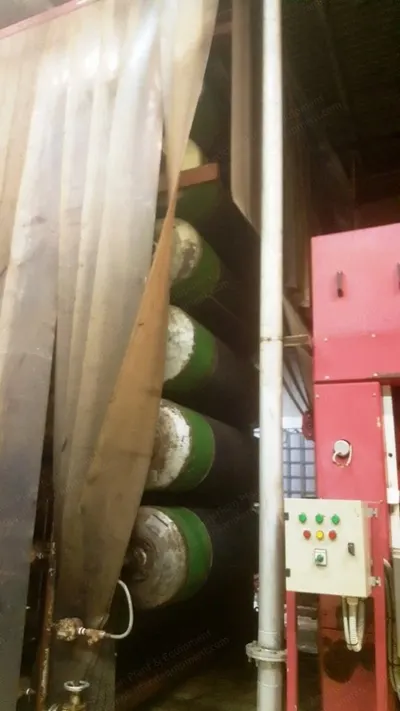

    1. 16 Wumag stainless steel steam heated drying cylinders
    2. In two stacks of 8
    3. 600 mm diameter

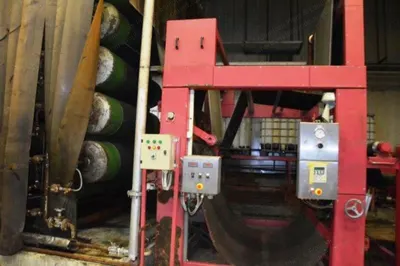

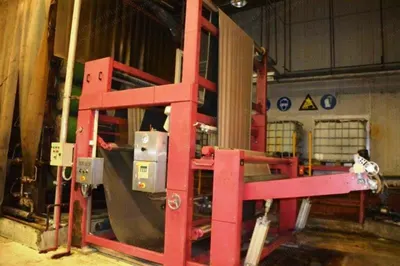

  8. Batching Section
    1. Stainless steel j-box accumulator
    2. Erhardt and Leimer centre guiding system
    3. Surface driven a-frame batching device
