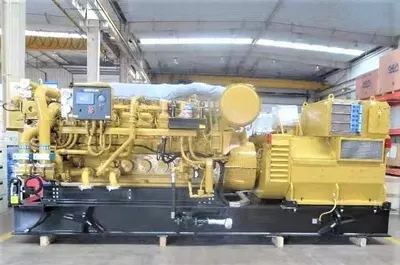

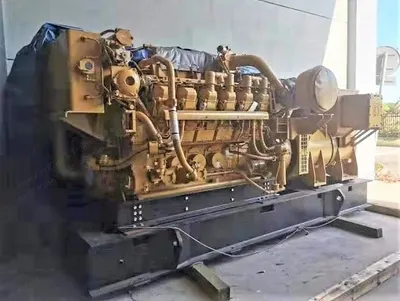

Caterpillar, 3516C, 2000 ekW, 690V, 60Hz, Offshore Generator Set

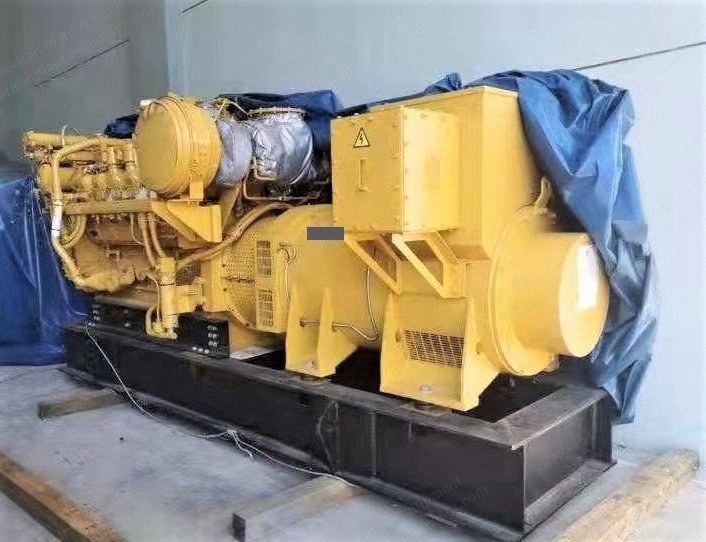

Caterpillar, 3516C, 2000 ekW, 690V, 60Hz, Offshore Generator Set

Description

  1. Overview
    1. 3516c dita marine main gensets
    2. 2000 ekw w/o fan, 690 v, 60 hz, 3 phases
  2. Engine Specifications
    1. Model: caterpillar 3516c
    2. Type: v-16, 4 cycle diesel
    3. Engine power (bkw): 2095 bkw
    4. Speed (rpm): 1800 rpm
    5. Rotation (from flywheel end): ccw
    6. Displacement (l): 78.09 l
    7. Bore (mm): 170
    8. Stroke (mm): 215
    9. Compression ratio: 14.7:1
    10. Bmep at 100% load (kpa): 1784
    11. Fuel consumption at 100% load (g/bkw-hr +/- 3%): 201
    12. Oil consumption (g/kw-hr): 0.548
    13. Governor: electronic
    14. Engine cooling system: scac
    15. Starting: air starting motor
    16. Max. allowable exhaust back pressure: 6.7 kpa
    17. Max. inlet air restriction: 6.2 kpa
    18. Engine weight, net dry (approx.): 8,029 kg
    19. Fuel injection: electronic fuel injectors
    20. Engine dimensions: l3185 x b2142 x h2130
    21. Fuel oil recommended: iso8217 dmx/dma (1.4 to 20 cst @ 38 °c)
    22. Oil change interval (hrs): 1000
    23. Lube oil recommended: cat deo sae 10w30 or 15w40
    24. Emission: marine imo tier ii compliance
  3. Generator Specifications
    1. Model: abb amg 0500ll04 daa
    2. Rated output: 2500 kva, 1800 rpm
    3. Voltage: 690 v, 60 hz, 3p, star
    4. Power factor: 0.8
    5. Duty: s1
    6. Construction: 2 rolling bearings, w/grease d-end locked, nde free
    7. Excitation: brushless, self-excitation
    8. Insulation: class h
    9. Temperature rise: class f
    10. Protection: ip23
    11. Excitation: pmg
    12. Cooling method: ic0a1
    13. Winding type: random
    14. Applicable standard: iec
    15. Generator weight net dry (approx.) kg: 6100 kg
    16. Voltage adjustment: +/- 5%
  4. Genset Specifications
    1. Total genset weight, net dry (approx.): 20000 kg
    2. Genset dimension (approx.) (l x w x h): 6100 x 2142 x 2507 mm
  5. Supply Scope
    1. Each unit includes the following consist unless specified
  6. Air Inlet System
    1. Separate circuit aftercooler core, corrosion resistant coated (air side)
    2. Air cleaner, regular duty
    3. Dual turbochargers, 152 mm (6) od straight connection, 152 mm
  7. Base Arrangement
    1. Engine and generator mounted on common base
    2. Vibration isolators (ship loose)
  8. Control System
    1. Dual caterpillar a3 electronic engine control, lh, with electronic unit injector fuel system
    2. Main and back-up 24 v dc to be supplied by yard
    3. Motorized potentiometer for speed adjustment/shiploose
  9. Cooling System - Scac Circuit
    1. Oil cooler
    2. Ht thermostats and housing, full open temperature 92 °c (198 °f)
    3. Lt thermostats and housing
    4. Jacket water pump, gear driven, centrifugal (ht)
    5. Auxiliary fresh water pump for aftercooler (lt)
    6. Jacket water heater, 2 x 6 kw, 440 v / 2 x 6 kw, 440 v
    7. Remote cooling radiator, driven by 3p ac motor, local supply, loose
    8. Jacket water temp gauge
  10. Exhaust System
    1. Dry gas-tight exhaust manifolds with heat shield
    2. Dual turbochargers with watercooled bearings with heat shields
    3. Exhaust outlet, vertical, 12" round flanged outlet
    4. Flange and exhaust expander to be supplied by yard, 12" to 16"
  11. Fuel System
    1. Electronically controlled unit injectors
    2. Duplex fuel filter
    3. Fuel priming pump, manual
    4. Fuel transfer pump
    5. Water separator, shiploose
    6. Flexible fuel lines for inlet & outlet, shipped loose
  12. Lube System
    1. Crankcase breather, top mounted
    2. Duplex lube oil filter
    3. Lube oil pump, gear driven
    4. Lube oil cooler
    5. Oil sump
    6. Oil filler and dipstick, lh
    7. Manual sump pump
    8. Lub oil pressure gauge
  13. Starting System
    1. Air starting motor with connection hose
    2. Air strainer
    3. Reducing pressure valve (3000 kpa to 690~1034 kpa)
    4. Safe valve and low-pressure alarm switch are included
  14. Generator And Generator Attachments
    1. Double anti-friction bearings, brush-less, self-excitation generators
    2. Digital automatic voltage regulator
    3. Space heater, 500 w / 230 v
    4. Embedded winding temperature detectors, 2 x 3 pt100
    5. Bearing temperature detector, 1 x 2 pt100
    6. Pt100 6 pcs of differential protection ct
    7. Voltage adjust switch, shipped loose
    8. Mct module connection
  15. Protection System
    1. A3 electronic engine control (ecm) monitoring system to provide customer programmable engine deration strategies to protect against adverse operating conditions, lh
    2. Emergency stop push button (located on electronic instrument panel)
    3. Emergency start push button (located on electronic instrument panel)
    4. Safety shutoff protection
    5. Oil pressure and water temperature
    6. Overspeed shutoff
    7. Explosion relief valve, for crankcase protection
  16. Instrumentation
    1. Engine local instrument panel
    2. Same service side for all models
    3. Engine 4-position switch (off/on/auto/start): local start, local stop, cool down, remote/local control
    4. Alarm horn
    5. Overspeed shutdown notification light
    6. Emergency stop notification light
    7. Temp for all the cylinders, local display
    8. Marine power display: digital display of data for engine oil pressure, engine water temperature, fuel pressure, system dc voltage, air inlet restriction, rh & lh exhaust temperature, fuel filter differential, oil filter differential, service meter, engine speed, instantaneous fuel consumption, total fuel consumed, engine oil temperature, air intake manifold temperature
    9. Alarm and shutdown indication: battery voltage warning, engine jacket water temp high warning, engine oil pressure low warning, air filter diff. pressure warning, exhaust temperature warning, oil filter differential pressure warning, fuel filter differential pressure warning, aftercooler water temp high warning
  17. Flywheels & Flywheel Housings
    1. Flywheel, sae no. 00, 183 teeth
    2. Flywheel housing, sae no. 00
    3. Sae standard rotation: ccw
  18. General
    1. Vibration damper and guard
    2. Paint, caterpillar yellow
    3. Lifting eyes
    4. Manual engine barring group
  19. Packing
    1. Plastic shrink wrap protection
  20. Documents
    1. Parts book, one cd, english
    2. Operation & maintenance manual, one cd, english
    3. Working documents, one cd, english
  21. Class And Certification
    1. Ccs engine certificate
    2. Ccs generator certificate
    3. Imo ccs eiapp certificate (tier ii)
    4. Tva report
  22. Fuel Consumption Basis
    1. Fuel consumption is based on standard fuel gravity of 35 degrees api having a lhv of 42,780 kj/kg when used at 29 °c where the density is 838.9 g/l
  23. Environmental Condition
    1. Ambient temperature: 45 °c
    2. Relative humidity: 60%
    3. Atmosphere pressure: 0.1 mpa
