Cummins, QSK60G, 2009 to 2012, 1100 kW, 50/60 Hz, Natural Gas Generator Sets

Cummins, QSK60G, 2009 to 2012, 1100 kW, 50/60 Hz, Natural Gas Generator Sets

Description

  1. Overview
    1. Twenty Cummins QSK60 V16 natural gas generator sets.
    2. Rated at 1100 kW / 1375 kVA continuous, 50 Hz, 400 V, 1500 RPM.
    3. Year of manufacture: 2009 to 2012.
    4. Hours ranging from 21,400 to 36,500 since new.
    5. ISO 20 ft containerized.
    6. Can be converted to 60 Hz: 1300 kW / 1625 kVA continuous, 60 Hz, 480 V, 1800 RPM.
  2. Engine Specifications
    1. Type: Natural gas, spark-ignition.
    2. Configuration: 16 cylinder, 60° V type, 4 valves per cylinder.
    3. Bore x stroke: 159 mm x 190 mm.
    4. Capacity: 60.3 litres.
    5. BMEP: 16 bar.
    6. Aspiration: Turbocharged and low temperature aftercooled.
    7. RPM: 1500 or 1800.
    8. Gas supply pressure: 0.2 to 6 bar.
    9. Minimum methane index: 61 for 50 Hz / 69 for 60 Hz.
    10. NOx mg/nm³: 489 to 473.
  3. Generator Models
    1. Stamford PE734C2 or Leroy Somer LSA50.2VL10.

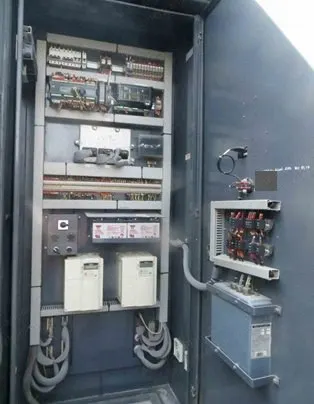

  4. Control and Breaker
    1. Control: Generator module DEIF.
    2. Breaker: 2500 amp.
  5. Condition and
    1. Units are used and available as a set of twenty.
    2. Location: Not specified.
